BALLUFF

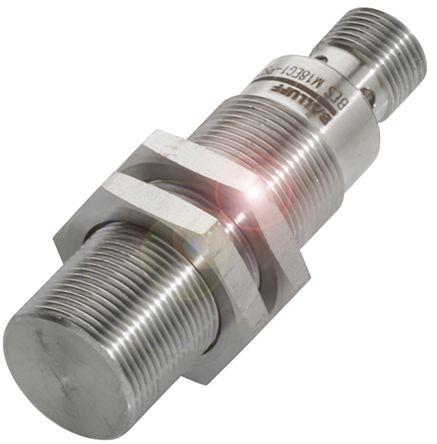

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Sensor Input | :Inductive |
| Sensing Range Max | :10mm |
| Supply Voltage DC Min | :10V |
| Supply Voltage DC Max | :30V |
| Approval Bodies | :CE |
| Approval Category | :UL Recognised |
| 机身长度 | :63.5mm |
| 联系配置 | :1NO |
| Frequency Response Max | :200Hz |
| Frequency Response Range | :200Hz |
| IP / NEMA Rating | :IP67 |
| Load Current Max | :200mA |
| 材质 | :Stainless Steel |
| 安装类型 | :Quasi Flush Mounting |
| 工作频率 | :200Hz |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-25°C |
| 工作电压 | :24VDC |
| 响应时间 | :35ms |
| Sensing Distance Max | :10mm |
| 检测范围 | :0mm to 10mm |
| Sensor Output1 | :PNP |
| Supply Voltage Range DC | :10V to 30V |
| 螺纹尺寸 | :M18 |
| Weight (kg) | 0.074 |
| Tariff No. | 85365011 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
