EPCOS

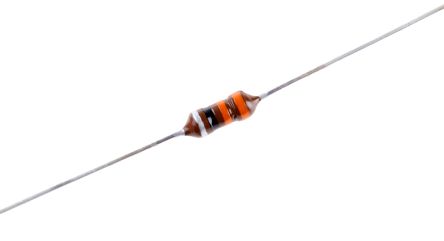

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 引线间距 | Not Required mm |
| 弧度硬化 | No |
| 故障率 | Not Required |
| 公差（ +或 - ） | 10% |
| 封装 | Tape and Reel |
| 类型 | RF Choke |
| 阻抗 | Not Required ohm |
| 电感 | 33 uH |
| 测试频率 | 0.1 MHz |
| 芯材 | Ferrite |
| 军用标准 | Not Required |
| 产品长度（mm ） | 11.5 mm |
| 产品厚度（毫米） | Not Required mm |
| 产品高度（mm ） | Not Required mm |
| 技术 | Bobbin Core |
| 引线类型 | Axial |
| 品质因数 | 55 |
| 自谐振频率 | 9 MHz |
| 直流电流 | 500 mA |
| 直流电阻 | 0.92 ohm |
| 产品直径（mm ） | 4 mm |
| 产品范围 | :EPCOS - B78108S BC Series |
| Inductance Tolerance | :± 10% |
| DC Resistance Max | :0.92ohm |
| DC Current Rating | :500mA |
| Self Resonant Frequency Min | :9MHz |
| Case Dimensions | :4mm x 9.2mm |
| SVHC | :No SVHC (20-Jun-2013) |
| 额定电流 | :500mA |
| Inductor Case Style | :Axial Leaded |
| No. of Pins | :2 |
| Q Factor | :55 |
| Q Test Frequency | :2.52MHz |
| Reel Quantity | :5000 |
| Weight (kg) | 0.00038 |
| Tariff No. | 85045095 |
