Epcos

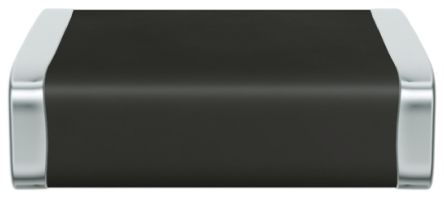

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 电容 | 24000pF |
| 钳位电流 | 10A |
| 钳位电压 | 25V |
| 深度 | 5mm |
| 外形尺寸 | 5.7 x 5 x 2.5mm |
| 能量 | 3.6J |
| 长度 | 5.7mm |
| 最大交流电压额定值 | 6V |
| 最大直流额定电压 | 8V |
| 最大浪涌电流 | 1200A |
| 封装/外壳 | 2220 |
| 变阻器电压 | 8.8 → 13.2V |
| 系列 | :MLV CT |
| Varistor Type | :Multilayer Varistor (MLV) |
| Peak Surge Current @ 8/20µs | :1.2kA |
| Varistor Case | :2220 [5650 Metric] |
| Clamping Voltage Vc Max | :25V |
| Voltage Rating V DC | :8V |
| Voltage Rating V AC | :6V |
| Operating Temperature Min | :-55°C |
| Operating Temperature Max | :125°C |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| 工作温度范围 | :-55°C to +125°C |
| 封装 | :Cut Tape |
| Weight (kg) | 0.2 |
| Tariff No. | 85332900 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
