EPCOS

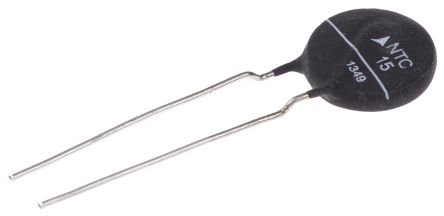

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Inrush Current Limiters |
| RoHS | RoHS Compliant |
| 额定电流 | 3 A |
| 电压 | 110 VAC, 230 VAC |
| 电阻 | 15 Ohms |
| 容差 | 20 % |
| 表壳直径 | 15 mm |
| 表壳宽度 | 7 mm |
| 系列 | B57237S |
| 工作温度范围 | - 55 C to + 170 C |
| 外形尺寸 | 15 mm Dia. x 7 mm W |
| 引线直径 | 0.8 mm |
| 引线间距 | 7.5 mm |
| 封装 | Bulk |
| 额定功率 | 3.1 W |
| 工厂包装数量 | 500 |
| 类型 | NTC Thermistors for Inrush Current Limiting |
| 零件号别名 | B57237S0150M000 |
| 电阻@ 25℃ | 15 |
| 端子说明 | 0.8mm dia. x 25mm Y kink Lead |
| 欧盟RoHS指令 | Compliant |
| 产品直径 | 15(Max) |
| 的电阻容差@ 25C百分比 | ±20 |
| 产品厚度 | 7(Max) |
| 安装 | Through Hole |
| 端子数 | 2 |
| 敏感指数 | 3000 |
| Seated Plane Height | 22(Max) |
| Thermal Time Constant | 90 |
| 应用 | Soft Start Motor, Switching Power Supply |
| 深度 | 7mm |
| 最大额定功率 | 3100mW |
| 电阻@ 25 °C | 15Ω |
| 温度系数类型 | NTC |
| 热时间常数 | 90s |
| RoHS指令 | Compliant |
| 热敏电阻类型 | :NTC |
| Thermistor Tolerance | :± 20% |
| Beta Value (K) | :3000K |
| Thermistor Case Style | :Radial Leaded |
| No. of Pins | :2 |
| Operating Temperature Min | :-55°C |
| Operating Temperature Max | :170°C |
| SVHC | :No SVHC (20-Jun-2013) |
| Beta Value Lower Limit Temperature | :25°C |
| 主体直径 | :15mm |
| Current Max | :3A |
| Current Temperature | :25°C |
| 引线长度 | :25mm |
| Operating Voltage Range | :265Vrms |
| Resistance Temperature | :25°C |
| 电阻公差 | :± 20% |
| Resistance Tolerance + | :20% |
| Resistance Tolerance - | :20% |
| Temperature Upper Limit Beta Value | :100°C |
| Weight (kg) | 0.002 |
| Tariff No. | 85332100 |
| 直径 | 0.59" (15mm) |
| 电流 - 稳态最大值 | 3A |
| R @ 25 °C | 15 Ohm |
| 认证 | UL |
| 标准包装 | 500 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
