Emerson / Astec Power

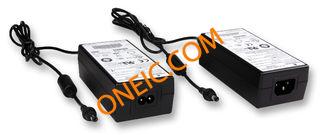

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 风格 | Desktop Adapter |
| Maximum Input Current | 0.5(rms)@115VAC|0.25@230VAC |
| 安装 | Desktop |
| Efficiency | 84(Typ) |
| 输出连接器类型 | Cylindrical Female |
| Package Width | 61 |
| 类型 | AC-DC Regulated |
| 输入连接类型 | IEC Male |
| 机构认证 | CB/CCC/CE/cUL/EMC/LVD/TUV/UL |
| Maximum Output Power | 40 |
| 输出类型 | Fixed |
| 保护功能 | Overload|Short Circuit|Over Voltage |
| 输入频率 | 47 to 63 |
| 欧盟RoHS指令 | Compliant |
| 最低工作温度 | 0 |
| 电源指示灯 | Yes |
| 输出数 | 1 |
| 最高工作温度 | 40 |
| 纹波及噪音 | 240mV |
| 输出接口极性 | Center Positive |
| Package Length | 124 |
| 输入电压 | 90 to 264 |
| Typical Inrush Current | 50(Max)@230VAC |
| Typical Hold-Up Time | 10@115VAC |
| Package Height | 39.5 |
| 输出电压 | 24 |
| Maximum Output Current | 1.67 |
| 适配器颜色 | Black |
| Output Connector Diameters | 2.5x5.5 |
| 电缆长度 | 1219mm |
| 深度 | 39.5mm |
| 效率 | 84% |
| 输入连接器 | IEC320-C14 |
| 输入电压 | 127 → 300 V dc, 90 → 264 V ac |
| 长度 | 124mm |
| 线路调整 | ±5% |
| 负载调整率 | ±5% |
| 最高温度 | +40°C |
| 最低气温 | 0°C |
| 平均无故障时间 | 550000h |
| 输出接口 | 2.5 x 5.5 mm Centre Positive |
| 输出电流 | 1.67A |
| 输出电压 | 24V dc |
| 插头类型 | 3-Pin UK, Type F - Schuko Plug |
| 额定功率 | 40W |
| 纹波和噪声 | 240mV Pk-Pk |
| 重量 | 0.25kg |
| 宽度 | 61mm |
| RoHS指令 | Compliant |
| 输入电压范围 | 90 VAC to 264 VAC, 127 VDC to 300 VDC |
| 输出电压通道1 | 24 V |
| 产品种类 | Desktop AC Adapters |
| 商用/医用 | Commercial, Medical |
| 地区 | Universal |
| 直流输出电线长度 | 1.2 m |
| 安装风格 | Desktop |
| 输出电流通道1 | 1.67 A |
| 直流输出连接器 | 2.5 mm Barrel Plug |
| 额定输出功率 | 40 W |
| 随附/要求 | Required |
| RoHS | RoHS Compliant |
| Power Supply Output Type | :Fixed |
| Input Voltage VAC | :90V to 264V |
| No. of Outputs | :1 |
| Output Voltage Nom. | :24V |
| Output Current Max | :1.67A |
| Output Power Max | :40W |
| Approvals / Standards | :EN 55011, EN 60601 |
| SVHC | :No SVHC (20-Jun-2013) |
| 应用范围 | :Medical |
| Weight (kg) | 0.25 |
| Tariff No. | 85044082 |
| Weight (g): | 234.00000 |
