B&K Precision

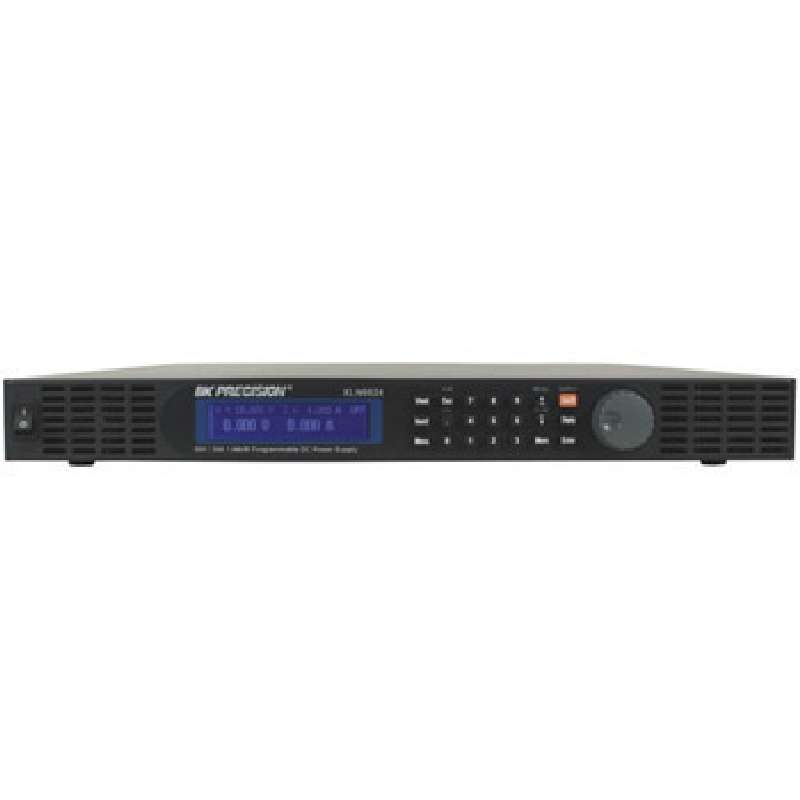

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 尺寸/尺寸 | 18.110" L x 16.535" W x 1.740" H (460.00mm x 420.00mm x 44.20mm) |
| 输出数 | 1 |
| 显示器类型 | LCD |
| 流 - 线路 | 10.4mA |
| 产品特点 | Memory, Programmable, RS485 and USB Interface |
| 重量 | 20 lbs (9.1kg) |
| 字符数 | 4 (2) |
| 电压 - 输出 | 5 ~ 300VDC |
| 稳压 - 负载 | 32mV |
| 电流 - 输出 | 0.02 ~ 5.2A |
| 功率（瓦特） | 1560W |
| 电压 - 电源 | 100 ~ 120VAC |
| 标准包装 | 1 |
| 纹波 | 25mVrms, 150mVpp |
| 电流调节 - 负载 | 20.8mA |
| 类型 | Bench (AC to DC) |
| 稳压 - 线路 | 32mV |
| 精确度 - 伏特表; | 0.05% + 150mV, 0.1% + 15.6mA |
| 输出电压通道1 | 5 V to 300 V |
| 输出电流通道1 | 0.02 A to 5.2 A |
| AC电源电压 | 100 V to 240 V |
| 电缆类型 | Detachable Power Cord Included |
| RoHS | RoHS Compliant |
| RoHS指令 | Lead free / RoHS compliant by exemption |
| Brand/Series | XLNSeries |
| Current,Output | 0.02-5.2A |
| NumberofOutputs | 1 |
| Power,Output | 1560W |
| Voltage,Output | 5-300V |
| 系列 | XLN |
| 产品类型 | Dc Power Supply |
| 外形尺寸 | 16.5 x 1.74 x 18.1in |
| Brand Name | BK Precision |
| 宽度 | 1.74in |
| 电源类型 | Digital |
| Output Current Rating | 0.02 to 5.2A |
| 包括 | User Manual, Power Cord, Rackmount Kit, Test Report & Certificate of Calibration, Terminal Blocks for Output Connectors |
| Input Voltage Rating | 100 to 240V ac |
| 长度 | 16.5in |
| 功耗 | 1950VA |
| 额定输出电压 | 5 to 300V dc |
| 最低工作温度 | 0°C |
| Protection Features | Over Voltage Protection, Over Temperature Protection, Over Power Protection, Over Current Protection, FoldBack Protection Mode |
| 安装类型 | Surface Mount |
| 身高 | 18.1in |
| 最高工作温度 | +40°C |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
