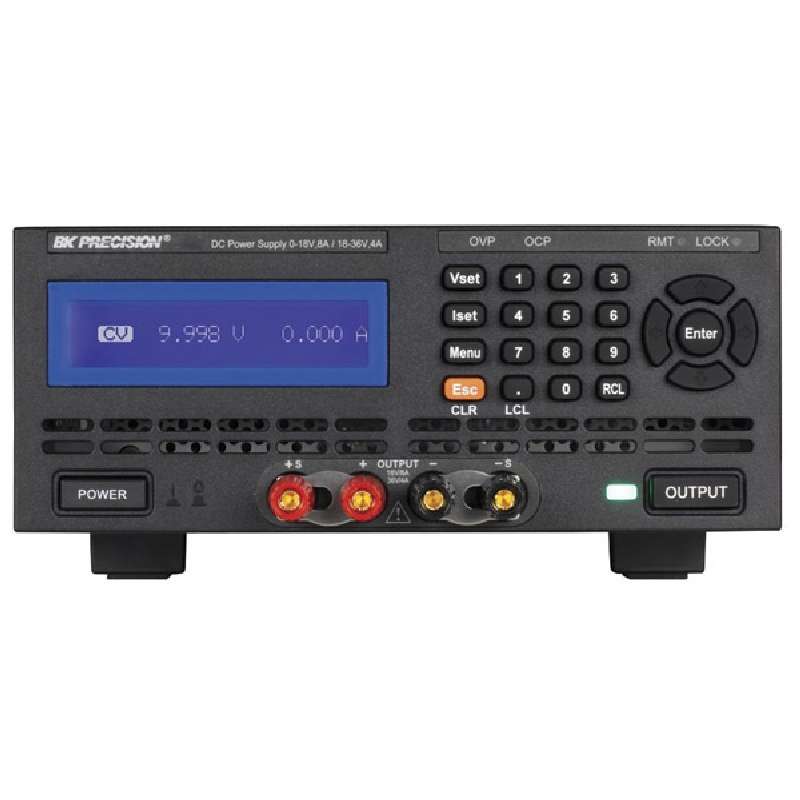

B&K Precision
所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 尺寸/尺寸 | 16.339" L x 5.138" W x 3.425" H (415.00mm x 210.00mm x 130.50mm) |
| 输出数 | 1 |
| 显示器类型 | LCD |
| 流 - 线路 | 0.01% + 250µA |
| 产品特点 | Memory, Programmable, Tracking, USB Interface |
| 重量 | 24 lbs (10.9kg) |
| 电压 - 输出 | 0 ~ 70VDC |
| 稳压 - 负载 | 0.01% + 1mV |
| 电流 - 输出 | 0 ~ 6A |
| 功率（瓦特） | 210W |
| 电压 - 电源 | 115VAC, 230VAC |
| 标准包装 | 1 |
| 纹波 | 5mV p-p, 0.5mV rms |
| 电流调节 - 负载 | 0.01% + 250µA |
| 稳压 - 线路 | 0.01% + 1mV |
| 类型 | Bench (AC to DC) |
| 其他名称 | BK9183 |
| 输出电压通道1 | 0 V to 70 V |
| 输出电流通道1 | 3 A |
| 系列 | 9180 |
| AC电源电压 | For B&K Precision products requiring AC input, please consult the accompanying User Manual before plugging the unit into mains power. Most products are configured for US mains/110VAC input but have a selectable input for 220VAC input. In some cases this may require a fuse change. |
| 电缆类型 | North American Power Cord Included |
| 单位重量 | 29 lbs |
| 输入电压 | 115 VAC, 230 VAC |
| RoHS | RoHS Compliant |
| Brand/Series | 9180Series |
| Current,Output | 0-6A |
| NumberofOutputs | 1 |
| Power,Output | 210W |
| Voltage,Output | 0-70V |
| 产品类型 | Dc Power Supply |
| 外形尺寸 | 8.3 x 5.1 x 16.3in |
| Brand Name | BK Precision |
| 宽度 | 5.1in |
| 电源类型 | Digital |
| Output Current Rating | 0 to 3|0 to 6A |
| 包括 | User Manual, AC Power Cord, USB Cable, Line Fuse, Certificate of Calibration and Test Report |
| Input Voltage Rating | 115/230V ac |
| 长度 | 8.3in |
| 功耗 | 510VA |
| 额定输出电压 | 0 to 70|0 to 35V dc |
| 最低工作温度 | 0°C |
| Protection Features | Over Voltage Protection, Over Current Protection |
| 安装类型 | Surface Mount |
| 身高 | 16.3in |
| 最高工作温度 | +40°C |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
