B&K Precision

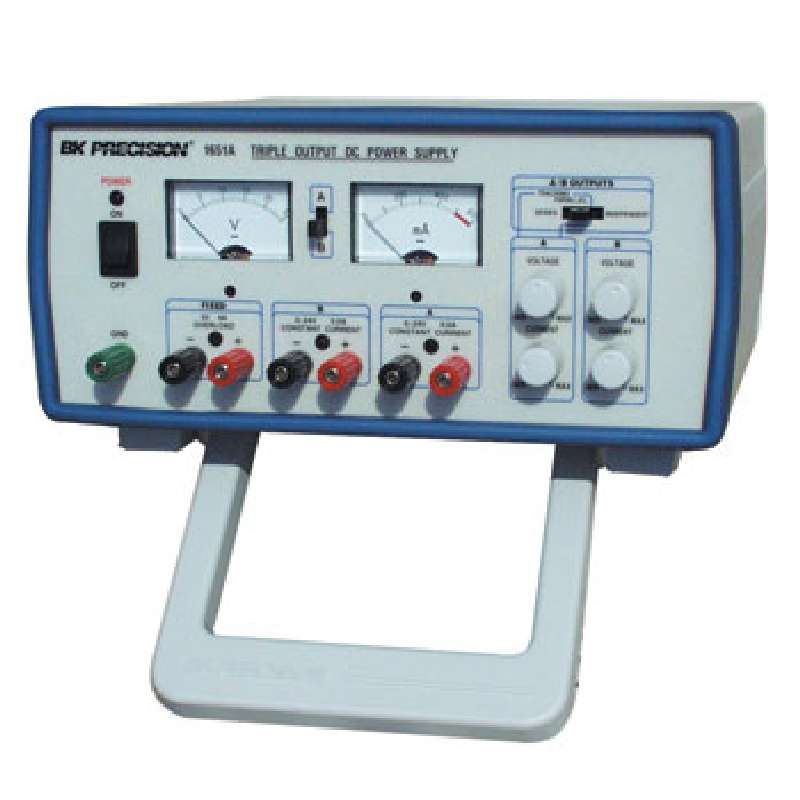

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 尺寸/尺寸 | 10.975" L x 11.750" W x 5.500" H (278.77mm x 298.45mm x 139.70mm) |
| 输出数 | 3 |
| 显示器类型 | Analog |
| 流 - 线路 | 0.2% + 6mA |
| 产品特点 | Tracking |
| 重量 | 11 lbs (5kg) |
| 字符数 | 2 |
| 电压 - 输出 | 0 ~ 24VDC, 0 ~ 24VDC, 5VDC |
| 稳压 - 负载 | 0.01% + 3mV |
| 电流 - 输出 | 0 ~ 0.5A, 0 ~ 0.5A, 4A |
| 电压 - 电源 | 108 ~ 132VAC |
| 标准包装 | 1 |
| 纹波 | 1mV rms |
| 电流调节 - 负载 | 0.2% + 3µA |
| 稳压 - 线路 | 0.01% + 3mV |
| 类型 | Bench (AC to DC) |
| 其他名称 | BK1651A |
| 精确度 - 伏特表; | 2.5% of Full Scale |
| 输出电流通道2 | 500 mA |
| 输出电压通道1 | 0 VDC to 24 VDC |
| 产品种类 | Bench Top Power Supplies |
| 输出电压通道3 | 5 VDC |
| 输出电压通道2点12 V | 0 VDC to 24 VDC |
| 电缆类型 | North American Power Cord Included |
| 单位重量 | 17 lbs |
| 输出电流通道3 | 4 A |
| 输入电压 | 120 VAC, 220 VAC |
| RoHS | RoHS Compliant By Exemption |
| 零件号别名 | EXD |
| 输出电流通道1 | 500 mA |
| 系列 | 1600 |
| 产品类型 | Dc Power Supply |
| 宽度 | 11.75in |
| 外形尺寸 | 5.5 x 11.75 x 10.97in |
| Brand Name | BK Precision |
| 电源类型 | Analog |
| Output Current Rating | 0 to 500 mA|4 A |
| 包括 | 3 x Hook-Up Cables, Power Cord, Spare Fuse & Instruction Manual |
| Input Voltage Rating | 108 to 132V ac |
| 长度 | 5.5in |
| 功耗 | 165W |
| 额定输出电压 | 0 to 24|5V dc |
| 最低工作温度 | 0°C |
| Protection Features | Short Circuit Protection, Over Voltage Protection, Reverse Polarity Protection, Overload Protection |
| 安装类型 | Surface Mount |
| 身高 | 10.97in |
| 最高工作温度 | +40°C |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
