Kingstate

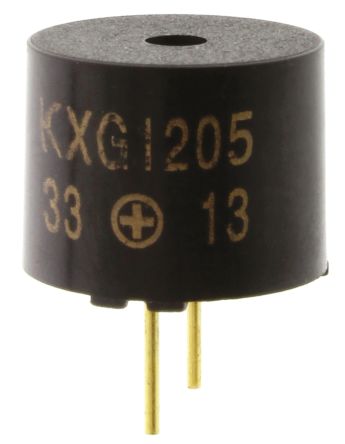

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 直径 | 12mm |
| 外形尺寸 | 9.5 x 12 (Dia.)mm |
| 光驱类型 | External |
| 身高 | 9.5mm |
| 最大频率 | 2400Hz |
| 最高工作温度 | +70°C |
| 最大电源电压 | 8V dc |
| 最低工作温度 | -30°C |
| 最低电源电压 | 3V dc |
| 安装类型 | PCB Mount |
| 电源电流 | 45mA |
| 语气类型 | Continuous |
| 最小频率 | 2000Hz |
| 声级比 | 94dB |
| RoHS指令 | Compliant |
| Transducer Function | :Buzzer |
| Supply Voltage Min | :3V |
| Supply Voltage Max | :8V |
| Operating Current Max | :45mA |
| Sound Level SPL | :92dBA |
| Sound Level Distance | :10cm |
| 谐振频率 | :2.4kHz |
| External Diameter | :12mm |
| 外部高度 | :9.5mm |
| SVHC | :No SVHC (20-Jun-2013) |
| Weight (kg) | 0.01 |
| Tariff No. | 85318095 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
