Kingstate

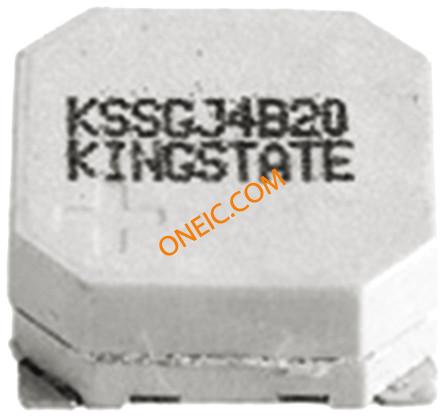

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 外形尺寸 | 8.5 x 8.5 x 4mm |
| 光驱类型 | External |
| 身高 | 4mm |
| 最大频率 | 2730Hz |
| 最高工作温度 | +70°C |
| 最大电源电压 | 5V |
| 最低工作温度 | -30°C |
| 最低电源电压 | 3V |
| 安装类型 | Surface Mount |
| 声级比 | 97dB |
| 电源电流 | 80mA |
| Transducer Function | :Buzzer |
| SVHC | :No SVHC (20-Jun-2013) |
| 线圈电阻 | :20ohm |
| Current Max | :80mA |
| 额定电流 | :80mA |
| External Length / Height | :3.2mm |
| 外宽 | :8.5mm |
| 频率 | :2.73kHz |
| 长度 | :8.5mm |
| 材质 | :L.C.P (White) |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-30��C |
| 谐振频率 | :2.73kHz |
| Sound Level Distance | :5cm |
| Sound Level SPL | :97dB |
| 电源电压 | :3.6V |
| Supply Voltage AC Max | :5V |
| Supply Voltage AC Min | :3.0V |
| Supply Voltage Max | :5V |
| Supply Voltage Min | :3.0VDC |
| 重量 | :0.7g |
| Weight (kg) | 0.0007 |
| Tariff No. | 85318095 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
