TRACOPOWER

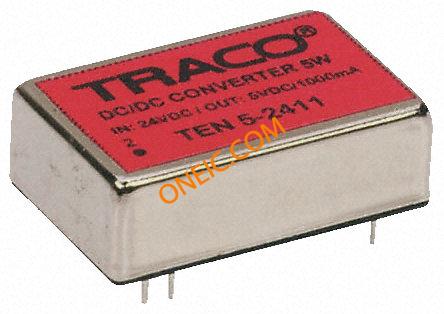

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 深度 | 10mm |
| 效率 | 86% |
| 输入电压 | 24V dc |
| 隔离电压 | 1.5kV |
| 长度 | 32mm |
| 线路调整 | ±0.3% |
| 负载调整率 | ±1% |
| 最高温度 | +85°C |
| 最低气温 | -40°C |
| 安装类型 | Through Hole |
| 平均无故障时间 | 1000000h |
| 输出数 | 1 |
| 输出电流 | 0.5A |
| 输出电压 | 12V dc |
| 包装 | DIP 24 |
| 额定功率 | 6W |
| 纹波和噪声 | 50mV |
| 重量 | 14g |
| 宽度 | 20mm |
| DC / DC Converter Type | :Isolated POL |
| DC / DC Converter Output Type | :Fixed |
| Input Voltage DC Min | :18V |
| Input Voltage DC Max | :36V |
| No. of Outputs | :1 |
| Output Voltage Nom. | :12V |
| Output Current Max | :500mA |
| Output Power Max | :6W |
| DC / DC Converter Mounting | :Through Hole |
| 身高 | :10mm |
| Approvals / Standards | :- |
| Approval Bodies | :CSA, EN, IEC, UL |
| Approval Category | :EN 60950, cUL/UL, UL/UL 1950 |
| Input Voltage Max | :36VDC |
| Input Voltage Min | :18VDC |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-40°C |
| 电源电压 | :24V |
| Weight (kg) | 0.016 |
| Tariff No. | 85044090 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
