TRACOPOWER

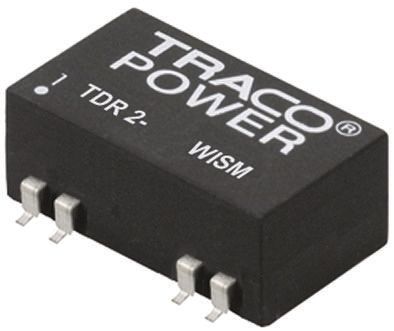

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 深度 | 8.45mm |
| 效率 | 81% |
| 输入电压 | 24V dc |
| 隔离电压 | 1500V dc |
| 长度 | 18.9mm |
| 线路调整 | ±0.2% |
| 负载调整率 | ±1% |
| 最高温度 | +85°C |
| 最低气温 | -40°C |
| 安装类型 | Surface Mount |
| 平均无故障时间 | 1000000h |
| 输出数 | 1 |
| 输出电流 | 0.134A |
| 输出电压 | 15V dc |
| 包装 | SOIC 14 |
| 额定功率 | 2W |
| 纹波和噪声 | 30mV |
| 宽度 | 12.8mm |
| DC / DC Converter Type | :Isolated POL |
| DC / DC Converter Output Type | :Fixed |
| Input Voltage DC Min | :9V |
| Input Voltage DC Max | :36V |
| No. of Outputs | :1 |
| Output Voltage Nom. | :15V |
| Output Current Max | :134mA |
| Output Power Max | :2W |
| DC / DC Converter Mounting | :Surface Mount |
| 身高 | :8.7mm |
| Weight (kg) | 0.005 |
| Tariff No. | 85044090 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
