Pepperl + Fuchs

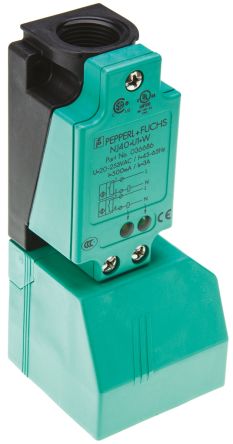

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 体风格 | Block |
| 深度 | 128mm |
| 检测范围 | 40 mm |
| 外壳材料 | PBT |
| IP等级 | IP68 |
| 长度 | 55mm |
| 最大交流电压 | 253V |
| 最高工作温度 | +70°C |
| 最低工作温度 | -25°C |
| 电源电压 | 20 → 253 V ac |
| 开关电流 | 500 mA |
| 开关频率 | |
| 宽度 | 50mm |
| Sensor Input | :Inductive |
| Sensing Range Max | :40mm |
| Supply Voltage DC Min | :20V |
| Supply Voltage DC Max | :253V |
| SVHC | :No SVHC (20-Jun-2013) |
| 外部深度 | :50mm |
| External Length / Height | :128mm |
| 外宽 | :50mm |
| Frequency Response Max | :20Hz |
| Frequency Response Range | :20Hz |
| Load Current Max | :500mA |
| 工作频率 | :25Hz |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-25°C |
| Sensing Distance Max | :40mm |
| 检测范围 | :0mm to 40mm |
| Sensor Output1 | :AC |
| 标准 | :DIN43694, EN50025, EN50037 |
| Supply Voltage AC Max | :250V |
| Supply Voltage AC Min | :20V |
| Supply Voltage Range AC | :20V to 253V |
| 螺纹尺寸 | :M20 |
| Weight (kg) | 0.34 |
| Tariff No. | 90318038 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
