Pepperl + Fuchs

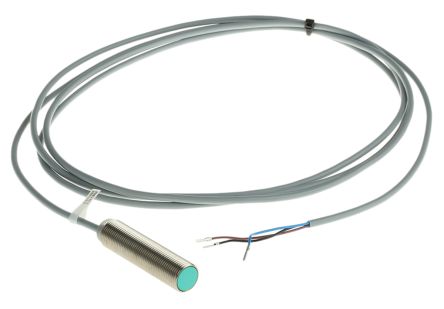

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 体风格 | Barrel |
| 检测范围 | 4 mm |
| 外壳材料 | Nickel Plated Brass |
| IP等级 | IP67 |
| 长度 | 50mm |
| 最大直流电压 | 30V |
| 最高工作温度 | +70°C |
| 最低工作温度 | -25°C |
| 安装类型 | Flush |
| 输出类型 | NPN |
| 反接保护 | Yes |
| 短路过载保护 | Yes |
| 电源电压 | 10 → 30 V dc |
| 开关电流 | 200 mA |
| 开关频率 | |
| 终端类型 | Wire Lead |
| 螺纹尺寸 | M12 x 1 |
| Sensor Input | :Inductive |
| Sensing Range Max | :4mm |
| Supply Voltage DC Min | :10V |
| Supply Voltage DC Max | :30V |
| SVHC | :No SVHC (20-Jun-2013) |
| External Length / Height | :40mm |
| Frequency Response Max | :800Hz |
| Frequency Response Range | :1kHz |
| IP / NEMA Rating | :IP67 |
| Load Current Max | :150mA |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-25°C |
| Sensing Distance Max | :4mm |
| 检测范围 | :4mm |
| Sensor Output1 | :NPN |
| Supply Voltage Max | :30VDC |
| Supply Voltage Min | :10VDC |
| Supply Voltage Range DC | :10V to 30V |
| Weight (kg) | 0.059 |
| BodyStyle | Cylindrical |
| Current,Switching | 200mA |
| 功能 | Proximity |
| IPRating | IP67 |
| MountingType | Flush |
| 输出 | NPN |
| PrimaryType | Proximity |
| Range,Measurement | 4mm |
| 技术 | Inductive |
| 端子 | Cable |
| 类型 | Inductive |
| Voltage,Supply | 30VDC |
| Sensor type | inductive |
| Output configuration | NPN / NO |
| Multiplicity | 1 |
| 连接方式 | lead 2m |
| Switching frequency max | 800Hz |
| Gross weight | 1 g |
| Front type | embedded |
| Body material | brass |
| Operating temperature | -25...70°C |
| 电源电压 | 10...30V DC |
| Overall length | 50mm |
| Range | 0...4mm |
| Thread length | 47mm |
| 密封 | IP67 |
| Body plating | nickel |
| Switch housing | M12 |
| Operating current max | 200mA |
| 螺纹尺寸 | M12 x 1 |
| IP 防护等级 | IP67 |
| 电源电压 | 10 → 30 V 直流 |
| 最高工作温度 | +70°C |
| 安装类型 | 嵌入安装 |
| 最低工作温度 | -25°C |
| 极性反接保护 | 是 |
| 尺寸 | 50 x 12 mm |
| 最大直流电压 | 30V |
| 短路过载保护 | 是 |
| 检测范围 | 4mm |
| 输出类型 | NPN |
| 主体样式 | 柱体 |
| 长度 | 50mm |
| 切换频率 | ≤800 Hz |
| 外壳材料 | 镀镍黄铜 |
| 接端类型 | 导线 |
| 切换电流 | 200 mA |
