Pepperl + Fuchs

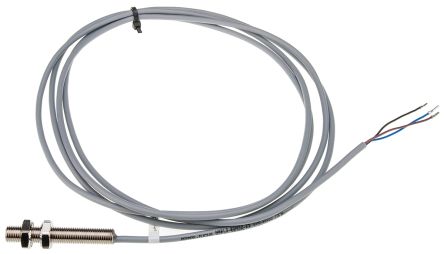

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 体风格 | Barrel |
| 检测范围 | 1.5 mm |
| 外壳材料 | Nickel Plated Brass |
| IP等级 | IP67 |
| 长度 | 50mm |
| 最大直流电压 | 30V |
| 最高工作温度 | +70°C |
| 最低工作温度 | -25°C |
| 安装类型 | Flush |
| 输出类型 | PNP |
| 反接保护 | Yes |
| 短路过载保护 | Yes |
| 电源电压 | 10 → 30 V dc |
| 开关电流 | 100 mA |
| 开关频率 | |
| 终端类型 | Wire Lead |
| 螺纹尺寸 | M8 x 1 |
| Sensor Input | :Inductive |
| Sensing Range Max | :1.5mm |
| Supply Voltage DC Min | :10V |
| Supply Voltage DC Max | :30V |
| SVHC | :No SVHC (20-Jun-2013) |
| External Length / Height | :50mm |
| Frequency Response Max | :1500Hz |
| Frequency Response Range | :1.5kHz |
| IP / NEMA Rating | :IP67 |
| Load Current Max | :100mA |
| 材质 | :Brass |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-25°C |
| Sensing Distance Max | :1.5mm |
| 检测范围 | :0mm to 1.5mm |
| Sensor Output1 | :PNP |
| Supply Voltage Range DC | :10V to 30V |
| Weight (kg) | 0.048 |
| Tariff No. | 85365019 |
| BodyStyle | Cylindrical |
| Current,Switching | 100mA |
| 功能 | Proximity |
| IPRating | IP67 |
| MountingType | Flush |
| 输出 | PNP-NO |
| PrimaryType | Proximity |
| Range,Measurement | 1.5mm |
| 技术 | Inductive |
| 端子 | Cable |
| 类型 | Inductive |
| Voltage,Supply | 30VDC |
| RoHS指令 | RoHS Compliant Part |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
