EDAC Inc

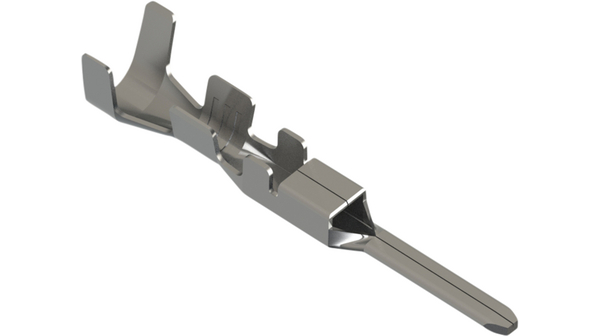

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 线规 | 16-22 AWG |
| 接触端子 | Crimp |
| 触点表面涂层 | Tin |
| 封装 | Bulk |
| 标准包装 | 280 |
| 针脚或插座 | Pin |
| 其他名称 | Q2798060C |
| 工厂包装数量 | 100 |
| 产品种类 | Rack & Panel Connectors |
| 系列 | 570 |
| 端接类型 | Crimp |
| 安装风格 | SMD/SMT |
| 位置/触点数 | 80 |
| 触点电镀 | Tin |
| 触点类型 | Pin |
| 连接器类型 | Rack and Panel |
| 产品类型 | Plug Connectors |
| RoHS | RoHS Compliant |
| 适用于 | :567, 568, 570 Series Waterproof Male Housings |
| 联系人性别 | :Pin |
| 触点材料 | :Brass / Phosphor Bronze |
| 额定电流 | :10A |
| Weight (kg) | 0 |
| Tariff No. | 85366930 |
| Wire Size AWG Min | :20AWG |
| Wire Size AWG Max | :16AWG |
| SVHC | :No SVHC (20-Jun-2013) |
| Wire Size (AWG) | :20AWG to 16AWG |
| Electrical mounting | crimped |
| Mechanical mounting | for cable |
| 额定电流 | 10A |
| Multiplicity | 1 |
| Connector type | male |
| spg | 100 |
| 连接器 | contact |
| Gross weight | 0.42 g |
| Operating temperature | -40...105°C |
| Connector series | 570 |
| 接触镀层 | tinned |
| Max contact resistance: | 10mΩ |
| 密封 | IP67 |
| Wire size | 16...22AWG |
| Collective package [pcs] | 100 |
| Contact material | brass |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
