EDAC Inc

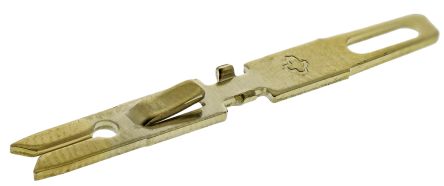

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 线规 | 18-28 AWG |
| 触点表面涂层 | Gold |
| 封装 | Bulk |
| 标准包装 | 1,000 |
| 针脚或插座 | Non-Gendered |
| 类型 | Signal |
| 接触端子 | Solder |
| 触点材料 | Phosphor Bronze |
| 触点电镀 | Gold over Nickel |
| RoHS指令 | Not Applicable |
| 产品种类 | Rack & Panel Connectors |
| 系列 | 516 |
| 产品类型 | Contacts |
| RoHS | RoHS Compliant |
| 联系人性别 | :- |
| 连接器类型 | :Contact, Solder |
| 额定电流 | :8.5A |
| Weight (kg) | 0 |
| Tariff No. | 85366930 |
| SVHC | :No SVHC (20-Jun-2013) |
| 接触电阻 | :6mohm |
| 适用于 | :516 Series Rack and Panel Connectors |
| Electrical mounting | soldering |
| Mechanical mounting | for cable |
| Package type | in bulk |
| 额定电流 | 8.5A |
| Multiplicity | 1 |
| Connector type | hermaphrodite |
| 连接器 | contact |
| Gross weight | 0.33 g |
| Operating temperature | -65...125°C |
| Connector series | 516 |
| 接触镀层 | nickel plated, gold plated |
| Max contact resistance: | 10mΩ |
| spg | 1000 |
| Collective package [pcs] | 1000 |
| Contact material | phosphor bronze |
