ebm-papst

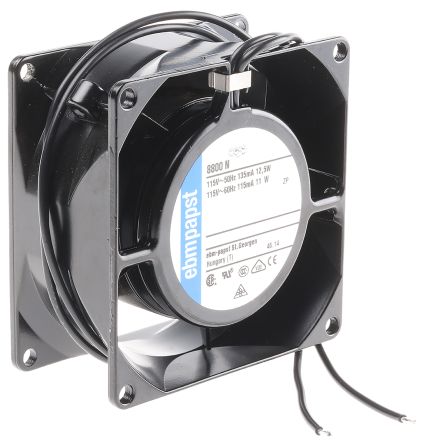

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品长度 | 79.5 |
| 欧盟RoHS指令 | Compliant |
| 最高工作温度 | 70 |
| 风扇旋向 | Clockwise |
| 产品厚度 | 79.5 |
| 轴承 | Sintec-Sleeve |
| 端子 | Leads |
| Nominal Speed | 2500 |
| Noise Level | 28 |
| 额定电压 | 115 |
| 产品高度 | 38 |
| 外壳材料 | Metal |
| 额定功率 | 11 |
| Maximum Airflow | 27.7 |
| 安装 | Flange Mount |
| 工作频率 | 60 |
| 最低工作温度 | -10 |
| 子类别 | Blowers and Fans |
| 交货期 | 112 Days |
| 材料 - 刀片 | Metal |
| 噪音 | 28 dB(A) |
| 电压 - 额定 | 115VAC |
| 标准包装 | 25 |
| 材料 - 框架 | Metal |
| 轴承类型 | Sintec |
| 尺寸/尺寸 | Square - 80mm L x 80mm H x 38mm W |
| 重量 | 1.1 lbs (499g) |
| 工作温度 | 14 ~ 158°F (-10 ~ 70°C) |
| Air Flow | 27.7 CFM (0.784m³/min) |
| 风扇类型 | Tubeaxial |
| 预期寿命 | 55000 hrs @ 40°C |
| 功率（瓦特） | 11.0W |
| 转速 | 2500 RPM |
| 其他名称 | 381-1106 |
| RoHS指令 | Lead free / RoHS Compliant |
| 框架尺寸（mm ） | 80 mm x 38 mm x |
| 风量 | 27.7 CFM |
| 系列 | 8000N |
| 端接类型 | Wire Leads |
| 单位重量 | 1.060 lbs |
| 电流类型 | AC |
| 产品种类 | Blowers |
| 额定功率 | 11 W |
| 速度 | 2500 RPM |
| RoHS | RoHS Compliant |
| 电源电压 | 115 V |
| Frame Dimensions | :80mm x 80mm x 38mm |
| Flow Rate - Imperial | :27.7cu.ft/min |
| Flow Rate - Metric | :0.78m³/min |
| Noise Rating | :28dBA |
| Power Connection Type | :Wire Leaded |
| SVHC | :No SVHC (20-Jun-2013) |
| Approval Bodies | :CSA, UL, VDE |
| 外部深度 | :38mm |
| External Diameter | :80mm |
| 外部高度 | :80mm |
| 外宽 | :80mm |
| 固定中心 | :71.5mm |
| 安装孔直径 | :4mm |
| 频率 | :60Hz |
| Operating Lifetime | :55000h |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-10°C |
| 面板开孔直径 | :77mm |
| 功耗 | :11W |
| Speed Range Max | :2500rpm |
| 类型 | :Super Low Noise,80mm |
| Weight (kg) | 0.4 |
| Tariff No. | 84145920 |
| AirFlow | 27.7CFM |
| BearingType | Sintec |
| Brand/Series | 8000NSeries |
| 配置 | Square |
| 外形尺寸 | 3.2x3.2x1.5(80x80x38)In.(mm) |
| Dimensions,Inches | 3.2x3.2x1.5In. |
| Dimensions,mm | 80x80x38mm |
| 方向 | ExhaustoverStruts |
| FanType | AC |
| 材质 | Metal |
| NoiseLevel | 28dBA |
| NominalSpeed | 2500RPM |
| PowerRating | 11 |
| Power,Rating | 11W |
| PrimaryType | Fans |
| 回转 | CW |
| 尺寸 | 3.2x1.5(80x38)In.(mm) |
| Size,Fan | 3.2x1.5(80x38)In.(mm) |
| Temperature,Operating,Maximum | 70°C |
| 厚度 | 38mm |
| Voltage,Rating | 115VAC |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
