Dialight

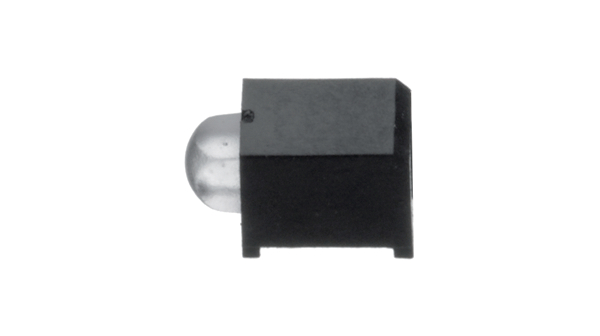

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | LED Circuit Board Indicators |
| RoHS | RoHS Compliant |
| LED尺寸 | 3 mm |
| 照明颜色 | Red, Green |
| 安装类型 | SMD/SMT |
| 系列 | 591-3001-0xx |
| 封装 | Cut Tape |
| 配置 | 1 Bi-Color LED, Single Level |
| 正向电流 | 20 mA |
| 正向电压 | 2 V |
| 主波长 | 570/628 |
| 安装 | Surface Mount |
| 最大正向电流 | 30 |
| Package Width | 8.2 |
| PCB | 2 |
| 最大功率耗散 | 90 |
| 类型 | Bi-Color |
| 可视角度 | 40 |
| 反向电压 | 5(Min) |
| 欧盟RoHS指令 | Compliant |
| Maximum Forward Voltage per Color | 2.6 |
| 最低工作温度 | -55 |
| 透镜形状类型 | Square |
| Lens Dimensions | 2.8x2.8x2.1 |
| 供应商封装形式 | SMD |
| 标准包装名称 | SMD |
| 安装方向 | Right Angle |
| 最高工作温度 | 100 |
| LED的数量 | 2 |
| Package Length | 4.3 |
| 引脚数 | 2 |
| 颜色 | Green/Red |
| Package Height | 5 |
| 强度 | 8mcd|6.5mcd |
| 高亮度 | No |
| 透镜样式/尺寸 | Square with Domed Top, 3mm |
| 额定电压 | 2V |
| 电流 | 30mA |
| Millicandela等级 | 11.3mcd Green, 11.3mcd Red |
| 波长 - 峰值 | 572nm, 635nm |
| 标准包装 | 20 |
| 镜头类型 | Diffused |
| RoHS指令 | Lead free / RoHS Compliant |
| BulbType | 3mm |
| Color,Emitted | Red/Green |
| Color,Lens | Clear |
| Current,Forward | 20mA |
| LensShape | Square |
| LuminousIntensity | 40mcd |
| MountingType | SurfaceMount |
| View | RT-Angle |
| ViewingAngle | 50° |
| Voltage,Forward | 2V |
| 版本 | standard |
| No of LEDs | 1 |
| Rated on-state current | 10 |
| Luminous intensity | 6.5...8 mcd |
| Light colour | red/green |
| LED shape | 3 mm angular |
| 正向电压 | 2...2.6 V |
| Case colour | black |
| Dominant wavelength | 628/570 |
| Transmission angle | 40 |
