AVX

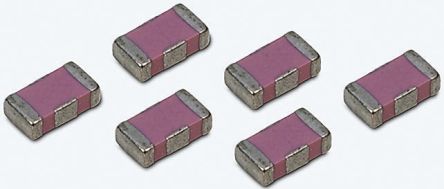

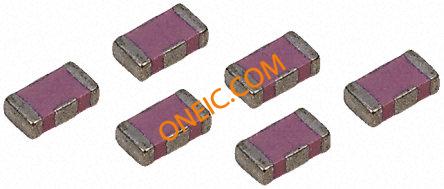

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Feed Through Capacitors |
| RoHS | In Transition |
| 电容 | 22 pF |
| 容差 | - 20 %, + 50 % |
| 额定电压 | 100 V |
| 工作温度范围 | - 55 C to + 125 C |
| 温度系数 | C0G (NP0) |
| 封装/外壳 | 0612 (1632 metric) |
| 外形尺寸 | 0.126 in W x 0.063 in L x 0.048 in H |
| 频率范围 | 5 GHz |
| 绝缘电阻 | 1 Ohms |
| 封装 | Reel |
| 产品 | High Current |
| 系列 | W3H |
| 工厂包装数量 | 1000 |
| 端接类型 | SMD/SMT |
| 深度 | 3.2mm |
| 介质 | C0G |
| 身高 | 1.22mm |
| 长度 | 1.6mm |
| 最高工作温度 | +125°C |
| 最低工作温度 | -55°C |
| 安装类型 | Surface Mount |
| 封装/外壳 | 0612 |
| 公差减 | -20% |
| 公差加 | +50% |
| 电压 | 100 V dc |
| RoHS指令 | Compliant |
| 表壳长度 | 0.063 in |
| 表壳厚度 | 0.048 in |
| 表壳宽度 | 0.126 in |
| 类型 | High Current Feedthru Capacitors |
| 产品范围 | :AVX - W3H Series |
| 电容公差 | :+50%, -20% |
| Dielectric Characteristic | :C0G / NP0 |
| Capacitor Case Style | :0612 [1632 Metric] |
| Operating Temperature Min | :-55°C |
| Operating Temperature Max | :125°C |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (20-Jun-2013) |
| Capacitor Terminals | :SMD |
| 输出电流 | :3A |
| 电阻 | :150mohm |
| 终端类型 | :Surface Mount (SMD, SMT) |
| Tolerance + | :50% |
| Tolerance - | :20% |
| Voltage Rating V DC | :100V |
| Weight (kg) | 0.0001 |
| Tariff No. | 85322300 |
