AVX

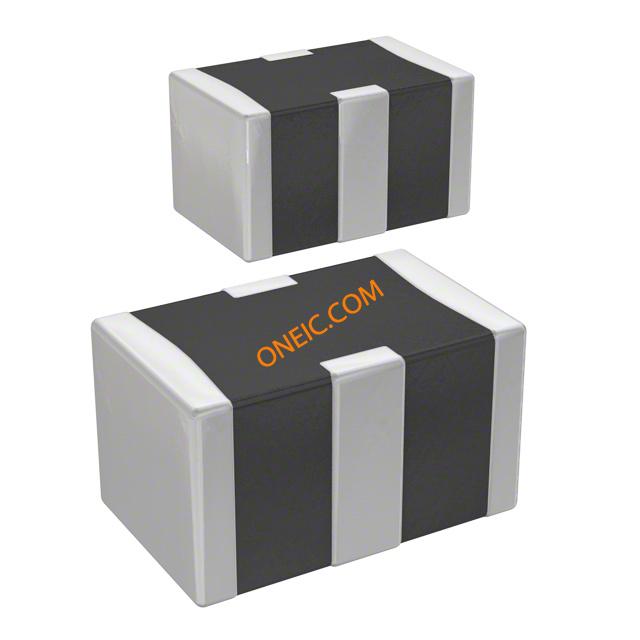

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Feed Through Capacitors |
| RoHS | In Transition |
| 电容 | 100 pF |
| 容差 | - 20 %, + 50 % |
| 额定电压 | 100 V |
| 工作温度范围 | - 55 C to + 125 C |
| 温度系数 | C0G (NP0) |
| 封装/外壳 | 0805 (2012 metric) |
| 电容 - NF | 0.1 nF |
| 额定电流 | 300 mA |
| 外形尺寸 | 0.083 in W x 0.051 in L x 0.037 in H |
| 频率范围 | 0 GHz to 5 GHz |
| 绝缘电阻 | 1000 MOhms |
| 封装 | Reel |
| 产品 | Feed Through General Purpose |
| 系列 | W2F |
| 工厂包装数量 | 1000 |
| 端接类型 | SMD/SMT |
| 单位包 | 1000 |
| 最小起订量 | 1000 |
| 电流 | 300mA |
| 直流电阻（DCR ） | 600 mOhm |
| 高度（最大） | 0.045" (1.14mm) |
| 尺寸/尺寸 | 0.079" L x 0.049" W (2.01mm x 1.25mm) |
| 工作温度 | -55°C ~ 125°C |
| 电压 | 100V |
| 标准包装 | 1,000 |
| 封装/外壳 | 0805 (2012 Metric), 4 PC Pad |
| RoHS指令 | Lead free / RoHS Compliant |
| 表壳长度 | 0.051 in |
| 表壳厚度 | 0.037 in |
| 表壳宽度 | 0.083 in |
| 产品范围 | :AVX - W2F Series |
| 电容公差 | :+50%, -20% |
| Dielectric Characteristic | :C0G / NP0 |
| Capacitor Case Style | :0805 [2012 Metric] |
| Operating Temperature Min | :-55°C |
| Operating Temperature Max | :125°C |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (16-Dec-2013) |
| Capacitor Terminals | :SMD |
| No. of Pins | :2 |
| Weight (kg) | 0.001 |
| Tariff No. | 85322300 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
