analog devices

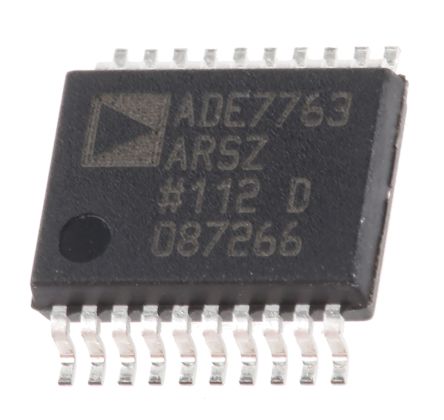

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 20SSOP |
| 家庭 | ADE7763 |
| 工作温度 | -40 to 85 °C |
| 标准包装 | Rail / Tube |
| 标准包装名称 | SSOP |
| 欧盟RoHS指令 | Compliant |
| 最高工作温度 | 85 |
| 供应商封装形式 | SSOP |
| 筛选等级 | Industrial |
| 最低工作温度 | -40 |
| 引脚数 | 20 |
| 铅形状 | Gull-wing |
| 仪表类型 | Single Phase |
| 安装类型 | Surface Mount |
| 电压 - 高输入/输出 | 2.4V |
| 电压 - 低I / O | 0.8V |
| 供应商设备封装 | 20-SSOP |
| 测量误差 | 0.1% |
| 封装 | Tube |
| 电流 - 电源 | 3mA |
| 电压 - 电源 | 4.75 V ~ 5.25 V |
| 封装/外壳 | 20-SSOP (0.209", 5.30mm Width) |
| 输入阻抗 | 390 kOhm |
| RoHS指令 | Lead free / RoHS Compliant |
| 外形尺寸 | 7.2 x 5.3 x 1.75mm |
| 身高 | 1.75mm |
| 长度 | 7.2mm |
| 最高工作温度 | +85 °C |
| 最低工作温度 | -40 °C |
| 包装类型 | SSOP |
| 宽度 | 5.3mm |
| 工厂包装数量 | 66 |
| ADC的数量 | 2 |
| 系列 | ADE7763 |
| 安装风格 | SMD/SMT |
| 功耗 | 25 mW |
| 电源电压 - 最大 | 5.25 V |
| 接口类型 | Serial |
| 输入类型 | Analog |
| 电源电压 - 最小 | 4.75 V |
| RoHS | RoHS Compliant |
| IC Function | :Single-Phase Active and Apparent Energy Metering IC |
| Brief Features | :- |
| Supply Voltage Min | :4.75V |
| Supply Voltage Max | :5.25V |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| Digital IC Case Style | :SSOP |
| No. of Pins | :20 |
| MSL | :MSL 3 - 168 hours |
| SVHC | :No SVHC (20-Jun-2013) |
| Weight (kg) | 0.00001 |
| Tariff No. | 85423990 |
| 案例 | SSOP20 |
| Integrated circuits features | 1-phase |
| 安装 | SMD |
| Integrated circuit type | electric energy meter |
| Gross weight | 0.35 g |
| Power dissipation | 25mW |
| spg | 66 |
| 电源电压 | 4.75...5.25V DC |
| Measurement accuracy | 0.1% |
| Input impedance | 380kΩ |
| Collective package [pcs] | 66 |
| DC supplying current | 3mA |
| Multiplicity | 1 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
