analog devices

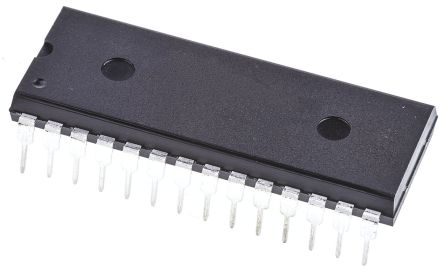

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 28PDIP |
| 分辨率 | 16 Bit |
| 转换速率 | 143 Ksps |
| 建筑 | Resistor-String |
| 数字接口类型 | Parallel |
| 每个芯片的输出端数量 | 1 |
| 输出类型 | Voltage |
| 满量程误差 | ±16 LSB |
| 积分非线性误差 | ±8 LSB |
| 最大建立时间 | 9 us |
| 工作温度 | 0 to 70 °C |
| 标准包装 | Rail / Tube |
| 位数 | 16 |
| 输出数目和类型 | 1 Voltage, Unipolar; 1 Voltage, Bipolar |
| 安装类型 | Through Hole |
| 建立时间 | 7µs |
| 数据接口 | Parallel |
| 采样率（每秒） | 143k |
| 供应商设备封装 | 28-PDIP |
| 电压电源 | Dual ± |
| 封装 | Tube |
| 转换器数量 | 1 |
| 封装/外壳 | 28-DIP (0.600", 15.24mm) |
| RoHS指令 | Lead free / RoHS Compliant |
| 工厂包装数量 | 13 |
| 封装/外壳 | PDIP-28 |
| 安装风格 | Through Hole |
| 最高工作温度 | + 70 C |
| 电源电压 - 最大 | 15.75 V |
| 接口类型 | Parallel |
| 电源电压 - 最小 | 11.4 V |
| DAC输出端数量 | 1 |
| RoHS | RoHS Compliant |
| 最大功率耗散 | 1000 mW |
| 系列 | AD7846 |
| 积分非线性 | +/- 8 LSB |
| 最低工作温度 | 0 C |
| 参考电压 | 5 V |
| 安装 | Through Hole |
| 通道数 | 1 |
| 工作温度范围 | 0C to 70C |
| 包装类型 | PDIP |
| 引脚数 | 28 |
| 工作温度（最大） | 70C |
| 工作温度（最小值） | 0C |
| 工作温度分类 | Commercial |
| Dual Supply Voltage (Typ) | �15 V |
| 电源要求 | Dual |
| Dual Supply Voltage (Min) | �11.4 V |
| 弧度硬化 | No |
| 单电源电压（最小值） | Not Required V |
| 单电源电压（最大值） | Not Required V |
| 单电源电压（典型值） | Not Required V |
| Dual Supply Voltage (Max) | �15.75 V |
| 分辨率（位） | :16bit |
| 采样速率 | :143kSPS |
| Input Channel Type | :Parallel |
| Supply Voltage Range | :± 11.4V to ± 15.75V |
| Digital IC Case Style | :DIP |
| No. of Pins | :28 |
| 电源电流 | :5mA |
| Operating Temperature Min | :0°C |
| Operating Temperature Max | :70°C |
| MSL | :MSL 3 - 168 hours |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :7846 |
| Conversion Time | :6µs |
| IC Case Style | :DIP |
| Linearity Error ADC / DAC + | :2LSB |
| No. of Bits | :16 bit |
| No. of DACs | :1 |
| 工作温度范围 | :0°C to +70°C |
| Supply Voltage Max | :15.75V |
| Supply Voltage Min | :4.75V |
| Supply Voltage Range - Analogue | :± 11.4V to ± 15.75V |
| Supply Voltage Range - Digital | :4.75V to 5.25V |
| 端接类型 | :Through Hole |
| Weight (kg) | 0.006669 |
| Tariff No. | 85423190 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
