analog devices

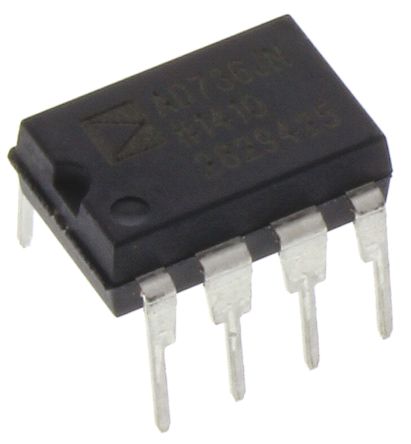

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 8PDIP |
| 工作温度 | 0 to 70 °C |
| 标准包装 | Rail / Tube |
| 供应商封装形式 | PDIP |
| 标准包装名称 | PDIP |
| 欧盟RoHS指令 | Compliant |
| 最高工作温度 | 70 |
| Typical Output Voltage Swing | 12 |
| Package Height | 3.3 |
| 安装 | Through Hole |
| 最大电源电流 | 200000 |
| 封装 | Tube |
| Package Width | 6.35 |
| PCB | 8 |
| Package Length | 9.27 |
| 最低工作温度 | 0 |
| 引脚数 | 8 |
| 铅形状 | Through Hole |
| 安装类型 | Through Hole |
| 供应商设备封装 | 8-PDIP |
| 电流 - 电源 | 160µA |
| 电压 - 电源 | 2.8V, -3.2V ~ ±16.5V |
| 封装/外壳 | 8-DIP (0.300", 7.62mm) |
| RoHS指令 | Lead free / RoHS Compliant |
| 外形尺寸 | 9.27 x 6.35 x 3.3mm |
| 身高 | 3.3mm |
| 长度 | 9.27mm |
| 最高工作温度 | +70 °C |
| 最大输出电流 | 0.002A |
| 最低工作温度 | 0 °C |
| 包装类型 | PDIP |
| 宽度 | 6.35mm |
| 工厂包装数量 | 50 |
| 输入电流 | 0.2 mA |
| 工作温度范围 | - 40 C to + 85 C |
| 系列 | AD736 |
| 输入电压范围 | - 3.2 V to + 2.8 V |
| 安装风格 | Through Hole |
| 电源电压 | - 3.2 V to + 2.8 V |
| 封装/外壳 | PDIP-8 |
| 电源电流 | 0.2 mA |
| 类型 | RSM to DC Converter |
| RoHS | RoHS Compliant |
| 工作温度（最大） | 70C |
| 工作温度（最小值） | 0C |
| 表壳长度 | 9.27 mm |
| 筛选等级 | Commercial |
| 表壳厚度 | 3.3 mm |
| 弧度硬化 | No |
| Accuracy % | :0.3% |
| 带宽 | :190kHz |
| 功耗 | :200mW |
| Supply Voltage Range | :2.8V, -3.2V to ± 16.5V |
| Digital IC Case Style | :DIP |
| No. of Pins | :8 |
| Operating Temperature Min | :0°C |
| Operating Temperature Max | :70°C |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :736 |
| IC Case Style | :DIP |
| IC Generic Number | :736 |
| IC Temperature Range | :Commercial |
| Logic Function Number | :736 |
| Supply Voltage Max | :16.5V |
| Supply Voltage Min | :2.8V |
| Total Error | :0.3% |
| Weight (kg) | 0.000001 |
| Tariff No. | 85235290 |
| 案例 | DIP8 |
| 功率 | 200mW |
| Integrated circuit type | RMS/DC converter |
| Gross weight | 1.31 g |
| 频率 | 37kHz |
| 电源电压 | 2.8...16.5V DC |
| Multiplicity | 1 |
| spg | 250 |
| Collective package [pcs] | 250 |
| DC supplying current | 160µA |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
