analog devices

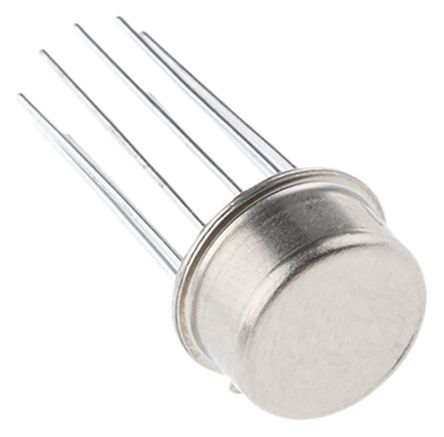

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 10TO-100 |
| 工作温度 | 0 to 70 °C |
| 供应商封装形式 | TO-100 |
| 欧盟RoHS指令 | Compliant |
| 最高工作温度 | 70 |
| Typical Output Voltage Swing | 0 to 1 |
| Package Height | 4.7(Max) |
| 安装 | Through Hole |
| Package Diameter | 9.4(Max) |
| 封装 | Tube |
| PCB | 10 |
| 最低工作温度 | 0 |
| 引脚数 | 10 |
| 铅形状 | Through Hole |
| 安装类型 | Through Hole |
| 供应商设备封装 | TO-100-10 |
| 电流 - 电源 | 800µA |
| 电压 - 电源 | ±2.5 V ~ 16 V |
| 标准包装 | 1 |
| 封装/外壳 | TO-100-10 Metal Can |
| RoHS指令 | Lead free / RoHS Compliant |
| 外形尺寸 | 9.4 x 9.4 x 4.7mm |
| 身高 | 4.7mm |
| 长度 | 9.4mm |
| 最高工作温度 | +70 °C |
| 最低工作温度 | 0 °C |
| 最小输出电流 | 5mA |
| 包装类型 | TO-100 |
| 宽度 | 9.4mm |
| 工厂包装数量 | 100 |
| 输入电流 | 1 mA |
| 工作温度范围 | 0 C to + 70 C |
| 系列 | AD636 |
| 输入电压范围 | - 5 V to + 3 V |
| 安装风格 | Through Hole |
| 电源电压 | - 5 V to + 3 V |
| 封装/外壳 | TO-100-10 |
| 电源电流 | 1 mA |
| 类型 | RSM to DC Converter |
| RoHS | RoHS Compliant |
| 工作温度（最大） | 70C |
| 工作温度（最小值） | 0C |
| 筛选等级 | Commercial |
| 弧度硬化 | No |
| Accuracy % | :1% |
| 带宽 | :900kHz |
| 功耗 | :500mW |
| Supply Voltage Range | :5V to 24V |
| Digital IC Case Style | :TO-100 |
| No. of Pins | :10 |
| Operating Temperature Min | :0°C |
| Operating Temperature Max | :70°C |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Weight (kg) | 0.000012 |
| Tariff No. | 85423990 |
| Supply Voltage Min | :5V |
| 案例 | TO100 |
| Integrated circuits features | low level |
| 功率 | 500mW |
| Integrated circuit type | RMS/DC converter |
| Gross weight | 3.91 g |
| 频率 | 1.5MHz |
| 电源电压 | 5...24V DC |
| Multiplicity | 1 |
| spg | 100 |
| Collective package [pcs] | 100 |
| DC supplying current | 800µA |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
