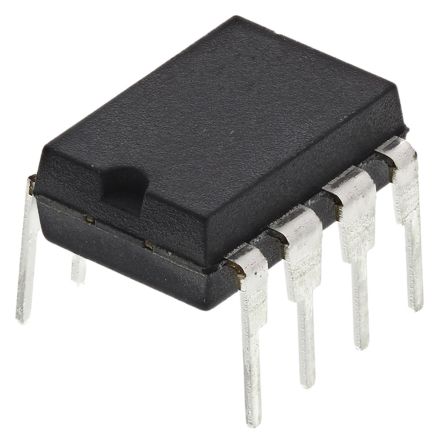

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 8PDIP |
| 类型 | Instrumentation Amplifier |
| 每个芯片的通道数 | 1 |
| 电源类型 | Dual |
| 最小双电源电压 | ±2.3 V |
| 最大双电源电压 | ±18 V |
| 安装 | Through Hole |
| 工作温度 | -40 to 85 °C |
| 标准包装 | Rail / Tube |
| 轨至轨 | No |
| Package Width | 6.35 |
| Package Length | 9.27 |
| PCB | 8 |
| 筛选等级 | Industrial |
| 最大功率耗散 | 650 |
| 最大双电源电压 | ±18 |
| Maximum Input Bias Current | 0.001@±15V |
| 欧盟RoHS指令 | Compliant |
| Minimum CMRR | 80 |
| 每个芯片的元件数 | 1 |
| 最低工作温度 | -40 |
| 供应商封装形式 | PDIP N |
| 标准包装名称 | PDIP |
| 最高工作温度 | 85 |
| 最小双电源电压 | ±2.3 |
| Typical Dual Supply Voltage | ±3|±5|±9|±12|±15 |
| Maximum Input Resistance | 10000(Typ)@±15V |
| 引脚数 | 8 |
| Maximum Input Offset Voltage | 0.05@±15V |
| Package Height | 3.3 |
| 封装 | Tube |
| 铅形状 | Through Hole |
| 电流 - 输出/通道 | 18mA |
| 放大器类型 | Instrumentation |
| 安装类型 | Through Hole |
| - 3dB带宽 | 1MHz |
| 供应商设备封装 | 8-PDIP |
| 电流 - 电源 | 900µA |
| Voltage - Supply, Single/Dual (±) | 4.6 V ~ 36 V, ±2.3 V ~ 18 V |
| 封装/外壳 | 8-DIP (0.300", 7.62mm) |
| 压摆率 | 1.2 V/µs |
| 电流 - 输入偏压 | 500pA |
| 电压 - 输入偏移 | 15µV |
| 电路数 | 1 |
| RoHS指令 | Lead free / RoHS Compliant |
| 外形尺寸 | 9.27 x 6.35 x 3.3mm |
| 身高 | 3.3mm |
| 长度 | 9.27mm |
| 最大输入失调电压 | 0.05mV |
| 最大输入电阻 | 10GΩ |
| 最高工作温度 | +85 °C |
| 最低CMRR | 80dB |
| 最低工作温度 | -40 °C |
| 包装类型 | PDIP |
| 典型双电源电压 | ±12 V, ±15 V, ±3 V, ±5 V, ±9 V |
| 宽度 | 6.35mm |
| 工厂包装数量 | 50 |
| 双电源电压 | +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V |
| 可用增益调整 | 1 V/V to 10000 V/V |
| 工作电源电压 | 2.3 V to 18 V |
| 共模抑制比 - 闵 | 120 dB |
| 输入电压 | 2.3 V to 18 V |
| 通道数 | 1 Channel |
| 工作温度范围 | - 40 C to + 85 C |
| RoHS | RoHS Compliant |
| 最大功率耗散 | 650 mW |
| 系列 | AD620 |
| 安装风格 | Through Hole |
| 带宽 | 1000 kHz |
| 输入失调电压 | 15 uV |
| 电源电流 | 0.9 mA |
| 功率耗散 | 0.65 W |
| 工作温度范围 | -40C to 85C |
| 元件数 | 1 |
| 共模抑制比 | 80 dB |
| 工作温度分类 | Industrial |
| 输入电阻 | 10000 MOhm |
| 输入偏置电流 | 1 nA |
| 电源要求 | Dual |
| Dual Supply Voltage (Min) | �2.3 V |
| 铁/铁I / O类型 | No |
| 弧度硬化 | No |
| 单电源电压（最小值） | Not Required V |
| 单电源电压（最大值） | Not Required V |
| 单电源电压（典型值） | Not Required V |
| Dual Supply Voltage (Max) | �18 V |
| No. of Amplifiers | :1 |
| Supply Voltage Range | :± 2.3V to ± 18V |
| Amplifier Case Style | :DIP |
| No. of Pins | :8 |
| Amplifier Output | :Single Ended |
| CMRR | :130dB |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :620 |
| Input Offset Drift Max | :1µV/°C |
| Logic Function Number | :620 |
| Operational Amplifier Features | :Low Power |
| Programmable Gain Max | :10000 |
| Supply Voltage Max | :18V |
| Supply Voltage Min | :2.3V |
| Weight (kg) | 0.000001 |
| Tariff No. | 85423300 |
| 案例 | DIP8 |
| Multiplicity | 1 |
| Transmission band frequency | 120kHz |
| Voltage rise speed | 1.2V/μs |
| Gross weight | 2.41 g |
| Operating temperature | -40...85°C |
| Number of channels | 1 |
| 电源电压 | 2.3...18V DC |
| Integrated circuit type | operational amplifier |
| Collective package [pcs] | 7 |
| spg | 7 |
