Analog Devices Inc

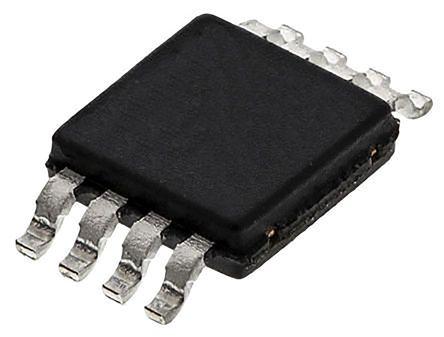

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 放大器类型 | Current Sense |
| 安装类型 | Surface Mount |
| - 3dB带宽 | 250kHz |
| 标准包装 | 50 |
| 供应商设备封装 | 8-MSOP |
| 封装 | Tube |
| 工作温度 | -40°C ~ 125°C |
| 电流 - 电源 | 2.6mA |
| Voltage - Supply, Single/Dual (±) | 2.7 V ~ 5.5 V |
| 封装/外壳 | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| 压摆率 | 1 V/µs |
| 电流 - 输入偏压 | 130µA |
| 电压 - 输入偏移 | 200µV |
| 电路数 | 1 |
| 工厂包装数量 | 50 |
| 描述/功能 | Features a zero drift core, which leads to a typical offset drift |
| 电源电流 | 2.6 mA |
| 共模抑制比 - 闵 | 90 dB |
| 安装风格 | SMD/SMT |
| 带宽 | 250 kHz |
| 输入失调电压 | 200 uV |
| 电源电压 - 最大 | 5.5 V |
| 最低工作温度 | - 40 C |
| 通道数 | 1 Channel |
| 电源电压 - 最小 | 2.7 V |
| 最高工作温度 | + 125 C |
| 输入电压 | 70 V |
| RoHS | RoHS Compliant |
| 输出电压 | 5 V |
| No. of Amplifiers | :1 |
| 输入偏置电流 | :130µA |
| Amplifier Case Style | :MSOP |
| No. of Pins | :8 |
| CMRR | :100dB |
| Supply Voltage Min | :2.7V |
| Supply Voltage Max | :5.5V |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :125°C |
| MSL | :MSL 3 - 168 hours |
| SVHC | :No SVHC (20-Jun-2013) |
| Weight (kg) | 0.000025 |
| Tariff No. | 85423300 |
| RoHS指令 | Lead free / RoHS Compliant |
