TDN 3-4823WI

TDN 3-4823WI 系列

Traco Electronic 的 TDN 3-4823WI 系列是一款紧凑型 DC/DC 转换器，适用于需要精确电压调节的应用。该转换器输出 5V，电流为 23A，适用于需要稳定 5V 电源的各种电子设备。如果您正在从事涉及嵌入式系统、工业控制面板或任何需要清洁稳定电源供应的项目，这款转换器是一个不错的选择。

值得注意的是其效率；TDN 系列通常效率约为 90%，对于其尺寸和功率输出而言，这是一个相当不错的效率值。这意味着发热量较小，整体系统性能更好。工程师在需要提供稳定 5V 电源且不需要笨重电源供应单元的可靠且空间高效的解决方案时，往往会选用此款转换器。另一个实用的优势是其宽广的输入电压范围，可以从 12V 到 48V，使其适用于不同的应用和环境。

常见问答

内容由 AI 生成，仅供参考

加载中...

TDN 3-4823WI - 型号列表

共 165 个型号

制造商零件编号	产品类别	纹波	降额	效率	额定功率	额定电压	输出电流1	击穿电压	最小输入电压	尺寸	宽度	高度	长度	封装形式	连接方式	工作温度	输出电流2

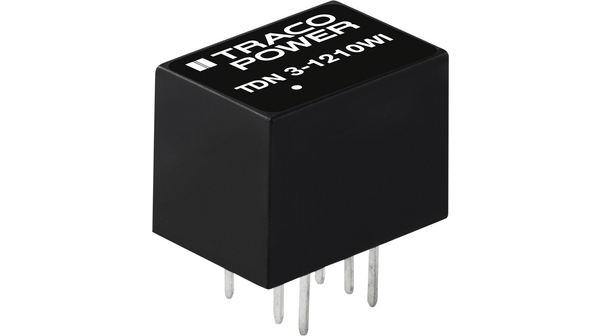

TDN3-1210WI DC/DC converter 4.5...18 VDC 3.3 VDC, TDN3-1210WI, Traco Power Traco Power	-	50 mVp-p	2.9%/K above 70°C	76 %	3	4.5...18 VDC	0.7 A	1600 VDC	3.3 VDC	13 x 9 x 10 mm	9	10	13	DIP	THD	-40...+70 °C	-
TDN3-1211WI DC/DC converter 4.5...18 VDC 5 VDC, TDN3-1211WI, Traco Power Traco Power	-	50 mVp-p	2.9%/K above 70°C	80 %	3	4.5...18 VDC	0.6 A	1600 VDC	5 VDC	13 x 9 x 10 mm	9	10	13	DIP	THD	-40...+70 °C	-
TDN3-1212WI DC/DC converter 4.5...18 VDC 12 VDC, TDN3-1212WI, Traco Power Traco Power	-	50 mVp-p	2.9%/K above 70°C	83 %	3	4.5...18 VDC	0.25 A	1600 VDC	12 VDC	13 x 9 x 10 mm	9	10	13	DIP	THD	-40...+70 °C	-
TDN3-1215WI DC/DC converter 4.5...18 VDC 24 VDC, TDN3-1215WI, Traco Power Traco Power	-	50 mVp-p	2.9%/K above 70°C	82 %	3	4.5...18 VDC	0.125 A	1600 VDC	24 VDC	13 x 9 x 10 mm	9	10	13	DIP	THD	-40...+70 °C	-
TDN3-1221WI DC/DC converter 4.5...18 VDC 5 VDC, TDN3-1221WI, Traco Power Traco Power	-	50 mVp-p	2.9%/K above 70°C	80 %	3	4.5...18 VDC	0.3 A	1600 VDC	5 VDC	13 x 9 x 10 mm	9	10	13	DIP	THD	-40...+70 °C	-0.3 A
TDN3-1223WI DC/DC converter 4.5...18 VDC 15 VDC, TDN3-1223WI, Traco Power Traco Power	-	50 mVp-p	2.9%/K above 70°C	82 %	3	4.5...18 VDC	0.1 A	1600 VDC	15 VDC	13 x 9 x 10 mm	9	10	13	DIP	THD	-40...+70 °C	-0.1 A
TDN3-1222WI DC/DC converter 4.5...18 VDC 12 VDC, TDN3-1222WI, Traco Power Traco Power	-	50 mVp-p	2.9%/K above 70°C	82 %	3	4.5...18 VDC	0.125 A	1600 VDC	12 VDC	13 x 9 x 10 mm	9	10	13	DIP	THD	-40...+70 °C	-0.125 A
TDN3-2410WI DC/DC converter 9...36 VDC 3.3 VDC, TDN3-2410WI, Traco Power Traco Power	-	50 mVp-p	2.9%/K above 70°C	77 %	3	9...36 VDC	0.7 A	1600 VDC	3.3 VDC	13 x 9 x 10 mm	9	10	13	DIP	THD	-40...+70 °C	-
TDN3-2411WI DC/DC converter 9...36 VDC 5 VDC, TDN3-2411WI, Traco Power Traco Power	-	50 mVp-p	2.9%/K above 70°C	80 %	3	9...36 VDC	0.6 A	1600 VDC	5 VDC	13 x 9 x 10 mm	9	10	13	DIP	THD	-40...+70 °C	-
TDN3-2412WI DC/DC converter 9...36 VDC 12 VDC, TDN3-2412WI, Traco Power Traco Power	-	50 mVp-p	2.9%/K above 70°C	83 %	3	9...36 VDC	0.25 A	1600 VDC	12 VDC	13 x 9 x 10 mm	9	10	13	DIP	THD	-40...+70 °C	-
TDN3-2415WI DC/DC converter 9...36 VDC 24 VDC, TDN3-2415WI, Traco Power Traco Power	-	50 mVp-p	2.9%/K above 70°C	82 %	3	9...36 VDC	0.125 A	1600 VDC	24 VDC	13 x 9 x 10 mm	9	10	13	DIP	THD	-40...+70 °C	-
TDN3-2421WI DC/DC converter 9...36 VDC 5 VDC, TDN3-2421WI, Traco Power Traco Power	-	50 mVp-p	2.9%/K above 70°C	80 %	3	9...36 VDC	0.3 A	1600 VDC	5 VDC	13 x 9 x 10 mm	9	10	13	DIP	THD	-40...+70 °C	-0.3 A
TDN3-2422WI DC/DC converter 9...36 VDC 12 VDC, TDN3-2422WI, Traco Power Traco Power	-	50 mVp-p	2.9%/K above 70°C	82 %	3	9...36 VDC	0.125 A	1600 VDC	12 VDC	13 x 9 x 10 mm	9	10	13	DIP	THD	-40...+70 °C	-0.125 A
TDN3-2423WI DC/DC converter 9...36 VDC 15 VDC, TDN3-2423WI, Traco Power Traco Power	-	50 mVp-p	2.9%/K above 70°C	82 %	3	9...36 VDC	0.1 A	1600 VDC	15 VDC	13 x 9 x 10 mm	9	10	13	DIP	THD	-40...+70 °C	-0.1 A
TDN3-4810WI DC/DC converter 18...75 VDC 3.3 VDC, TDN3-4810WI, Traco Power Traco Power	-	50 mVp-p	2.9%/K above 70°C	77 %	3	18...75 VDC	0.7 A	1600 VDC	3.3 VDC	13 x 9 x 10 mm	9	10	13	DIP	THD	-40...+70 °C	-
TDN3-4811WI DC/DC converter 18...75 VDC 5 VDC, TDN3-4811WI, Traco Power Traco Power	-	50 mVp-p	2.9%/K above 70°C	80 %	3	18...75 VDC	0.6 A	1600 VDC	5 VDC	13 x 9 x 10 mm	9	10	13	DIP	THD	-40...+70 °C	-
TDN3-4812WI DC/DC converter 18...75 VDC 12 VDC, TDN3-4812WI, Traco Power Traco Power	-	50 mVp-p	2.9%/K above 70°C	83 %	3	18...75 VDC	0.25 A	1600 VDC	12 VDC	13 x 9 x 10 mm	9	10	13	DIP	THD	-40...+70 °C	-
TDN3-4815WI DC/DC converter 18...75 VDC 24 VDC, TDN3-4815WI, Traco Power Traco Power	-	50 mVp-p	2.9%/K above 70°C	82 %	3	18...75 VDC	0.125 A	1600 VDC	24 VDC	13 x 9 x 10 mm	9	10	13	DIP	THD	-40...+70 °C	-
TDN3-4821WI DC/DC converter 18...75 VDC 5 VDC, TDN3-4821WI, Traco Power Traco Power	-	50 mVp-p	2.9%/K above 70°C	80 %	3	18...75 VDC	0.3 A	1600 VDC	5 VDC	13 x 9 x 10 mm	9	10	13	DIP	THD	-40...+70 °C	-0.3 A
TDN3-4822WI DC/DC converter 18...75 VDC 12 VDC, TDN3-4822WI, Traco Power Traco Power	-	50 mVp-p	2.9%/K above 70°C	82 %	3	18...75 VDC	0.125 A	1600 VDC	12 VDC	13 x 9 x 10 mm	9	10	13	DIP	THD	-40...+70 °C	-0.125 A

第 1 / 9 页
