ZWS300BAF36 powerproduct 系列

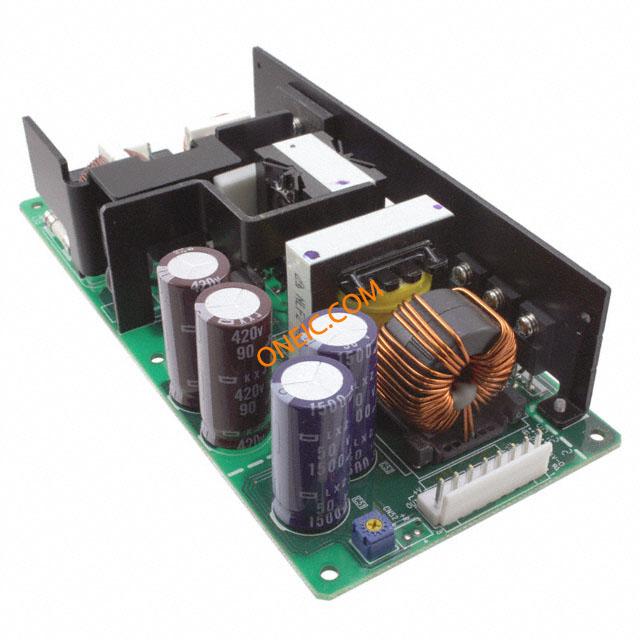

TDK-Lambda Corporation302W AC/DC电源供应器，输出电压36V，容量8.4A
TDK-Lambda Corporation 的 ZWS300BAF36 是一款 302W 的 AC/DC 电源供应器，提供 36V 输出和高达 8.4A 的电流额定值。如果您正在处理需要稳定高压直流电的应用项目，这些电源供应器是一个可靠的选择。它们常用于工业自动化、测试设备和医疗设备等领域，因为这些领域对精度和可靠性要求较高。
值得注意的是，它们具有紧凑的设计；尽管输出功率高，但体积仍然相对较小，非常适合空间受限的应用场景。当工程师们需要一个坚固且高压的直流解决方案时，通常会选用这种电源供应器，而不会受到较高容量电源供应器带来的笨重问题。其能够处理广泛的输入电压范围（通常是 90-264VAC），增加了其灵活性，确保它们可以在世界各地的各种环境中使用。
另一个实用的特点是其效率，通常在负载下可达到约 90%，这有助于减少热量产生并提高整体系统性能。ZWS300BAF36 还配备了先进的保护电路，包括过压、过流和过温保护，为敏感电子设备提供了安全保障。总体而言，这些电源供应器是需要可靠高性能电源解决方案的任何人的理想选择。
系列图片（9 张）
文档与媒体
常见问答
ZWS300BAF36 powerproduct - 型号列表
共 8 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 产品 | 标准包装数量 | RoHS | 认证机构 | 输出端 | 操作方式 | 效率 | 输出功率 | 功率（瓦） | 额定输出功率 | 额定电压 | 电源调整率 | 负载调整率 | 输出电流 | 输出数量 | 供电类型 | 最大功率（瓦特） | 最小输入电压 | 输出电流/通道 | 宽度 | 高度 | 长度 | 重量 | 安装类型 | 安装样式 | 面板安装类型 | 主要材料 | 尺寸/外形 | 类型 | 系列 | 产品特性 | 应用 | 制造商全称 | 配置 | 工作温度 | 其他名称 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 AC/DC CONVERT 36V 8.4A AC/DC CONVERTER 36V 8.4A 300W Linear and Switching Power Supplies 302W 36Vout 8.4A Power Supply W/PFC PowerSupply;AC-DC;36V@8.4A;85-265VIn;OpenFrame;PanelMnt;PFC;ZWS300BAFSeries TDK-Lambda Corporation | 10 | 1: ¥1,254.6265 | - | Switching Supplies | 1 | RoHS Compliant | CE, CSA, EN, UL | 36VDC@8.4A | PFC | 91% | 302.4 W | 300W | 300W | 85 VAC to 265 VAC, 120 VDC to 370 VDC | 144mV | 240mV | 36 VDC @ 8.4A | 1 | Switching (Open Frame) | 302W | 36V | 8.4 A | 3.31 in | 1.65 in | 7.09 in | 1.190 lbs | Chassis Mount | Chassis | Open Frame | AC/DC-DC | 7.09" L x 3.31" W x 1.54" H (180.0mm x 84.0mm x 39.0mm) | Standard Product | ZWS300BAF | 5-YearsWarranty | Commercial | ZWSSeries | Open-Frame | -10°C ~ 70°C | 285-2218 |
 AC/DC CONVERT 36V 8.4A AC/DC CONVERTER 36V 8.4A 300W Switching Power Supplies 302W 36Vout 8.4A Screw Terminals PowerSupply;AC-DC;36V@8.4A;85-265VIn;OpenFrame;PanelMnt;PFC;ZWS300BAFSeries TDK-Lambda Corporation | 0 | - | Switching Supplies | 1 | RoHS Compliant | CE, CSA, EN, UL | 36VDC@8.4A | PFC | 91% | 302.4 W | 300W | 300W | 85 VAC to 265 VAC, 120 VDC to 370 VDC | 144mV | 240mV | 36 VDC @ 8.4A | 1 | Switching (Open Frame) | 302W | 36V | 8.4 A | 3.31 in | 1.65 in | 7.09 in | 1.190 lbs | Chassis Mount | Chassis | Open Frame | AC/DC-DC | 7.09" L x 3.31" W x 1.54" H (180.0mm x 84.0mm x 39.0mm) | Standard Product | ZWS300BAF | 5-YearsWarranty | Commercial | ZWSSeries | Open-Frame | -10°C ~ 70°C | - | |
 AC/DC CONVERT 36V 8.4A AC/DC CONVERTER 36V 8.4A 300W Switching Power Supplies 302W 36Vout 8.4A With L Bracket PowerSupply;AC-DC;36V@8.4A;85-265VIn;OpenFrame;PanelMnt;PFC;ZWS300BAFSeries TDK-Lambda Corporation | 0 | - | Switching Supplies | 1 | RoHS Compliant | CE, CSA, EN, UL | 36VDC@8.4A | PFC | 91% | 302.4 W | 300W | 300W | 85 VAC to 265 VAC, 120 VDC to 370 VDC | 144mV | 240mV | 36 VDC @ 8.4A | 1 | Switching (Open Frame) | 302W | 36V | 8.4 A | 3.31 in | 1.65 in | 7.09 in | 1.190 lbs | Chassis Mount | Chassis | Open Frame | AC/DC-DC | 7.09" L x 3.31" W x 1.54" H (180.0mm x 84.0mm x 39.0mm) | Standard Product | ZWS300BAF | 5-YearsWarranty | Commercial | ZWSSeries | Open-Frame | -10°C ~ 70°C | - | |
 AC/DC CONVERT 36V 8.4A AC/DC CONVERTER 36V 8.4A 300W Switching Power Supplies 302W 36Vout 8.4A Screw Trmnl & L Brkt PowerSupply;AC-DC;36V@8.4A;85-265VIn;OpenFrame;PanelMnt;PFC;ZWS300BAFSeries TDK-Lambda Corporation | 0 | - | Switching Supplies | 1 | RoHS Compliant | CE, CSA, EN, UL | 36VDC@8.4A | PFC | 91% | 302.4 W | 300W | 300W | 85 VAC to 265 VAC, 120 VDC to 370 VDC | 144mV | 240mV | 36 VDC @ 8.4A | 1 | Switching (Open Frame) | 302W | 36V | 8.4 A | 3.31 in | 1.65 in | 7.09 in | 1.190 lbs | Chassis Mount | Chassis | Open Frame | AC/DC-DC | 7.09" L x 3.31" W x 1.54" H (180.0mm x 84.0mm x 39.0mm) | Standard Product | ZWS300BAF | 5-YearsWarranty | Commercial | ZWSSeries | Open-Frame | -10°C ~ 70°C | - | |
 AC/DC CONVERT 36V 8.4A AC/DC CONVERTER 36V 8.4A 300W Switching Power Supplies 302W 36Vout 8.4A With Remote On/Off PowerSupply;AC-DC;36V@8.4A;85-265VIn;OpenFrame;PanelMnt;PFC;ZWS300BAFSeries TDK-Lambda Corporation | 0 | - | Switching Supplies | 1 | RoHS Compliant | CE, CSA, EN, UL | 36VDC@8.4A | PFC | 91% | 302.4 W | 300W | 300W | 85 VAC to 265 VAC, 120 VDC to 370 VDC | 144mV | 240mV | 36 VDC @ 8.4A | 1 | Switching (Open Frame) | 302W | 36V | 8.4 A | 3.31 in | 1.65 in | 7.09 in | 1.190 lbs | Chassis Mount | Chassis | Open Frame | AC/DC-DC | 7.09" L x 3.31" W x 1.54" H (180.0mm x 84.0mm x 39.0mm) | Standard Product | ZWS300BAF | 5-YearsWarranty,RemoteOn,Off | Commercial | ZWSSeries | Open-Frame | -10°C ~ 70°C | - | |
 AC/DC CONVERT 36V 8.4A AC/DC CONVERTER 36V 8.4A 300W Switching Power Supplies 302W 36Vout 8.4A PCB Coating PowerSupply;AC-DC;36V@8.4A;85-265VIn;OpenFrame;PanelMnt;PFC;ZWS300BAFSeries TDK-Lambda Corporation | 0 | - | Switching Supplies | 1 | RoHS Compliant | CE, CSA, EN, UL | 36VDC@8.4A | PFC | 91% | 302.4 W | 300W | 300W | 85 VAC to 265 VAC, 120 VDC to 370 VDC | 144mV | 240mV | 36 VDC @ 8.4A | 1 | Switching (Open Frame) | 302W | 36V | 8.4 A | 3.31 in | 1.65 in | 7.09 in | 1.190 lbs | Chassis Mount | Chassis | Open Frame | AC/DC-DC | 7.09" L x 3.31" W x 1.54" H (180.0mm x 84.0mm x 39.0mm) | Standard Product | ZWS300BAF | 5-YearsWarranty,PCBCoating | Commercial | ZWSSeries | Open-Frame | -10°C ~ 70°C | - | |
 AC/DC CONVERT 36V 8.4A AC/DC CONVERTER 36V 8.4A 300W Linear and Switching Power Supplies 302W 36Vout 8.4A Cover and L Bracket PowerSupply;AC-DC;36V@8.4A;85-265VIn;Enclosed;PanelMount;PFC;ZWS300BAFSeries TDK-Lambda Corporation | 0 | - | Switching Supplies | 1 | RoHS Compliant | CE, CSA, EN, UL | 36VDC@8.4A | PFC | 91% | 302.4 W | 300W | 300W | 85 VAC to 265 VAC, 120 VDC to 370 VDC | 144mV | 240mV | 36 VDC @ 8.4A | 1 | Switching (Closed Frame) | 302W | 36V | 8.4 A | 3.31 in | 1.65 in | 7.09 in | 1.190 lbs | Chassis Mount | Chassis | Open Frame | AC/DC-DC | 7.09" L x 3.31" W x 1.54" H (180.0mm x 84.0mm x 39.0mm) | Standard Product | ZWS300BAF | 5-YearsWarranty | Commercial | ZWSSeries | Enclosed | -10°C ~ 70°C | - | |
 AC/DC CONVERT 36V 8.4A AC/DC CONVERTER 36V 8.4A 300W Switching Power Supplies 302W 36Vout 8.4A Screw Trmnls & Cover PowerSupply;AC-DC;36V@8.4A;85-265VIn;Enclosed;PanelMount;PFC;ZWS300BAFSeries TDK-Lambda Corporation | 0 | - | Switching Supplies | 1 | RoHS Compliant | CE, CSA, EN, UL | 36VDC@8.4A | PFC | 91% | 302.4 W | 300W | 300W | 85 VAC to 265 VAC, 120 VDC to 370 VDC | 144mV | 240mV | 36 VDC @ 8.4A | 1 | Switching (Closed Frame) | 302W | 36V | 8.4 A | 3.31 in | 1.65 in | 7.09 in | 1.190 lbs | Chassis Mount | Chassis | Open Frame | AC/DC-DC | 7.09" L x 3.31" W x 1.54" H (180.0mm x 84.0mm x 39.0mm) | Standard Product | ZWS300BAF | 5-YearsWarranty | Commercial | ZWSSeries | Enclosed | -10°C ~ 70°C | - |
