ZWS300BAF24 powerproduct 系列

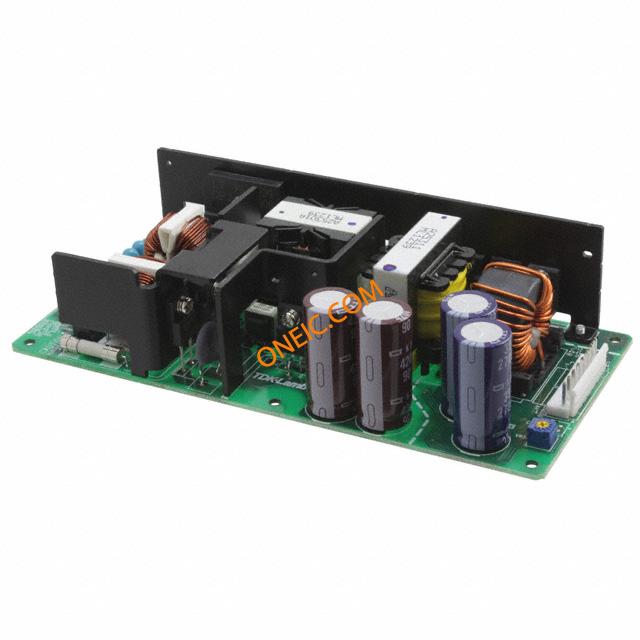

TDK-Lambda Corporation300W AC/DC电源供应器，输出电压24V，容量12.5A
TDK-Lambda Corporation 的 ZWS300BAF24 是一款300W 的交流/直流电源供应器，可提供24V 电压和12.5A 电流。如果您正在从事需要稳定可靠的电子或工业应用电源项目，这款单元可能是一个不错的选择。它体积小巧且效率高，非常适合空间受限的环境。值得一提的是，其宽广的输入电压范围通常从85VAC 到264VAC，确保在不同电源条件下都能表现出色。当工程师需要一个简单且容量高的电源供应器，而不愿采用复杂定制解决方案时，往往会选择这款产品。此外，其设计还支持热插拔功能，这对于操作系统的维护和升级非常有利。另一个实用的好处是具备功率因数校正（PFC）功能，有助于提高整个系统的效率并减少谐波失真，使其成为对电源质量要求较高的环境的理想选择。
系列图片（9 张）
文档与媒体
常见问答
ZWS300BAF24 powerproduct - 型号列表
共 8 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 产品 | 标准包装数量 | RoHS | 认证机构 | 效率 | 输出功率 | 功率（瓦） | 额定电压 | 电源调整率 | 负载调整率 | 输出电流 | 输出数量 | 供电类型 | 最大功率（瓦特） | 最小输入电压 | 输出电流/通道 | 宽度 | 高度 | 长度 | 重量 | 安装类型 | 安装样式 | 面板安装类型 | 尺寸/外形 | 类型 | 系列 | 应用 | 工作温度 | 输出端 | 操作方式 | 额定输出功率 | 主要材料 | 产品特性 | 制造商全称 | 配置 | 其他名称 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 AC/DC CONVERT 24V 12.5A AC/DC CONVERTER 24V 12.5A 300W Linear and Switching Power Supplies 300W 24Vout 12.5A Power Supply W/PFC PowerSupply;AC-DC;24V@12.5A;85-265VIn;OpenFrame;PanelMnt;PFC;ZWS300BAFSeries TDK-Lambda Corporation | 28 | 1: ¥2,434.9515 | - | Switching Supplies | 1 | RoHS Compliant | CE, CSA, EN, UL | 91% | 300 W | 300W | 85 VAC to 265 VAC, 120 VDC to 370 VDC | 96mV | 150mV | 24 VDC @ 12.5A | 1 | Switching (Open Frame) | 300W | 24V | 12.5 A | 3.31 in | 1.65 in | 7.09 in | 1.190 lbs | Chassis Mount | Chassis | Open Frame | 7.09" L x 3.31" W x 1.54" H (180.0mm x 84.0mm x 39.0mm) | Standard Product | ZWS300BAF | Commercial | -10°C ~ 70°C | 24VDC@12.5A | PFC | 300W | AC/DC-DC | 5-YearsWarranty | ZWSSeries | Open-Frame | 285-2220 |
 AC/DC CONVERT 24V 12.5A AC/DC CONVERTER 24V 12.5A 300W Switching Power Supplies 300W 24Vout 12.5A Screw Terminals PowerSupply;AC-DC;24V@12.5A;85-265VIn;OpenFrame;PanelMnt;PFC;ZWS300BAFSeries TDK-Lambda Corporation | 0 | - | Switching Supplies | 1 | RoHS Compliant | CE, CSA, EN, UL | 91% | 300 W | 300W | 85 VAC to 265 VAC, 120 VDC to 370 VDC | 96mV | 150mV | 24 VDC @ 12.5A | 1 | Switching (Open Frame) | 300W | 24V | 12.5 A | 3.31 in | 1.65 in | 7.09 in | 1.190 lbs | Chassis Mount | Chassis | Open Frame | 7.09" L x 3.31" W x 1.54" H (180.0mm x 84.0mm x 39.0mm) | Standard Product | ZWS300BAF | Commercial | -10°C ~ 70°C | 24VDC@12.5A | PFC | 300W | AC/DC-DC | 5-YearsWarranty | ZWSSeries | Open-Frame | - | |
 AC/DC CONVERT 24V 12.5A AC/DC CONVERTER 24V 12.5A 300W Switching Power Supplies 300W 24Vout 12.5A Screw Trmnl & L Brkt TDK-Lambda Corporation | 0 | - | Switching Supplies | 1 | RoHS Compliant | CE, CSA, EN, UL | 91% | 300 W | 300W | 85 VAC to 265 VAC, 120 VDC to 370 VDC | 96mV | 150mV | 24 VDC @ 12.5A | 1 | Switching (Open Frame) | 300W | 24V | 12.5 A | 3.31 in | 1.65 in | 7.09 in | 1.190 lbs | Chassis Mount | Chassis | Open Frame | 7.09" L x 3.31" W x 1.54" H (180.0mm x 84.0mm x 39.0mm) | Standard Product | ZWS300BAF | Commercial | -10°C ~ 70°C | - | - | - | - | - | - | - | - | |
 AC/DC CONVERT 24V 12.5A AC/DC CONVERTER 24V 12.5A 300W Switching Power Supplies 300W 24Vout 12.5A With Remote On/Off PowerSupply;AC-DC;24V@12.5A;85-265VIn;OpenFrame;PanelMnt;PFC;ZWS300BAFSeries TDK-Lambda Corporation | 0 | - | Switching Supplies | 1 | RoHS Compliant | CE, CSA, EN, UL | 91% | 300 W | 300W | 85 VAC to 265 VAC, 120 VDC to 370 VDC | 96mV | 150mV | 24 VDC @ 12.5A | 1 | Switching (Open Frame) | 300W | 24V | 12.5 A | 3.31 in | 1.65 in | 7.09 in | 1.190 lbs | Chassis Mount | Chassis | Open Frame | 7.09" L x 3.31" W x 1.54" H (180.0mm x 84.0mm x 39.0mm) | Standard Product | ZWS300BAF | Commercial | -10°C ~ 70°C | 24VDC@12.5A | PFC | 300W | AC/DC-DC | 5-YearsWarranty,RemoteOn,Off | ZWSSeries | Open-Frame | - | |
 AC/DC CONVERT 24V 12.5A AC/DC CONVERTER 24V 12.5A 300W Switching Power Supplies 300W 24Vout 12.5A With L Bracket PowerSupply;AC-DC;24V@12.5A;85-265VIn;OpenFrame;PanelMnt;PFC;ZWS300BAFSeries TDK-Lambda Corporation | 0 | - | Switching Supplies | 1 | RoHS Compliant | CE, CSA, EN, UL | 91% | 300 W | 300W | 85 VAC to 265 VAC, 120 VDC to 370 VDC | 96mV | 150mV | 24 VDC @ 12.5A | 1 | Switching (Open Frame) | 300W | 24V | 12.5 A | 3.31 in | 1.65 in | 7.09 in | 1.190 lbs | Chassis Mount | Chassis | Open Frame | 7.09" L x 3.31" W x 1.54" H (180.0mm x 84.0mm x 39.0mm) | Standard Product | ZWS300BAF | Commercial | -10°C ~ 70°C | 24VDC@12.5A | PFC | 300W | AC/DC-DC | 5-YearsWarranty | ZWSSeries | Open-Frame | - | |
 AC/DC CONVERT 24V 12.5A AC/DC CONVERTER 24V 12.5A 300W Switching Power Supplies 300W 24Vout 12.5A Screw Trmnls & Cover PowerSupply;AC-DC;24V@12.5A;85-265VIn;Enclosed;PanelMount;PFC;ZWS300BAFSeries TDK-Lambda Corporation | 0 | - | Switching Supplies | 1 | RoHS Compliant | CE, CSA, EN, UL | 91% | 300 W | 300W | 85 VAC to 265 VAC, 120 VDC to 370 VDC | 96mV | 150mV | 24 VDC @ 12.5A | 1 | Switching (Closed Frame) | 300W | 24V | 12.5 A | 3.31 in | 1.65 in | 7.09 in | 1.190 lbs | Chassis Mount | Chassis | Open Frame | 7.09" L x 3.31" W x 1.54" H (180.0mm x 84.0mm x 39.0mm) | Standard Product | ZWS300BAF | Commercial | -10°C ~ 70°C | 24VDC@12.5A | PFC | 300W | AC/DC-DC | 5-YearsWarranty | ZWSSeries | Enclosed | - | |
 AC/DC CONVERT 24V 12.5A AC/DC CONVERTER 24V 12.5A 300W Switching Power Supplies 300W 24Vout 12.5A PCB Coating PowerSupply;AC-DC;24V@12.5A;85-265VIn;OpenFrame;PanelMnt;PFC;ZWS300BAFSeries TDK-Lambda Corporation | 0 | - | Switching Supplies | 1 | RoHS Compliant | CE, CSA, EN, UL | 91% | 300 W | 300W | 85 VAC to 265 VAC, 120 VDC to 370 VDC | 96mV | 150mV | 24 VDC @ 12.5A | 1 | Switching (Open Frame) | 300W | 24V | 12.5 A | 3.31 in | 1.65 in | 7.09 in | 1.190 lbs | Chassis Mount | Chassis | Open Frame | 7.09" L x 3.31" W x 1.54" H (180.0mm x 84.0mm x 39.0mm) | Standard Product | ZWS300BAF | Commercial | -10°C ~ 70°C | 24VDC@12.5A | PFC | 300W | AC/DC-DC | 5-YearsWarranty,PCBCoating | ZWSSeries | Open-Frame | - | |
 AC/DC CONVERT 24V 12.5A AC/DC CONVERTER 24V 12.5A 300W Switching Power Supplies 300W 24Vout 12.5A Cover and L Bracket PowerSupply;AC-DC;24V@12.5A;85-265VIn;Enclosed;PanelMount;PFC;ZWS300BAFSeries TDK-Lambda Corporation | 0 | - | Switching Supplies | 1 | RoHS Compliant | CE, CSA, EN, UL | 91% | 300 W | 300W | 85 VAC to 265 VAC, 120 VDC to 370 VDC | 96mV | 150mV | 24 VDC @ 12.5A | 1 | Switching (Closed Frame) | 300W | 24V | 12.5 A | 3.31 in | 1.65 in | 7.09 in | 1.190 lbs | Chassis Mount | Chassis | Open Frame | 7.09" L x 3.31" W x 1.54" H (180.0mm x 84.0mm x 39.0mm) | Standard Product | ZWS300BAF | Commercial | -10°C ~ 70°C | 24VDC@12.5A | PFC | 300W | AC/DC-DC | 5-YearsWarranty | ZWSSeries | Enclosed | - |
