ZB5AA34 pushbutton switche 系列
Schneider Electric SE耐用的按钮开关，有多种颜色和设计
施耐德电气SE生产的ZB5AA34推按钮开关系列提供了一系列耐用、颜色编码且适用于工业用途的按钮开关。这些开关常用于控制面板、机械设备等关键操作可靠性要求高的场合。如果您正在从事工业自动化项目，这些开关为集成用户输入提供了简便的方式。值得注意的是，它们有多种颜色可供选择，这有助于在控制面板中快速识别不同的功能或状态。工程师通常会选择这种坚固、易于识别且能在恶劣环境中正常工作的输入设备。设计上的多样性也使其更容易与现有的美学要求相匹配，因此它们既适合新安装也适合改造项目。
系列图片（10 张）
文档与媒体
常见问答
内容由 AI 生成，仅供参考
加载中...
03
ZB5AA34 pushbutton switche - 型号列表
共 6 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 形状 | 防护等级 | 工作温度 | 标准 | 防护类型 | 认证 | 操作方式 | 开关功能 | 25°C时电阻（典型） | 电容比测试条件 | 颜色 | 重量 | 材料（通用） | 头部样式 | 芯径 | 安装类型 | 总深度 | 总宽度 | 总高度 | 框架材料 | 连接器颜色 | 面板开孔形状 | 开关驱动电平 | 安装面板厚度 | 系列 | 按钮类型 | 打印机名称 | 产品子类型 | 测量范围 | 单元数量 | 设备简称 | 用户配置 | 控制/显示类型 | 其他规格 | 密封等级 | 机械寿命 | NEMA 机架尺寸 | 抗冲击能力 | 存储接口 | 防护处理 | 抗振性 | 产品特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

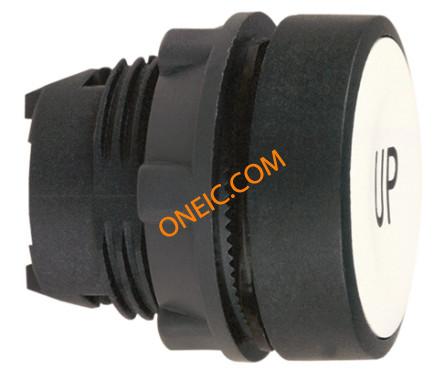

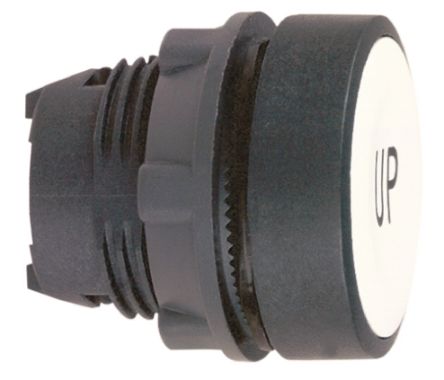

 PUSHBUTTON OPERATOR HEAD Pushbutton Switches 22MM GRN PSH BTTN W/ UP CAP Schneider Electric component ZB5AA343: green flush pushbutton head XB5 弹簧复位 按钮头, 白色按钮 Schneider Electric | 10 | 1: ¥169.66 | - | Round | IP66 conforming to IEC 60529 | +70°C | CSA C22-2 No 14EN/IEC 60947-1EN/IEC 60947-5-1EN/IEC 60947-5-4JIS C 4520UL 508 | Class II conforming to IEC 60536 | BVCSADNVGLLROS (Lloyds register of shipping)RINAUL listed | 弹簧复位 | ON - (OFF) | 7000000 Pa at 55 °C,distance: 0.1 m | Green | 白色 | 0.018 kg | Nylon | Round | 22mm | Panel | 28 mm | 29 mm | 29 mm | Plastic | White | 22mm | Spring Return | 22 mm | XB5 | 圆形 | XALD 1...5 cut-outsXALK 2...5 cut-outs | Head for non-illuminated pushbutton | Harmony XB5 | 1 | ZB5 | White flush, black UP | Spring return | C1 for <= 9 contacts using single blocks in front mountingC2 for <= 9 contacts using single and double blocks in front mountingC11 for <= 3 contacts using single blocks in front mountingC15 for 1 contacts using single blocks in front mountingSF1 for <= 3 contacts using single blocks in front mountingSR1 for <= 3 contacts using single blocks in rear mounting | IP66 | 5000000 cycles | NEMA 13NEMA 4X | 30 gn for 18 ms half sine wave acceleration conforming to IEC 60068-2-2750 gn for 11 ms half sine wave acceleration conforming to IEC 60068-2-27 | -40...70 °C | TH | 5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6 | - |

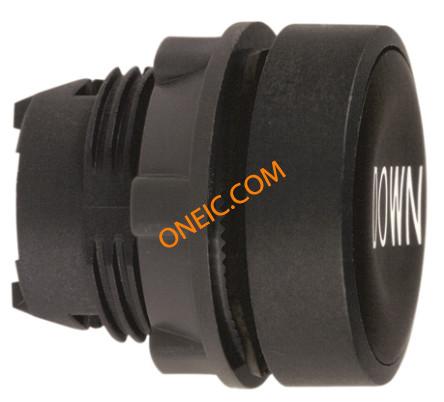

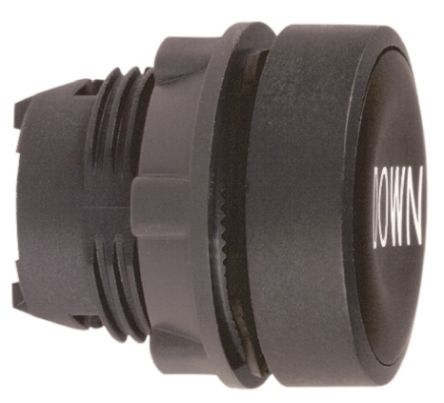

 PUSHBUTTON OPERATOR HEAD Pushbutton Switches 22MM BLK PSH BTTN W/ WHTEDOWN CAP Schneider Electric component ZB5AA344: green flush pushbutton head XB5 弹簧复位 按钮头, 黑色按钮 Schneider Electric | 10 | 1: ¥37.96 | - | Round | IP66 conforming to IEC 60529 | +70°C | CSA C22-2 No 14EN/IEC 60947-1EN/IEC 60947-5-1EN/IEC 60947-5-4JIS C 4520UL 508 | Class II conforming to IEC 60536 | BVCSADNVGLLROS (Lloyds register of shipping)RINAUL listed | 弹簧复位 | ON - (OFF) | 7000000 Pa at 55 °C,distance: 0.1 m | Green | 黑色 | 0.018 kg | Nylon | Round | 22mm | Panel | 28 mm | 29 mm | 29 mm | Plastic | Black | 22mm | Spring Return | 22 mm | XB5 | 圆形 | XALD 1...5 cut-outsXALK 2...5 cut-outs | Head for non-illuminated pushbutton | Harmony XB5 | 1 | ZB5 | Black flush, white down | Spring return | C1 for <= 9 contacts using single blocks in front mountingC2 for <= 9 contacts using single and double blocks in front mountingC11 for <= 3 contacts using single blocks in front mountingC15 for 1 contacts using single blocks in front mountingSF1 for <= 3 contacts using single blocks in front mountingSR1 for <= 3 contacts using single blocks in rear mounting | IP66 | 5000000 cycles | NEMA 13NEMA 4X | 30 gn for 18 ms half sine wave acceleration conforming to IEC 60068-2-2750 gn for 11 ms half sine wave acceleration conforming to IEC 60068-2-27 | -40...70 °C | TH | 5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6 | - |

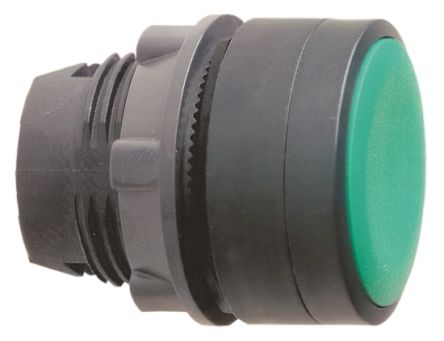

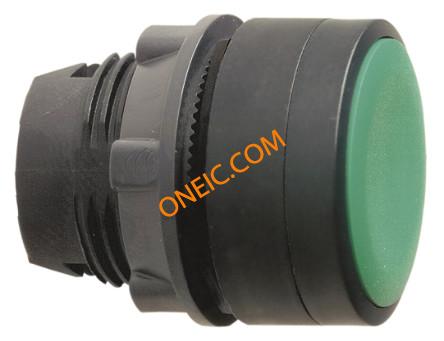

 PUSHBUTTON OPERATOR HEAD Pushbutton Switches FLUSH W/HIGH GUARD GRN Schneider Electric component ZB5AA34: green flush pushbutton head XB5 弹簧复位 按钮头, 绿色按钮 Schneider Electric | 10 | 1: ¥65.65 | - | Round | IP66 conforming to IEC 60529 | +70°C | CSA C22-2 No 14EN/IEC 60947-1EN/IEC 60947-5-1EN/IEC 60947-5-4JIS C 4520UL 508 | Class II conforming to IEC 60536 | BVCSADNVGLLROS (Lloyds register of shipping)RINAUL listed | 弹簧复位 | ON - (OFF) | 7000000 Pa at 55 °C,distance: 0.1 m | Green | 绿色 | 0.02 kg | Nylon | Round | 22mm | Panel | 31 mm | 29 mm | 29 mm | Plastic | Green | 22mm | Spring Return | 22 mm | XB5 | 圆形 | XALD 1...5 cut-outsXALK 2...5 cut-outs | Head for non-illuminated pushbutton | Harmony XB5 | 1 | ZB5 | Green flush unmarked | Spring return | C1 for <= 9 contacts using single blocks in front mountingC2 for <= 9 contacts using single and double blocks in front mountingC11 for <= 3 contacts using single blocks in front mountingC15 for 1 contacts using single blocks in front mountingSF1 for <= 3 contacts using single blocks in front mountingSR1 for <= 3 contacts using single blocks in rear mounting | IP66 | 5000000 cycles | NEMA 13NEMA 4X | 30 gn for 18 ms half sine wave acceleration conforming to IEC 60068-2-2750 gn for 11 ms half sine wave acceleration conforming to IEC 60068-2-27 | -40...70 °C | TH | 5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6 | High guard |

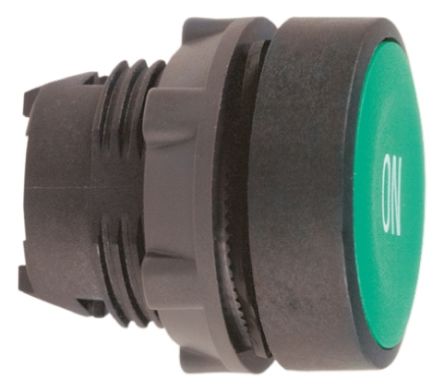

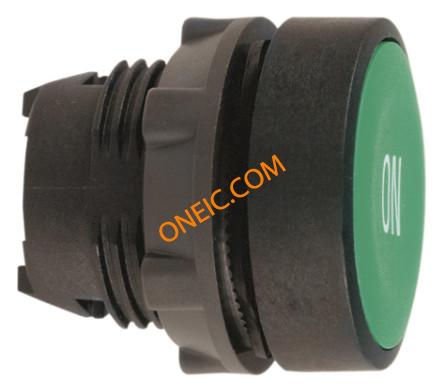

 PUSHBUTTON OPERATOR HEAD Pushbutton Switches FLUSH GRN W/WHT ON MARKING XB5 弹簧复位 按钮头, 绿色按钮 Schneider Electric | 10 | 1: ¥44.73 | - | Round | IP66 | +70°C | - | - | - | 弹簧复位 | ON - (OFF) | - | Green | 绿色 | - | Nylon | Round | 22mm | Panel | - | - | - | - | Green | 22mm | Spring Return | - | XB5 | 圆形 | - | - | - | - | - | - | - | - | IP66 | - | - | - | - | - | - | - |
 | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
 | 0 | - | Round | IP66 conforming to IEC 60529 | -25...70 °C | CSA C22-2 No 14EN/IEC 60947-1EN/IEC 60947-5-1EN/IEC 60947-5-4JIS C 4520UL 508 | Class II conforming to IEC 60536 | BVCSADNVGLLROS (Lloyds register of shipping)RINAUL listed | - | - | 7000000 Pa at 55 °C,distance: 0.1 m | - | - | 0.018 kg | - | - | - | - | 28 mm | 29 mm | 29 mm | Plastic | - | - | - | 22 mm | - | - | XALD 1...5 cut-outsXALK 2...5 cut-outs | Head for non-illuminated pushbutton | Harmony XB5 | 1 | ZB5 | Green flush, white MARCHE | Spring return | C1 for <= 9 contacts using single blocks in front mountingC2 for <= 9 contacts using single and double blocks in front mountingC11 for <= 3 contacts using single blocks in front mountingC15 for 1 contacts using single blocks in front mountingSF1 for <= 3 contacts using single blocks in front mountingSR1 for <= 3 contacts using single blocks in rear mounting | - | 5000000 cycles | NEMA 13NEMA 4X | 30 gn for 18 ms half sine wave acceleration conforming to IEC 60068-2-2750 gn for 11 ms half sine wave acceleration conforming to IEC 60068-2-27 | -40...70 °C | TH | 5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6 | - |
第 1 / 1 页
