XVBC6G tools & supplie

XVBC6G tools & supplie 系列

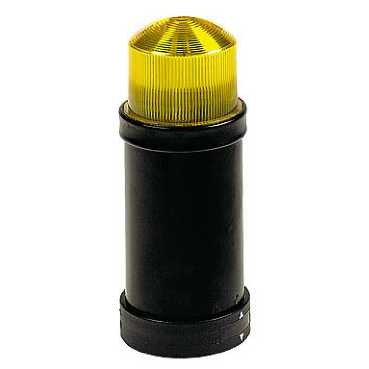

120V AC 闪烁单元，用于各种颜色的听力和视力辅助设备

施耐德电气SE生产的XVBC6G系列包含120V AC频闪灯单元，适用于各种颜色的听觉和视觉辅助设备。这些单元通常用于紧急信号应用，如火灾报警、疏散系统和安全设备。如果您正在处理可能因听不到或忽视声音警报而需要视觉警报的项目，这些频闪灯将非常有价值。值得注意的是，它们能提供一个清晰、引人注意的视觉提示，有助于确保人们注意到关键警报，尤其是在嘈杂或拥挤的环境中。工程师在需要一个可靠且显眼的信号以克服其他干扰并迅速吸引对重要情况的注意力时，往往会选择这种频闪灯。

系列图片（3 张）

文档与媒体

在线文档

product.aspx?productid=XVBC6G7&dist=563&org=49&lang=1

在线文档

product.aspx?productid=XVBC6G8&dist=563&org=49&lang=1

在线文档

product.aspx?productid=XVBC6G5&dist=563&org=49&lang=1

常见问答

内容由 AI 生成，仅供参考

加载中...

XVBC6G tools & supplie - 型号列表

共 6 个型号

光源

Orange integral flash discharge tube(1)Red integral flash discharge tube(1)Yellow integral flash discharge tube(1)

制造商零件编号	库存	价格	产品类别	产品	标准	防护类型	认证	灯泡类型	接口	光源	额定电压	供电电压	过渡频率	静态电流 (Iq)	击穿电压（V(BR)GSS）	重量	材料（通用）	第一连接器	安装样式	总深度	总宽度	总高度	供应商器件封装	安装面板厚度	能量	产品子类型	测量范围	其他规格	NEMA 机架尺寸	存储接口	防护等级	防护处理
XVBC6G7 Hearing & Vision Aids CLEAR STROBE UNIT 5 JOULE 120V AC Schneider Electric component XVBC6G7: � 70 mm illuminated unit - flashing - clear - IP65 - 120 V Schneider Electric	10	1: ¥1,664.64	-	Industrial Lighting	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
XVBC6G6 Hearing & Vision Aids BLUE 120 VOLT 5 JOULE STROBE -AC Schneider Electric	10	1: ¥1,664.64	-	Industrial Lighting	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
XVBC6G5 Hearing & Vision Aids ORANGE 120 VOLT 5 JOULE STROBE AC Schneider Electric component XVBC6G5: Schneider Electric	10	1: ¥1,664.64	-	Industrial Lighting	EN/IEC 60947-5-1	Class I on support tube conforming to IEC 61140Class II on base unit conforming to IEC 61140	CCCCSA C22-2 No 14GOSTUL 508	Flash discharge tube	Flashing	Orange integral flash discharge tube	0.85...1.1 Un conforming to IEC 60947-5-1	120 V AC	1 Hz	< 140 mA AC	4 kV conforming to IEC 60947-1	0.28 kg	Polycarbonate	Screw clamp terminals: <= 1 x 1.5 mm ² with cable end	Customer assembly, up to 5 units	70 mm	70 mm	157 mm	XVBC	70 mm	5 J	Indicator bank	Harmony XVB Universal	Illuminated unit	NEMA 4X indoor conforming to UL 508	-40...70 °C	IP65 on fixing base XVBZ0. conforming to IEC 60529IP66 on base unit conforming to IEC 60529	TC
XVBC6G4 Hearing & Vision Aids RED STROBE UNIT 5 JOULE 120V AC Schneider Electric component XVBC6G4: Schneider Electric	10	1: ¥1,664.64	-	Industrial Lighting	EN/IEC 60947-5-1	Class I on support tube conforming to IEC 61140Class II on base unit conforming to IEC 61140	CCCCSA C22-2 No 14GOSTUL 508	Flash discharge tube	Flashing	Red integral flash discharge tube	0.85...1.1 Un conforming to IEC 60947-5-1	120 V AC	1 Hz	< 140 mA AC	4 kV conforming to IEC 60947-1	0.28 kg	Polycarbonate	Screw clamp terminals: <= 1 x 1.5 mm ² with cable end	Customer assembly, up to 5 units	70 mm	70 mm	157 mm	XVBC	70 mm	5 J	Indicator bank	Harmony XVB Universal	Illuminated unit	NEMA 4X indoor conforming to UL 508	-40...70 °C	IP65 on fixing base XVBZ0. conforming to IEC 60529IP66 on base unit conforming to IEC 60529	TC
XVBC6G8 Schneider Electric component XVBC6G8: Schneider Electric	0		-	-	EN/IEC 60947-5-1	Class I on support tube conforming to IEC 61140Class II on base unit conforming to IEC 61140	CCCCSA C22-2 No 14GOSTUL 508	Flash discharge tube	Flashing	Yellow integral flash discharge tube	0.85...1.1 Un conforming to IEC 60947-5-1	120 V AC	1 Hz	< 140 mA AC	4 kV conforming to IEC 60947-1	0.28 kg	Polycarbonate	Screw clamp terminals: <= 1 x 1.5 mm ² with cable end	Customer assembly, up to 5 units	70 mm	70 mm	157 mm	XVBC	70 mm	5 J	Indicator bank	Harmony XVB Universal	Illuminated unit	NEMA 4X indoor conforming to UL 508	-40...70 °C	IP65 on fixing base XVBZ0. conforming to IEC 60529IP66 on base unit conforming to IEC 60529	TC
XVBC6G3 Schneider	0		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
