VIPER06 semiconductor 系列
STMicroelectronics N.V.适用于电源应用的紧凑型AC/DC开关稳压器
STMicroelectronics的VIPER06系列产品是一系列紧凑型AC/DC开关稳压器，适用于广泛的动力供应应用。这些转换器非常适合希望在空间受限的设计中集成高效功率转换的工程师。如果您正在开发便携式设备、物联网设备或需要从交流电输入获得干净稳定的直流输出的任何系统，这些转换器都值得考虑。
值得注意的一点是它们的小尺寸——尽管体积小巧，但它们仍能提供高效率并处理一定的功率范围，使其适用于从低瓦数到中等功率需求的各种应用。另一个实用的好处是它们对输入电压波动具有较强的抗扰性，在电源质量可能不稳定的工作环境中这一点尤为重要。当工程师需要可靠的、节省空间的功率转换解决方案而又不牺牲性能时，往往会选择这种转换器。
系列图片（15 张）
文档与媒体
常见问答
VIPER06 semiconductor - 型号列表
共 9 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准包装数量 | RoHS | 功率（瓦） | 频率范围 | 输出电流 | 占空比（最大） | 输出隔离 | 供电电压 | 输出数量 | 击穿电压 | 开关频率 | 最小输入电压 | 包装方式 | 安装样式 | 封装形式 | 供应商器件封装 | 类型 | 工作温度 | 输出功率 | 其他名称 | 汽车级 | 无铅定义 | 频率 | 输出电流1 | 最高温度限值 | 最小起订量 | 单位包装 | 工厂包装数量 | 标准封装名称 | 欧盟RoHS | 宽度 | 引脚样式 | 安装类型 | 总长度 | 包装数量 | 位数 | 外壳尺寸-插件 | 系列 | 印刷电路板数量 | 供电电流 | 制造商全称 | 额定电压 | 最大功率 | 匹配码 | 标准交期 | 引脚数 | 输入功率 | 电压基准 | 高度 | 长度 | 尺寸/外形 | SVHC | 海关税号 | 重量 | 材料表面处理 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

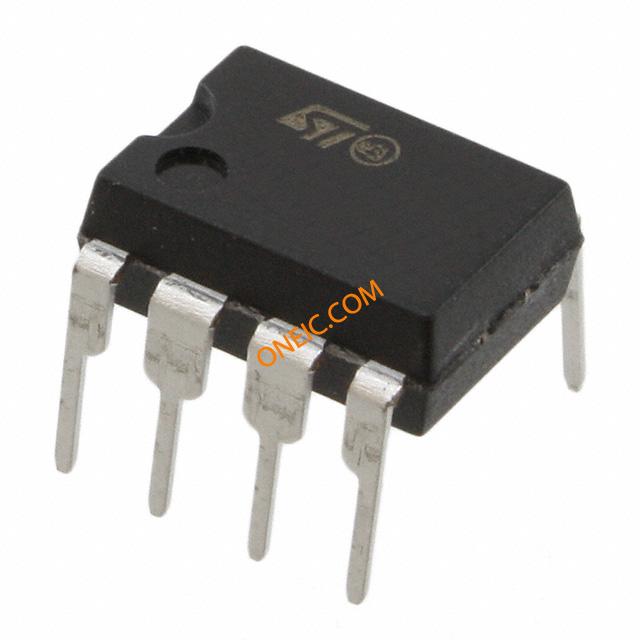

 Off Line Converter 7-Pin DIP Tube AC to DC Switching Converter Off-Line Switcher 103kHz to 127kHz 7-Pin DIP VIPERPLUS IC OFFLINE SWITCH PWM SMPS 7PDIP AC/DC Converters VIPer 800V Plus Fixed Freq 115kHz SMPS PDIP-7 THT stmicroelectronics | 270 | 6: ¥12.1326 | - | Bulk | Lead free / RoHS Compliant | 8W | 103kHz ~ 127kHz | 1.6 mA | 80 % | Isolated | 11.5 V | 1 | 800V | 115 kHz | 85 V ~ 265 VAC | Tube | Through Hole | 7DIP | 7-DIP | PWM Low-Standby High Performance Controller | -40 to 150 °C | 30 mW | 497-12990-5 | NO | RoHS-conform | 115000 Hz | 2.5 A | 150 °C | 2000 | 50 | 50 | DIP | Compliant | 6.35 | Through Hole | Through Hole | 9.27 | DIP | 7 | 3.3 | VIPER06 | 7 | 1.6 mA | STMicroelectronics | - | 8W | - | - | - | - | - | - | - | - | - | - | - | - |
 AC to DC Switching Converter Off-Line Switcher 54kHz to 66kHz 10-Pin SSO SMPS SSOP-10 SMD IC OFFLINE SWITCH PWM 10-SSOP AC/DC Converters VIPer 800V Plus Fixed Freq 60kHz Power Supply IC SSO-10, VIPER06LSTR, ST 交直流转换器, 10引脚 SSO封装 STMicroelectronics | 2500 | 2500: ¥2.8866 | - | 2,500 | Lead free / RoHS Compliant | 8W | 54kHz ~ 66kHz | 1.45 mA | 80 % | Isolated | 23.5 V | 1 | 800V | 60 kHz | 4.8V | Tape & Reel (TR) | SMD/SMT | SSOP-20 | 10-SSO | SMPS | -40°C | 30 mW | 497-13033-2 | NO | RoHS-conform | 60000Hz | 2.5A | 150°C | 2500 | 2500 | - | SSOP | Compliant | 3.9 | Gull-wing | Surface Mount | 4.9 | SSO | 10 | 1.25(Min) | - | 10 | - | - | 800 V | - | VIPER06LSTR | 99 weeks | - | - | - | - | - | - | - | - | - | - |
 AC to DC Switching Converter Off-Line Switcher 27kHz to 33kHz 10-Pin SSO IC OFFLINE SWITCH PWM 10-SSOP AC/DC Converters VIPer 800V Plus Fixed Freq 30kHz VIPER06 Series 115 MHz 1.6 mA Fixed Frequency VIPerTM Plus Family - SSOP-10 Power Supply IC SSO-10, VIPER06XSTR, ST 交直流转换器, 10引脚 SSO封装 SMPS SSOP-10 SMD STMicroelectronics | 2245 | 17: ¥2.7098 | - | 2,500 | Lead free / RoHS Compliant | 8W | 27kHz ~ 33kHz | 1.3 mA | 80 % | Isolated | 23.5 V | 1 | 800V | 30 kHz | 85 V ~ 265 VAC | Tape & Reel (TR) | SMD/SMT | 10-SOP (0.154", 3.90mm Width) | 10-SSO | PWM Low-Standby High Performance Controller | -25°C ~ 125°C | 30 mW | 497-13034-2 | NO | RoHS-conform | 30000 Hz | 2.5 A | 150 °C | - | - | 2500 | SSOP | Compliant | 4mm | Gull-wing | Surface Mount | 4.9 | SSO | 10 | 1.25(Min) | VIPer Plus | 10 | 1.3 mA | STMicroelectronics | 800 V | - | - | - | 10 | 11.5...23.5 V | 800 V | 1.25mm | 5mm | 5 x 4 x 1.25mm | - | - | - | - |
AC to DC Switching Converter Off-Line Switcher 54kHz to 66kHz 10-Pin SSO SMPS SSOP-10 SMD IC OFFLINE SWITCH PWM 10-SSOP AC/DC Converters Fixed VIPer Plus 800V 60kHz 30mW STMicroelectronics | 10 | 1: ¥8.8298 | AC/DC Converters | 100 | Lead free / RoHS Compliant | 8W | 55kHz ~ 85kHz | 1.6 mA | 80 % | Isolated | 11.5 V | 1 | 800V | 60 kHz | 4.8V | Tube | SMD/SMT | SSOP-20 | 10-SSO | SMPS | -40°C | - | - | NO | RoHS-conform | 60000Hz | 2.5A | 150°C | 1 | 100 | - | SSOP | Compliant | 3.9 | Gull-wing | Surface Mount | 4.9 | SSO | 10 | 1.25(Min) | - | 10 | - | - | - | - | VIPER06LS | 99 weeks | - | - | - | - | - | - | - | - | - | - |
AC to DC Switching Converter Off-Line Switcher 27kHz to 33kHz 10-Pin SSO IC OFFLINE SWITCH PWM 10-SSOP AC/DC Converters Fixed VIPer Plus 800V 30kHz 30mW Off Line Converter 10-Pin SSO Tube STMicroelectronics | 2496 | 6: ¥9.8736 | AC/DC Converters | 100 | Lead free / RoHS Compliant | 8W | 27kHz ~ 33kHz | 1.3 mA | 80 % | Isolated | 11.5 V | 1 | 800V | 30 kHz | 85 V ~ 265 VAC | Tube | SMD/SMT | 10-SOP (0.154", 3.90mm Width) | 10-SSO | PWM Low-Standby High Performance Controller | -25°C ~ 125°C | 30 mW | VIPER06XS-ND | - | - | - | - | - | - | - | 2000 | SSOP | Compliant | 3.9 | Gull-wing | Surface Mount | 4.9 | SSO | 10 | 1.25(Min) | VIPer06 | 10 | 1.3 mA | STMicroelectronics | - | 8W | - | - | - | - | - | - | - | - | - | - | - | - |
 AC to DC Switching Converter Off-Line Switcher 54kHz to 66kHz 7-Pin DIP SMPS DIP-7 THT IC OFFLINE SWITCH PWM SMPS 7PDIP AC/DC Converters VIPer 800V Plus Fixed Freq 60kHz STMicroelectronics | 10 | 1: ¥22.2852 | - | 50 | Lead free / RoHS Compliant | 8W | 54kHz ~ 66kHz | 1.45 mA | 80 % | Isolated | 11.5 V | 1 | 800V | 60 kHz | 4.8V | Tube | Through Hole | DIP-7 | 7-DIP | SMPS | -40°C | 30 mW | 497-12991-5 | NO | RoHS-conform | 60000Hz | 2.5A | 150°C | 1 | 50 | 50 | DIP | Compliant | 6.35 | Through Hole | Through Hole | 9.27 | DIP | 7 | 3.3 | VIPER06 | 7 | - | - | - | - | VIPER06LN | 15 weeks | - | - | - | - | - | - | - | - | - | - |
 IC OFFLINE SWITCH PWM 10-SSOP VIPERPLUS AC/DC Converters VIPer 800V Plus Fixed Freq 115kHz SMPS SSOP-10 SMD STMicroelectronics | 230 | 1: ¥2.7048 | - | 2,500 | Lead free / RoHS Compliant | 8W | 103kHz ~ 127kHz | 1.6 mA | 80 % | Isolated | 23.5 V | 1 | 800V | 115 kHz | 85 V ~ 265 VAC | Tape & Reel (TR) | SMD/SMT | 10-SOP (0.154", 3.90mm Width) | 10-SSO | PWM Low-Standby High Performance Controller | -25°C ~ 125°C | 30 mW | 497-13032-2 | NO | RoHS-conform | 115000 Hz | 2.5 A | 150 °C | 2500 | 2500 | 2500 | - | - | - | - | - | - | - | - | - | VIPer Plus | - | 1.6 mA | STMicroelectronics | 800 V | - | - | - | - | - | - | - | - | - | - | - | - | - |
 IC OFFLINE SWITCH PWM SMPS 7PDIP VIPERPLUS AC/DC Converters VIPer 800V Plus Fixed Freq 30kHz SMPS PDIP-7 THT STMicroelectronics | 10 | 3: ¥8.043 | - | 50 | Lead free / RoHS Compliant | 8W | 27kHz ~ 33kHz | 1.3 mA | 80 % | Isolated | 11.5 V | 1 | 800V | 30 kHz | 85 V ~ 265 VAC | Tube | Through Hole | 8-DIP (0.154", 3.90mm), 7 Leads | 7-DIP | PWM Low-Standby High Performance Controller | -25°C ~ 125°C | 30 mW | 497-12992-5 | NO | RoHS-conform | 30000 Hz | 2.5 A | 150 °C | 2000 | 50 | 50 | - | - | - | - | - | - | - | - | - | VIPer™ plus | - | 1.3 mA | STMicroelectronics | 800 V | 8W | - | - | - | - | - | - | - | - | - | - | - | - |
 IC OFFLINE SWITCH PWM 10-SSOP AC/DC Converters Fixed VIPer Plus 800V 115kHz 30mW AC/DC CONVERTER, 800V, 115KHZ, 10SSOP STMicroelectronics 交流/直流 LED 驱动器, PWM 控制器, 115 kHz, 10针 SSO SMPS SSOP-10 SMD STMicroelectronics | 6000 | 2000: ¥4.8702 | AC/DC Converters | 100 | RoHS Compliant | 8W | 103kHz ~ 127kHz | 20 mA | 80 % | Isolated | 11.5 V | 1 | 800V | 115 kHz | 85 V ~ 265 VAC | Tube | SMD/SMT | 10-SOP (0.154", 3.90mm Width) | 10-SSO | Fixed Frequency Converter | -25°C ~ 125°C | 8 W | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | :265VAC | - | - | - | :10 | - | - | - | - | - | :No SVHC (20-Jun-2013) | 85423300 | 0.000025 | :MSL 1 - Unlimited |
