V23057A 6 系列

TE Connectivity Ltd.TE Connectivity Ltd.

24VDC general purpose PCB-mounted relays for various electrical applications

系列图片（6 张）

文档与媒体

在线文档
DDEController?Action=showdoc&DocId=Data+Sheet%7FCard_E%7F1211%7Fpdf%7FEnglish%7FENG_DS_Card_E_1211_Card_E.pdf%7F1393215-1
在线文档
DDEController?Action=srchrtrv&DocNm=Card_E&DocType=DS&DocLang=English
在线文档
DDEController?Action=showdoc&DocId=Data+Sheet%7FCard_E%7F0115%7Fpdf%7FEnglish%7FENG_DS_Card_E_0115.pdf%7F2-1393215-7
在线文档
DDEController?Action=showdoc&DocId=Specification+Or+Standard%7FDefinitions_Relays%7F0712%7Fpdf%7FEnglish%7FENG_SS_Definitions_Relays_0712.pdf%7F2-1393215-7
在线文档
DDEController?Action=srchrtrv&DocNm=Card_E&DocType=DS&DocLang=EN

常见问答

内容由 AI 生成，仅供参考
加载中...
03

V23057A 6 - 型号列表

共 5 个型号

标准包装数量

触点形式

触头材料

RoHS

线圈类型

线圈电流

线圈电阻

供电电压

触点额定电流

端接样式

类型

其他名称

RoHS/ELV合规声明

电流

典型触点布局

接线图

制造商零件编号库存价格产品类别标准包装数量线圈类型线圈功率线圈电流释放时间线圈电阻供电电压开关电压Vgs(th)（最大）@ Id集电极-发射极饱和电压（最大）@ Vge, Ic触点额定电流包装方式触点形式安装类型触头材料端接样式继电器类型动作时间工作温度RoHS类型其他名称无铅定义认可国家RoHS/ELV合规声明FCC Part 68隔离电流核心类型输入功率可见输出二极管配置额定电流 - 串联端接方式致动器类型线圈绝缘等级外形尺寸 长x宽x高典型触点布局供应商器件封装备注功能极性卡标准接线图零件号别名平均正向功率宽度高度长度安装样式接触件端接额定电压连接器阻抗最大额定电流阳极-阴极电压（Vak）（最大）绝缘高度触点数绝缘直径第一连接器安装类型防护等级触头类型
V23057A 6A401
4
V23057A 6A401

General Purpose Relays SPDT8A 24VDC 1.2KOhm PWR PCB RELAY RELAY GEN PURPOSE SPDT 8A 24V

TE Connectivity / Schrack

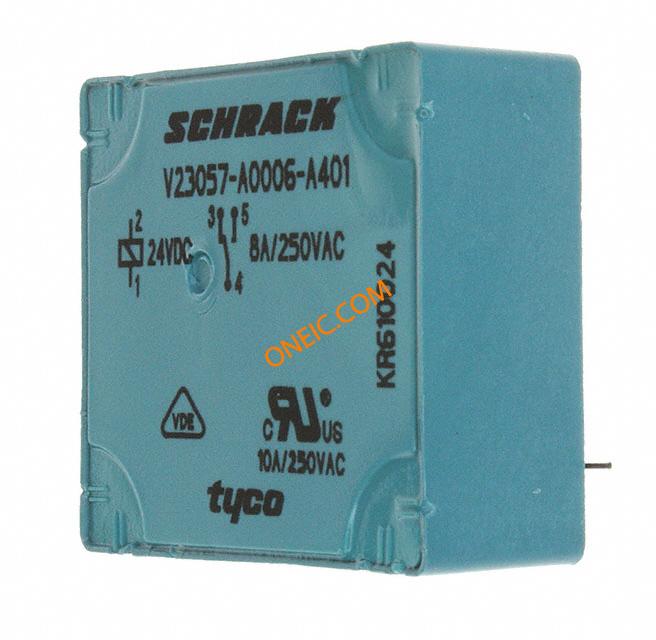

1229¥33.57General Purpose Relays20Monostable, Non Polarized480 mW8 A3ms1200 Ohms24 VDC400VAC - Max2.4 VDC16 VDC8ABulk1 Form C (SPDT-BM)Through HoleSilver Cadmium OxidePlug InGeneral Purpose7ms-40°C ~ 70°CRoHS CompliantPower Relay----------------------2-1393215-5480 mW25 mm10.8 mm28 mmThrough HolePC Terminal----------
V23057A 6A101
V23057A 6A101

RELAY GEN PURPOSE SPDT 5A 24V

TE Connectivity

0-4,000Non Latching480 mW20mA3ms1.2 kOhms24VDC400VAC - Max2.4 VDC16 VDC5ABulkSPDT (1 Form C)Through HoleSilver Nickel (AgNi)PC PinGeneral Purpose7ms-40°C ~ 70°C--2-1393215-1--------------------------------------
V23057A 6A402
2
V23057A 6A402

RELAY GEN PURPOSE SPST 8A 24V General Purpose Relay Coil Voltage: 24 VDC Contact Configuration: 1A SPST-NO Current: 8 Amps Mounting: PC Board Operating Function: Single Side Stable V23057-A0006-A402

TE Connectivity

0-100Non Latching480 mW20mA3ms1.2 kOhms24VDC400VAC - Max2.4 VDC16 VDC8ABulkSPST-NO (1 Form A)Through HoleSilver Cadmium Oxide (AgCdO)PC PinGeneral Purpose7ms-40°C ~ 70°CLead free / RoHS CompliantRelays2-1393215-7Wave solder capable to 240C, Wave solder capable to 260C, Wave solder capable to 265CUL Recognized, CSA Certified, VDE Component MarkAlways was RoHS not ELV compliantn/a8 AmpsMonostable450 mWWithoutWithoutn/aPrinted Circuit TerminalsDCn/a28.00 x 10.40 x 25.10 [1.103 x .409 x .988]1A SPST-NOWashableHorizontal VersionSingle Side StableNoGeneral Purpose Relay1 Form A-------2501 Form A (NO)84003 – 5.512.5 – 4印刷电路板RTIII-
V23057A 6B101
V23057A 6B101

RELAY GEN PURPOSE SPDT 5A 24V General Purpose Relay Coil Voltage: 24 VDC Contact Configuration: 1C SPDT Current: 5 Amps Mounting: PC Board Operating Function: Single Side Stable

TE Connectivity

0-100Non Latching480 mW20mA3ms1.2 kOhms24VDC400VAC - Max2.4 VDC16 VDC5ABulkSPDT (1 Form C)Through HoleSilver Nickel (AgNi)PC PinGeneral Purpose7ms-40°C ~ 70°CLead free / RoHS CompliantRelays-Wave solder capable to 240C, Wave solder capable to 260C, Wave solder capable to 265CUL Recognized, CSA Certified, VDE Component MarkConverted to comply with RoHS directiven/a5 AmpsMonostable450 mWWithoutWithoutn/aPrinted Circuit TerminalsDCn/a28.00 x 10.40 x 25.10 [1.103 x .409 x .988]1C SPDTWashableHorizontal VersionSingle Side StableNoGeneral Purpose Relay1 Form C----------------Bifurcated
V23057A 6A201
V23057A 6A201

RELAY PWR CARD E PCB

TE Connectivity

0-------------------------------------------------------------
