UCD1V4 passive component 系列
Nichicon CorporationSurface-mount aluminum electrolytic capacitors for various electronic applications
系列图片（7 张）
常见问答
UCD1V4 passive component - 型号列表
共 7 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 产品 | RoHS | 容差 | 电容 | 额定电压 | 漏电流 | 高频纹波电流 | 直径 | 包装方式 | 封装形式 | 端接样式 | 系列 | 工作温度 | 工厂包装数量 | 损耗角正切（DF） | 类型 | 额定寿命 | 供电电压 | 电阻公差 | 高度 | 尺寸/外形 | 外壳尺寸-插入件（转换至） | 功能 | 技术 | 工作范围 | 抗辐射加固 | 电压 | 直流冷态电阻 | 尺寸 | 深度 | 结构 | 高度（最大） | 引脚间距 | 安装样式 | 总长度 | 小外径 | 失效率 | 电气寿命 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

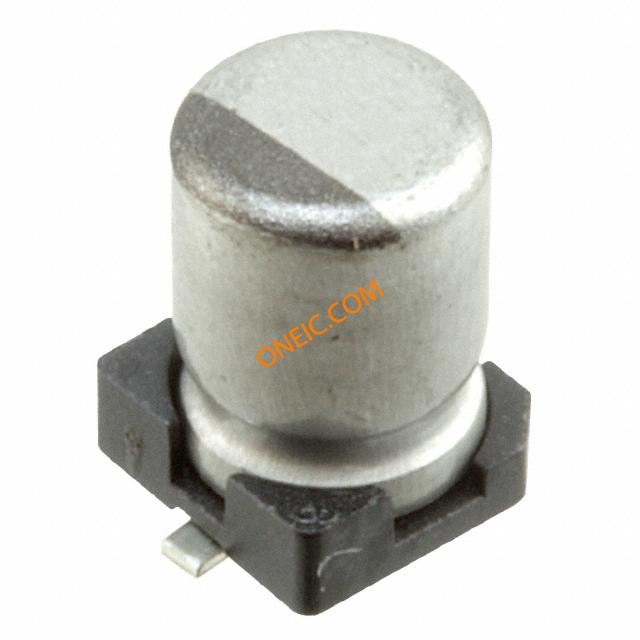

 UCD1V4R7MCL1GS Aluminum Electrolytic Capacitors - SMD 35volts 4.7uF CAP ALUM 4.7UF 35V 20% SMD Nichicon 4.7μF ±20% 35V dc SMD Aluminium Electrolytic Capacitor Capacitor Nichicon CD 系列 4.7μF 35 V 直流 铝电解电容器 , ±20%容差 Nichicon | 521 | ¥0.77 | Aluminum Electrolytic Capacitors - SMD | Low Impedance Electrolytic Capacitors | RoHS Compliant | 20 % | 4.7 uF | 35 V | 3 uA | 90 mA | 4 mm | Reel | 5.8 mm | SMD/SMT | CD | - 55 C to + 105 C | 2000 | 0.12 | Chip Type, Low Impedance | - | 35 V 直流 | +20% | 5.8mm | 4 mm Dia. x 5.8 mm L | 圆柱形 | Y | 电解 | 2000h | - | - | - | - | - | - | - | - | - | - | - | - | - |
 UCD1V470MCL1GS Aluminum Electrolytic Capacitors - SMD 35volts 47uF CAP ALUM 47UF 35V 20% SMD Nichicon 47μF ±20% 35V dc SMD Aluminium Electrolytic Capacitor Cap Aluminum 47uF 35V 20% (6.3 X 5.8mm) SMD 240mA 2000h 105C T/R CAPCD47UF35V Nichicon CD 系列 47μF 35 V 直流 铝电解电容器 , ±20%容差 Nichicon | 98382 | ¥1.15 | Aluminum Electrolytic Capacitors - SMD | Low Impedance Electrolytic Capacitors | RoHS Compliant | 20 % | 47 uF | 35 V | 3 uA | 240 mA | 6.3 mm | Reel | 6.6 mm | SMD/SMT | CD | - 55 C to + 105 C | 1000 | 0.12 | Chip Type, Low Impedance | 2000 hr | 35 V 直流 | +20% | 5.8 mm | 6.3 mm Dia. x 5.8 mm L x 6.6 mm H | 圆柱形 | Y | 电解 | 2000h | No | 35VDC | 3 uA | 6.3 X 5.8 | Not Required mm | Cylindrical | Not Required mm | Not Required mm | Surface Mount | Not Required mm | Not Required mm | Not Required | 2000 hr |

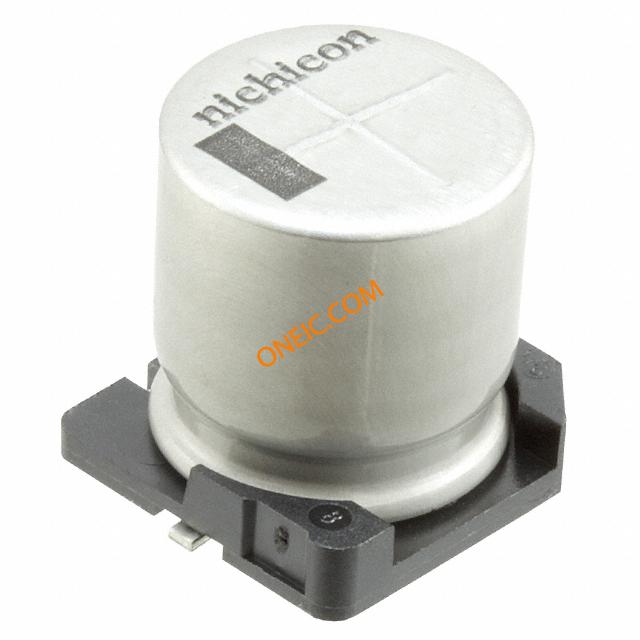

 UCD1V471MNQ1MS Aluminum Electrolytic Capacitors - SMD 35volts 470uF CAP ALUM 470UF 35V 20% SMD Nichicon 470μF ±20% 35V dc SMD Aluminium Electrolytic Capacitor Cap Aluminum 470uF 35V 20% (12.5 X 13.5mm) SMD 1100mA 5000h 105C T/R Capacitor Nichicon CD 系列 470μF 35 V 直流 铝电解电容器 , ±20%容差 Nichicon | 866 | ¥8.32 | Aluminum Electrolytic Capacitors - SMD | Low Impedance Electrolytic Capacitors | RoHS Compliant | 20 % | 470 uF | 35 V | 3 uA | 1100 mA | 12.5 mm | Reel | 13.5 mm | SMD/SMT | CD | - 55 C to + 105 C | 200 | 0.12 | Chip Type, Low Impedance | 5000 hr | 35 V 直流 | +20% | 13.5 mm | 12.5 mm Dia. x 13.5 mm L x 13.6 mm H | 圆柱形 | Y | 电解 | 5000h | No | 35VDC | 3 uA | 12.5 X 13.5 | Not Required mm | Cylindrical | Not Required mm | Not Required mm | Surface Mount | Not Required mm | Not Required mm | Not Required | 5000 hr |
 | 587 | ¥6.22 | Aluminum Electrolytic Capacitors - SMD | Low Impedance Electrolytic Capacitors | RoHS Compliant | 20 % | 470 uF | 35 V | 3 uA | 950 mA | 10 mm | Reel | 13.5 mm | SMD/SMT | CD | - 55 C to + 105 C | - | - | - | 1000 h | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 10 | ¥5.07 | Aluminum Electrolytic Capacitors - SMD | Low Impedance Electrolytic Capacitors | RoHS Compliant | 20 % | 470 uF | 35 V | 3 uA | 1100 mA | 12.5 mm | Tray | 13.5 mm | SMD/SMT | CD | - 55 C to + 105 C | 70 | 0.12 | Chip Type, Low Impedance | 1000 h | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
| 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
