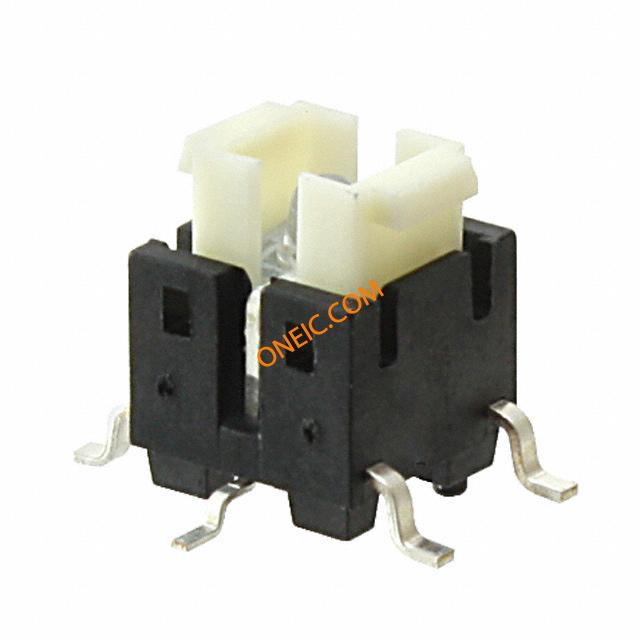

TL3240F tactile switche 系列
E-Switch, Inc.表面安装单刀常开触觉开关，适用于低电流应用
E-Switch, Inc. 的 TL3240F 是一种表面贴装触觉开关，适用于单极单投常开（SPST-NO）配置。这些开关适用于低电流应用，因此非常适合各种嵌入式系统和基于PCB的项目。如果您正在开发需要紧凑、可靠的机械开关但不需要高电流的应用，这些开关可能非常适合。
值得注意的是，它们具有坚固的构造——设计用于承受反复操作并随着时间保持一致性能。这使它们非常适合需要频繁用户交互的设备，例如工业控制设备、医疗设备和消费电子产品。当工程师们需要一个简单、节省空间且能承受日常使用中严苛条件的解决方案时，往往会选用这些开关。
另一个实用的特点是其低矮的外形，便于在空间有限的情况下轻松集成。它们常用于面板安装场景，尽管空间有限，但可靠性及触觉反馈至关重要。直接将这些开关安装到PCB上也简化了设计过程并减少了组装时间。
总体而言，TL3240F 触觉开关为您的项目提供了一种可靠且高效的用户交互方式，特别是在尺寸和耐用性至关重要的环境中。

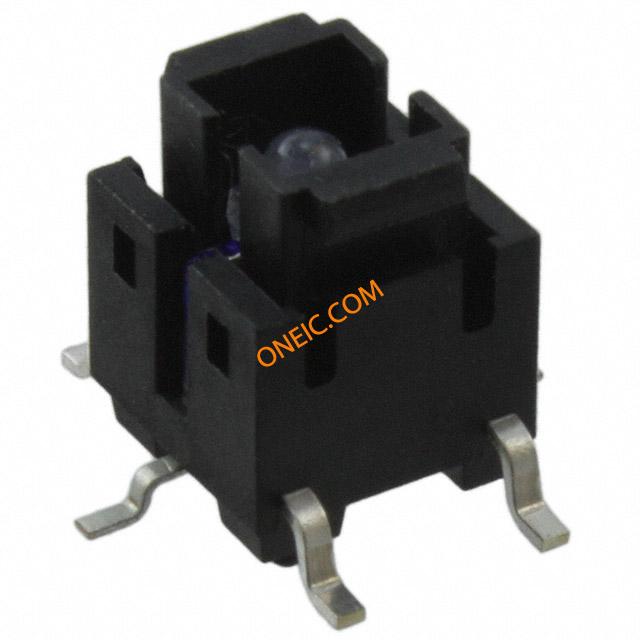

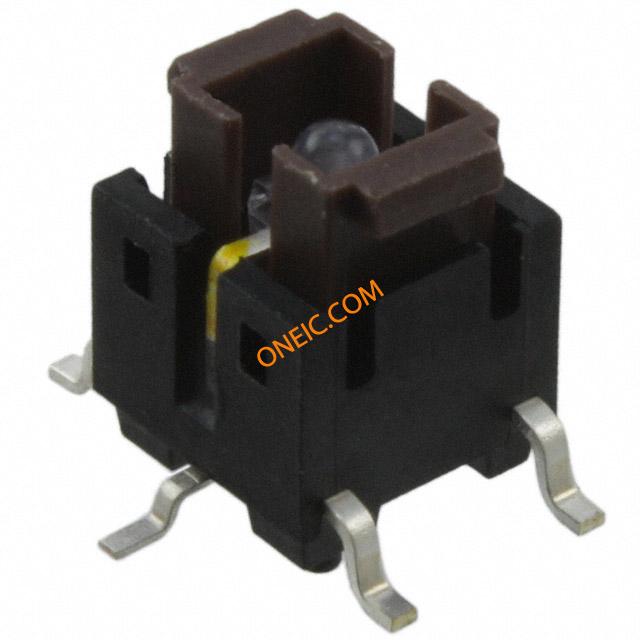

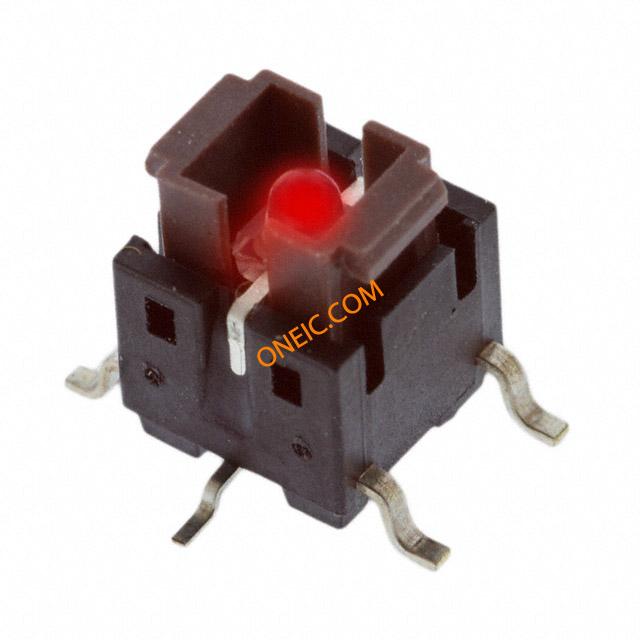

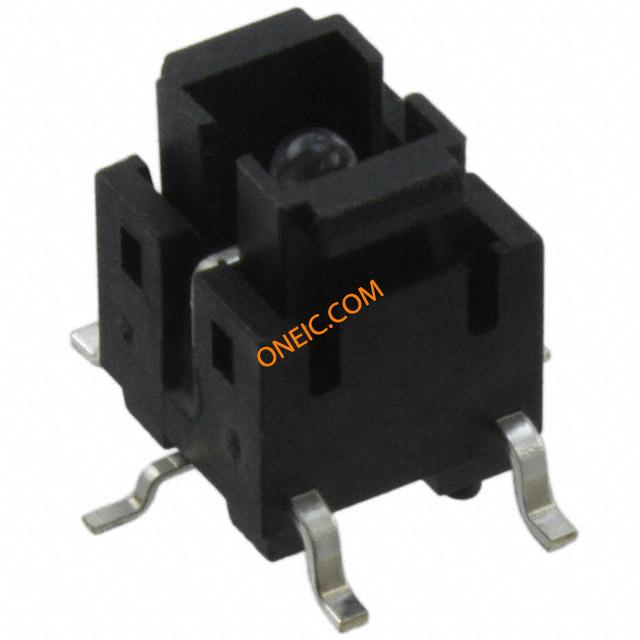

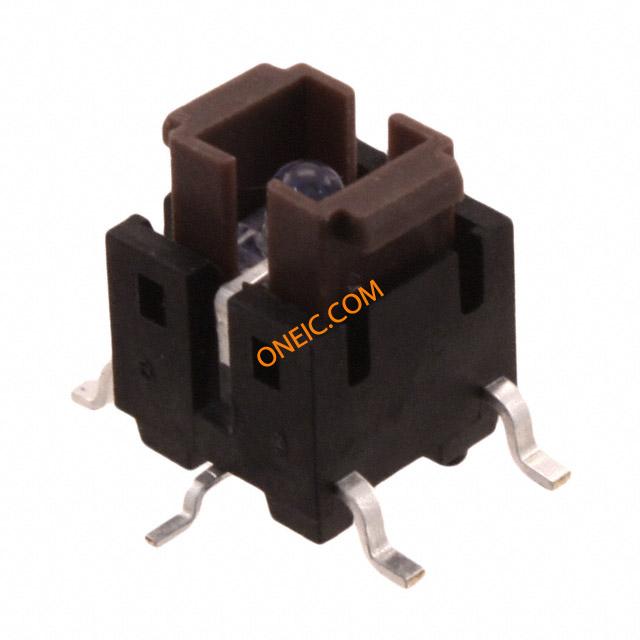

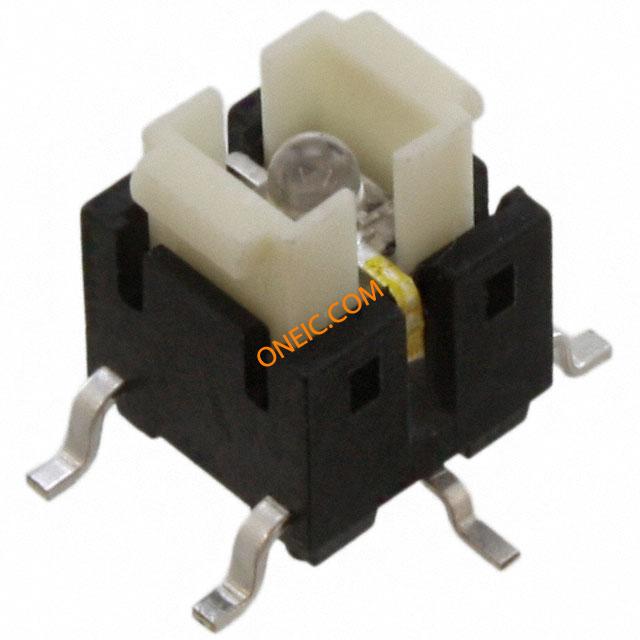

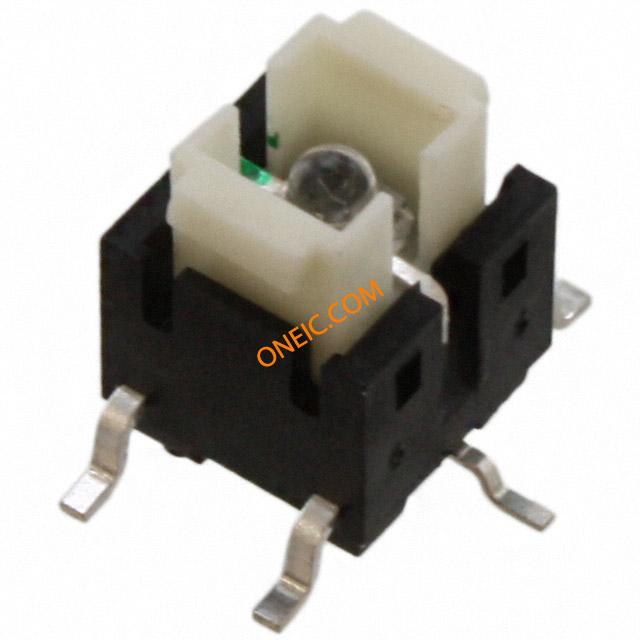

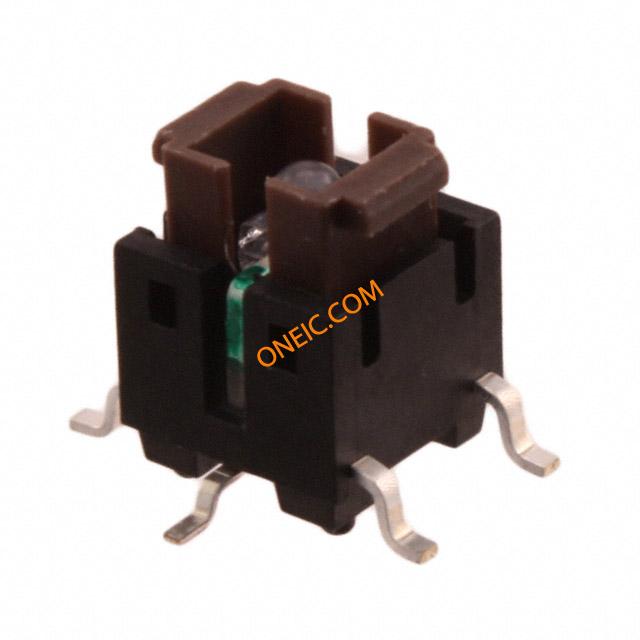

系列图片（11 张）
文档与媒体
常见问答
TL3240F tactile switche - 型号列表
共 15 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准包装数量 | RoHS | 电路 | 开关功能 | 触点额定值 @ 电压 | 标称照明电压 | 外形尺寸(长x宽) | 包装方式 | 致动器类型 | 安装类型 | 开关行程 | 操作力 | 端接样式 | 执行器方向 | 照明类型及颜色 | 执行器距PCB垂直高度 | 产品特性 | 照明类型 | 机械寿命 | 工作温度 | 其他名称 | 海关税号 | 最大触点电流 | 供电电压 (Vcc/Vdd) | 颜色 | 重量 | 开关驱动电平 | 典型触点布局 | 系列 | 标准包装规格 | 制造商 | 零件状态 | 执行器材料 | 防护等级 | 基础产品编号 | 直角致动器长度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCH TACTILE SPST-NO 0.05A 12V Switch Tactile N.O. SPST Button Gull Wing 0.05A 12VDC 1.57N SMD T/R SWITCH, TACTILE, SPST-NO, 50mA, 12VDC, SMD E-Switch | 250 | 250: ¥10.5645 | - | 450 | Lead free / RoHS Compliant | SPST-NO | Off-Mom | 0.05A @ 12VDC | 1.8 VDC | 6.10mm x 6.10mm | Tape & Reel (TR) | Plunger for Cap | Surface Mount | 0.20mm | 160gf | Gull Wing | Top Actuated | LED, Red | 7.80mm | Board Guide | Illuminated | 200,000 Cycles | -25°C ~ 70°C | EG5007TR | 85365019 | :50mA | :12V | :Red | 0 | :Top | :SPST-NO | - | - | - | - | - | - | - | - |
SWITCH TACTILE SPST-NO 0.05A 12V Switch Tactile N.O. SPST Button Gull Wing 0.05A 12VDC 0.98N SMD T/R SWITCH, TACTILE, SPST-NO, 50mA, 12VDC, SMD E-Switch | 1348 | 1: ¥10.54 | - | 450 | Lead free / RoHS Compliant | SPST-NO | Off-Mom | 0.05A @ 12VDC | 1.8 VDC | 6.10mm x 6.10mm | Tape & Reel (TR) | Plunger for Cap | Surface Mount | 0.20mm | 100gf | Gull Wing | Top Actuated | LED, Red | 7.80mm | Board Guide | Illuminated | 200,000 Cycles | -25°C ~ 70°C | EG5004TR | 85365019 | :50mA | :12V | :Red | 0 | :Top | :SPST-NO | - | - | - | - | - | - | - | - |
 SWITCH TACTILE SPST-NO 0.05A 12V Switch Tactile N.O. SPST Button Gull Wing 0.05A 12VDC 0.98N SMD T/R SWITCH, TACTILE, SPST-NO, 50mA, 12VDC, SMD E-Switch | 196 | 1: ¥11.628 | - | 450 | Lead free / RoHS Compliant | SPST-NO | Off-Mom | 0.05A @ 12VDC | 2 VDC | 6.10mm x 6.10mm | Tape & Reel (TR) | Plunger for Cap | Surface Mount | 0.20mm | 100gf | Gull Wing | Top Actuated | LED, Green | 7.80mm | Board Guide | Illuminated | 200,000 Cycles | -25°C ~ 70°C | EG5003TR | 85365019 | :50mA | :12V | :Green | 0 | :Top | :SPST-NO | - | - | - | - | - | - | - | - |
SWITCH TACTILE SPST-NO 0.05A 12V Switch Tactile N.O. SPST Button Gull Wing 0.05A 12VDC 2.55N SMD T/R SWITCH, TACTILE, SPST-NO, 50mA, 12VDC, SMD E-Switch | 1245 | 65: ¥6.6042 | - | 450 | Lead free / RoHS Compliant | SPST-NO | Off-Mom | 0.05A @ 12VDC | 1.8 VDC | 6.10mm x 6.10mm | Tape & Reel (TR) | Plunger for Cap | Surface Mount | 0.20mm | 260gf | Gull Wing | Top Actuated | LED, Red | 7.80mm | Board Guide | Illuminated | 200,000 Cycles | -25°C ~ 70°C | EG5001TR | 85365019 | :50mA | :12V | :Red | 0 | :Top | :SPST-NO | - | - | - | - | - | - | - | - |
 SWITCH TACTILE SPST-NO 0.05A 12V Switch Tactile N.O. SPST Button Gull Wing 0.05A 12VDC 2.55N SMD T/R SWITCH, TACTILE, SPST-NO, 50mA, 12VDC, SMD E-Switch | 1299 | 1: ¥11.016 | - | 450 | Lead free / RoHS Compliant | SPST-NO | Off-Mom | 0.05A @ 12VDC | 2 VDC | 6.10mm x 6.10mm | Tape & Reel (TR) | Plunger for Cap | Surface Mount | 0.20mm | 260gf | Gull Wing | Top Actuated | LED, Green | 7.80mm | Board Guide | Illuminated | 200,000 Cycles | -25°C ~ 70°C | EG5000TR | 85365019 | :50mA | :12V | :Green | 0 | :Top | :SPST-NO | - | - | - | - | - | - | - | - |
 SWITCH TACTILE SPST-NO 0.05A 12V Switch Tactile N.O. SPST Button Gull Wing 0.05A 12VDC 1.57N SMD T/R SWITCH, TACTILE, SPST-NO, 50mA, 12VDC, SMD E-Switch | 337 | 1: ¥11.356 | - | 450 | Lead free / RoHS Compliant | SPST-NO | Off-Mom | 0.05A @ 12VDC | 2 VDC | 6.10mm x 6.10mm | Tape & Reel (TR) | Plunger for Cap | Surface Mount | 0.20mm | 160gf | Gull Wing | Top Actuated | LED, Yellow | 7.80mm | Board Guide | Illuminated | 200,000 Cycles | -25°C ~ 70°C | EG4998TR | 85365019 | :50mA | :12V | :Yellow | 0 | :Top | :SPST-NO | - | - | - | - | - | - | - | - |
 SWITCH TACTILE SPST-NO 0.05A 12V Switch Tactile N.O. SPST Button Gull Wing 0.05A 12VDC 0.98N SMD T/R SWITCH, TACTILE, SPST-NO, 50mA, 12VDC, SMD E-Switch | 175 | 1: ¥16.32 | - | 450 | Lead free / RoHS Compliant | SPST-NO | Off-Mom | 0.05A @ 12VDC | 2 VDC | 6.10mm x 6.10mm | Tape & Reel (TR) | Plunger for Cap | Surface Mount | 0.20mm | 100gf | Gull Wing | Top Actuated | LED, Yellow | 7.80mm | Board Guide | Illuminated | 200,000 Cycles | -25°C ~ 70°C | EG4997TR | 85365019 | :50mA | :12V | :Yellow | 0 | :Top | :SPST-NO | - | - | - | - | - | - | - | - |
SWITCH TACTILE SPST-NO 0.05A 12V Switch Tactile N.O. SPST Button Gull Wing 0.05A 12VDC 1.57N SMD T/R SWITCH, TACTILE, SPST-NO, 50mA, 12VDC, SMD E-Switch | 1350 | 1: ¥10.54 | - | 450 | Lead free / RoHS Compliant | SPST-NO | Off-Mom | 0.05A @ 12VDC | 2 VDC | 6.10mm x 6.10mm | Tape & Reel (TR) | Plunger for Cap | Surface Mount | 0.20mm | 160gf | Gull Wing | Top Actuated | LED, Green | 7.80mm | Board Guide | Illuminated | 200,000 Cycles | -25°C ~ 70°C | EG5006TR | 85365019 | :50mA | :12V | :Green | 0 | :Top | :SPST-NO | - | - | - | - | - | - | - | - |
 SWITCH TACTILE SPST-NO 0.05A 12V Switch Tactile N.O. SPST Button Gull Wing 0.05A 12VDC 2.55N SMD T/R SWITCH, TACTILE, SPST-NO, 50mA, 12VDC, SMD E-Switch | 544 | 1: ¥9.248 | - | 450 | Lead free / RoHS Compliant | SPST-NO | Off-Mom | 0.05A @ 12VDC | 2 VDC | 6.10mm x 6.10mm | Tape & Reel (TR) | Plunger for Cap | Surface Mount | 0.20mm | 260gf | Gull Wing | Top Actuated | LED, Yellow | 7.80mm | Board Guide | Illuminated | 200,000 Cycles | -25°C ~ 70°C | EG4996TR | 85365019 | :50mA | :12V | :Yellow | 0 | :Top | :SPST-NO | - | - | - | - | - | - | - | - |
 SWITCH TACTILE SPST-NO 0.05A 12V Switch Tactile N.O. SPST Button Gull Wing 0.05A 12VDC 0.98N SMD T/R SWITCH, TACTILE, SPST-NO, 50mA, 12VDC, SMD E-Switch | 1340 | 41: ¥10.37 | - | 450 | Lead free / RoHS Compliant | SPST-NO | Off-Mom | 0.05A @ 12VDC | 3.2 VDC | 6.10mm x 6.10mm | Tape & Reel (TR) | Plunger for Cap | Surface Mount | 0.20mm | 100gf | Gull Wing | Top Actuated | LED, Blue | 7.80mm | Board Guide | Illuminated | 200,000 Cycles | -25°C ~ 70°C | EG5002TR | 85365019 | :50mA | :12V | :Blue | 0 | :Top | :SPST-NO | - | - | - | - | - | - | - | - |
 SWITCH TACTILE SPST-NO 0.05A 12V Switch Tactile N.O. SPST Button Gull Wing 0.05A 12VDC 2.55N SMD T/R SWITCH, TACTILE, SPST-NO, 50mA, 12VDC, SMD E-Switch | 317 | 1: ¥27.472 | - | 450 | Lead free / RoHS Compliant | SPST-NO | Off-Mom | 0.05A @ 12VDC | 3.2 VDC | 6.10mm x 6.10mm | Tape & Reel (TR) | Plunger for Cap | Surface Mount | 0.20mm | 260gf | Gull Wing | Top Actuated | LED, Blue | 7.80mm | Board Guide | Illuminated | 200,000 Cycles | -25°C ~ 70°C | EG4999TR | 85365019 | :50mA | :12V | :Blue | 0 | :Top | :SPST-NO | - | - | - | - | - | - | - | - |
 SWITCH TACTILE SPST-NO 0.05A 12V Switch Tactile N.O. SPST Button Gull Wing 0.05A 12VDC 1.57N SMD T/R SWITCH, TACTILE, SPST-NO, 50mA, 12VDC, SMD E-Switch | 11 | 2: ¥26.112 | - | 450 | Lead free / RoHS Compliant | SPST-NO | Off-Mom | 0.05A @ 12VDC | 3.2 VDC | 6.10mm x 6.10mm | Tape & Reel (TR) | Plunger for Cap | Surface Mount | 0.20mm | 160gf | Gull Wing | Top Actuated | LED, Blue | 7.80mm | Board Guide | Illuminated | 200,000 Cycles | -25°C ~ 70°C | EG5005TR | 85365019 | :50mA | :12V | :Blue | 0 | :Top | :SPST-NO | - | - | - | - | - | - | - | - |
 | 664 | 1: ¥13.872 | - | 450 | Lead free / RoHS Compliant | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | * | 450 | - | - | - | - | - | - |
| 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
Buy now, ships today. TL3240F260BT - Tactile Switch SPST-NO Top Actuated Surface Mount from E-Switch. View datasheets, pricing and availability from DigiKey now! E-SWITCH | 983 | 4: ¥19.9104 | - | - | - | SPST-NO | Off-Mom | 0.05A @ 12VDC | 3.2 VDC | 6.10mm x 6.10mm | Tape & Reel (TR) | Plunger for Cap | Surface Mount | 0.20mm | 260gf | Gull Wing | Top Actuated | LED, Blue | 7.80mm | - | Illuminated | 200,000 Cycles | -25°C ~ 70°C | - | - | - | - | - | - | - | - | TL3240 | - | E-Switch | Active | - | - | TL3240 | - |
