cigen-TL1100F160Q

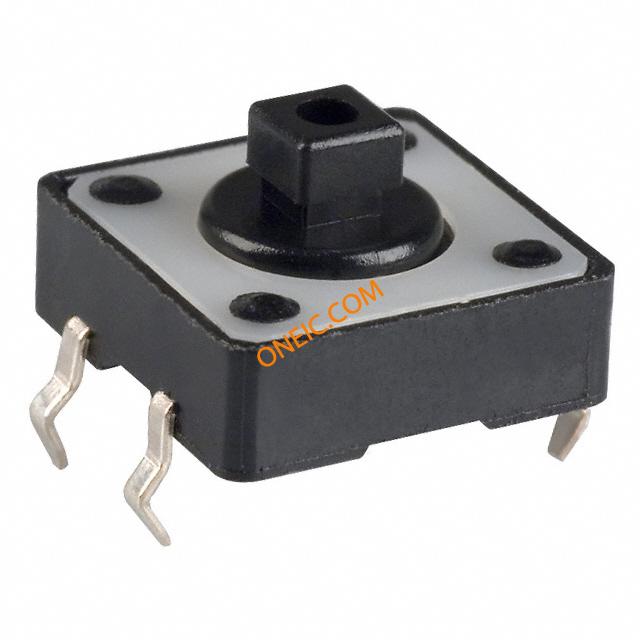

TL1100F160Q tl1100 系列

E-Switch, Inc.

Compact tactile switches with various cap colors and sizes

系列图片（5 张）

文档与媒体

PDF 文档

PDF 文档

PDF 文档

PDF 文档

PDF 文档

PDF 文档

PDF 文档

PDF 文档

PDF 文档

PDF 文档

常见问答

内容由 AI 生成，仅供参考

加载中...

03

TL1100F160Q tl1100 - 型号列表

共 15 个型号

制造商零件编号	库存	价格	产品类别	类型	卡标准	标准包装数量	包装方式	致动器类型	操作力	端接样式	工作温度	RoHS	电路	额定电压	开关功能	最大额定电流	触点额定值 @ 电压	外形尺寸(长x宽)	安装类型	开关行程	安装样式	执行器材料	执行器方向	系列	产品特性	照明类型	机械寿命	安装高度（最大）	执行器距PCB垂直高度	行程范围	触点形式	连接器类型	接触镀层	海关税号	最大触点电流	连接器类型 - 电压输入	供电电压 (Vcc/Vdd)	重量	开关驱动电平	典型触点布局	标准包装规格	其他名称
5 TL1100F160Q SWITCH TACTILE SPST-NO 0.05A 12V Tactile Switches 12X7.3MM 160GF Switch Tactile N.O. Projected Plunger PC Pins 0.05A 50VDC 1.57N Thru-Hole SWITCH, TACTILE, SPST, 0.05A, THT Series TL1100 Tactile Switches E-Switch	4858	¥1.20	Tactile Switches	-	-	400	Bulk	Plunger for Cap	160gf	PC Pin	-20°C ~ 70°C	RoHS Compliant	SPST-NO	12 V	Off-Mom	50 mA	0.05A @ 12VDC	12.00mm x 12.00mm	Through Hole	0.30mm	Through Hole	Polyester	Top Actuated	TL1100	Tactile Feedback	Non-Illuminated	100,000 Cycles	3.4 mm	7.30mm	-	SPST	No	Silver	85365005	:50mA	:Solder	:12V	0.00091	:Top	:SPST-NO	-	-
TL1100F160Q4JBLK SWITCH TACTILE SPST-NO 0.05A 12V Tactile Switches Tactile Switch 12mm x 12mm Series TL1100 Tactile Switches E-Switch	60	¥2.18	-	Switches	Tactile Switch	192	Bulk	Square Button	160gf	PC Pin	-20°C ~ 70°C	RoHS Compliant	SPST-NO	12 V	Off-Mom	50 mA	0.05A @ 12VDC	12.00mm x 12.00mm	Through Hole	0.30mm	Through Hole	Polyester	Top Actuated	TL1100	Tactile Feedback	Non-Illuminated	100,000 Cycles	-	10.20mm	0.3 mm	SPST	-	Silver	-	-	-	-	-	-	-	192	-
TL1100F160Q4JWHT SWITCH TACTILE SPST-NO 0.05A 12V Tactile Switches Thru hole 12mmx12mm WHT Cap Series TL1100 Tactile Switches E-Switch	10	¥1.84	-	Switches	Tactile Switch	192	Bulk	Square Button	160gf	PC Pin	-20°C ~ 70°C	RoHS Compliant	SPST-NO	12 V	Off-Mom	50 mA	0.05A @ 12VDC	12.00mm x 12.00mm	Through Hole	0.30mm	Through Hole	Polyester	Top Actuated	TL1100	Tactile Feedback	Non-Illuminated	100,000 Cycles	4.3 mm	10.20mm	0.25 mm	-	-	-	-	-	-	-	-	-	-	-	-
TL1100F160Q6JBLK SWITCH TACTILE SPST-NO 0.05A 12V Tactile Switches 12X7.3mm W/BLACK CAP Series TL1100 Tactile Switches E-Switch	1717	¥2.36	Tactile Switches	Switches	Tactile Switch	192	Bulk	Square Button	160gf	PC Pin	-20°C ~ 70°C	RoHS Compliant	SPST-NO	12 V	Off-Mom	50 mA	0.05A @ 12VDC	12.00mm x 12.00mm	Through Hole	0.30mm	Through Hole	Polyester	Top Actuated	TL1100	Tactile Feedback	Non-Illuminated	100,000 Cycles	7.3 mm	9.60mm	-	SPST	No	-	-	-	-	-	-	-	-	-	-
TL1100F160Q6JGRY SWITCH TACTILE SPST-NO 0.05A 12V Tactile Switches Thru hole 12mmx12mm GRY Cap Series TL1100 Tactile Switches E-Switch	10	¥2.15	-	Switches	Tactile Switch	1	Bulk	Square Button	160gf	PC Pin	-20°C ~ 70°C	RoHS Compliant	SPST-NO	12 V	Off-Mom	50 mA	0.05A @ 12VDC	12.00mm x 12.00mm	Through Hole	0.30mm	Through Hole	Polyester	Top Actuated	TL1100	Tactile Feedback	Non-Illuminated	100,000 Cycles	4.3 mm	9.60mm	0.25 mm	-	-	-	-	-	-	-	-	-	-	-	-
TL1100F160Q6JRED SWITCH TACTILE SPST-NO 0.05A 12V Tactile Switches Thru hole 12mmx12mm RED Cap Series TL1100 Tactile Switches E-Switch	384	¥2.36	-	Switches	Tactile Switch	192	Bulk	Square Button	160gf	PC Pin	-20°C ~ 70°C	RoHS Compliant	SPST-NO	12 V	Off-Mom	50 mA	0.05A @ 12VDC	12.00mm x 12.00mm	Through Hole	0.30mm	Through Hole	Polyester	Top Actuated	TL1100	Tactile Feedback	Non-Illuminated	100,000 Cycles	4.3 mm	9.60mm	0.25 mm	-	-	-	-	-	-	-	-	-	-	-	-
TL1100F160Q.09BLK SWITCH TACTILE SPST-NO 0.05A 12V E-Switch	10	¥5.81	-	-	-	1	Bulk	Round Button	160gf	PC Pin	-20°C ~ 70°C	-	SPST-NO	-	Off-Mom	-	0.05A @ 12VDC	12.00mm x 12.00mm	Through Hole	0.30mm	-	Polyester	Top Actuated	-	Tactile Feedback	Non-Illuminated	100,000 Cycles	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Q1992511
TL1100F160Q5JBLK SWITCH TACTILE Tactile Switches Thru hole 12mmx12mm BLK Cap Series TL1100 Tactile Switches E-Switch	10	¥2.15	-	Switches	Tactile Switch	1	Bulk	Dome	1.6 N	Solder Pin	- 20 C to + 70 C	RoHS Compliant	-	12 V	-	50 mA	-	-	-	-	Through Hole	-	-	*	-	-	-	4.3 mm	-	0.25 mm	-	-	-	-	-	-	-	-	-	-	-	-
TL1100F160Q/8JBLK TL1100 系列单刀单掷 2.6 N 圆形按键 PC 通孔触觉型开关 E-SWITCH	0		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TL1100F160Q320.09BLK 12x12 Tact Switch with 320.09BLK cap Series TL1100 Tactile Switches E-SWITCH	0		-	Switches	Tactile Switch	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TL1100F160Q320.08BLK Series TL1100 Tactile Switches E-Switch	0		-	Switches	Tactile Switch	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TL1100F160Q320.08YEL Series TL1100 Tactile Switches E-Switch	0		-	Switches	Tactile Switch	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TL1100F160Q8JBLKTRAYED Series TL1100 Tactile Switches E-Switch	0		-	Switches	Tactile Switch	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TL1100F160QSSDOME Series TL1100 Tactile Switches E-Switch	0		-	Switches	Tactile Switch	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TL1100F160QTA2800BLK Series TL1100 Tactile Switches E-Switch	0		-	Switches	Tactile Switch	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
