T15-D 系列

HAKKO CorporationHAKKO Corporation

HAKKO烙铁头和工作站专用削尖焊嘴

HAKKO Corporation 的 T15-D 系列焊头为楔形设计，适用于其焊接枪和工作站。这些焊头通常用于需要精确温度控制和一致焊点的电子装配领域。如果您在处理需要对焊接温度进行精细控制的PCB，并且需要一种适用于通孔和表面安装组件的可靠焊头，那么这些楔形焊头将是不错的选择。

值得注意的是，楔形设计相比锥形焊头提供了更大的接触面积，这有助于快速加热较大区域并确保焊料分布均匀。当工程师需要比锥形焊头更多的灵活性，但仍希望拥有一个相对紧凑的设计以便于进入狭小空间时，往往会选择这些楔形焊头。T15-D 系列焊头可能提供多种尺寸，以满足不同的焊接需求，从精细的SMT工作到坚固的通孔装配。

系列图片（13 张）

常见问答

内容由 AI 生成，仅供参考
加载中...
03

T15-D - 型号列表

共 11 个型号

尖端尺寸

尖端长度

适用产品/相关产品

尖端形状

系列

制造商零件编号库存价格产品类别尖端尺寸尖端形状尖端长度系列制造商全称产品子类型适用产品/相关产品海关编码

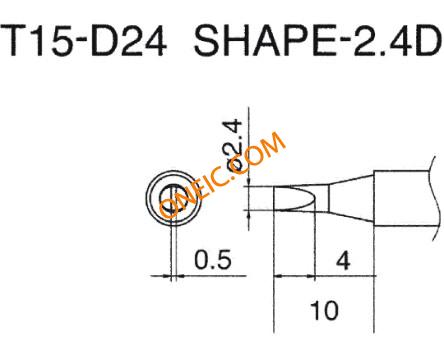

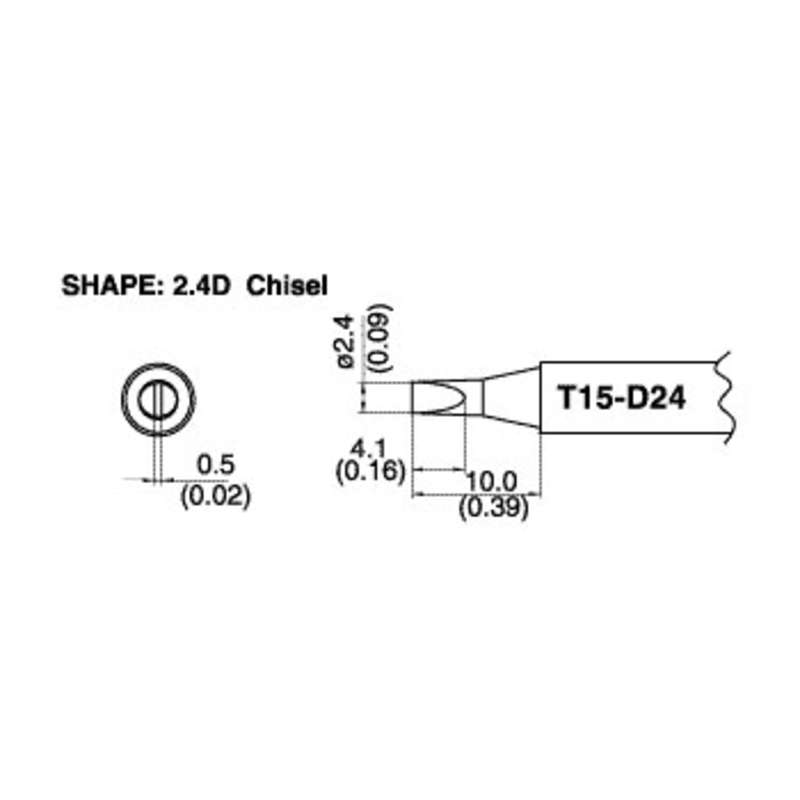

T15-D24
2
T15-D24

Hakko 2.4mm Straight Chisel For Use With FM-2021; FM-2027 Soldering Irons T15 Series Chisel Solder Tip for FM-2027 Iron, 10.00mm x 2.40mm

Hakko

305: ¥130.2302-2.4 mmStraight Chisel10mmT15HakkoSoldering TipFM-2021; FM-2027 Soldering Irons-

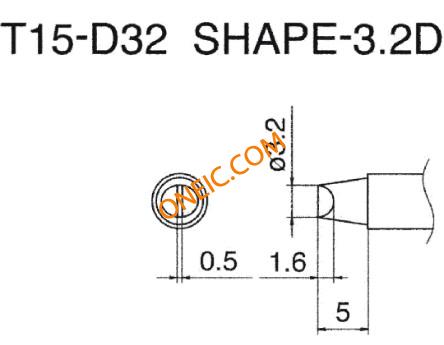

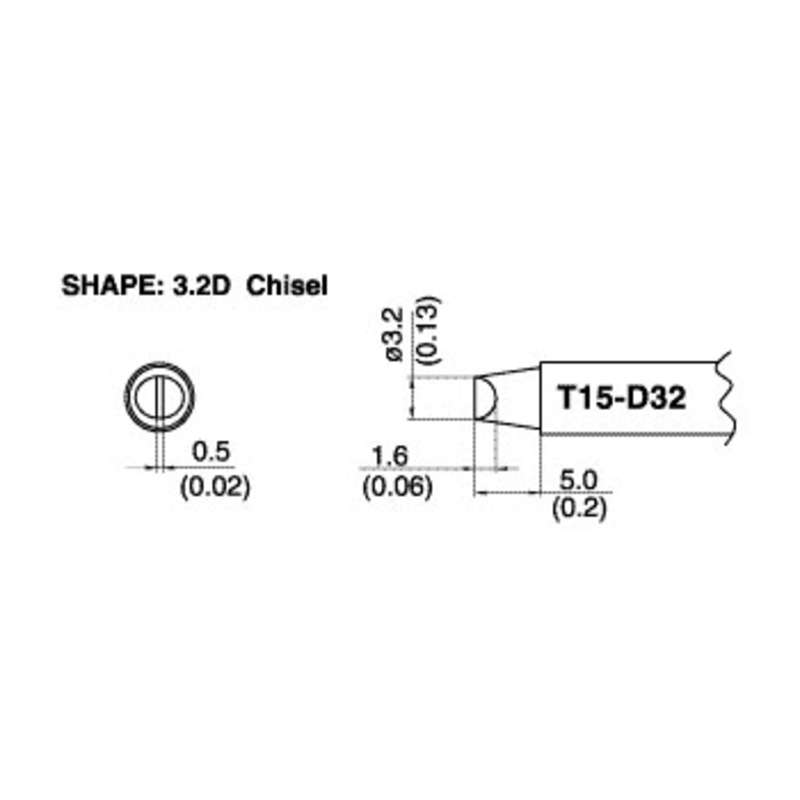

T15-D32
2
T15-D32

Hakko 3.2mm Straight Chisel For Use With FM-2027 Soldering Iron T15 Series Chisel Solder Tip for FM-2027 Iron, 5.00mm x 3.20mm

Hakko

122: ¥190.40-3.2 mmStraight Chisel5mmT15HakkoSoldering TipFM-2027 Soldering Iron8515.90.99
T15-D2
T15-D2

T15 Series Chisel Solder Tip for FM-202 and FP-102 Stations, 5.0mm x 2.0mm

Hakko

341: ¥71.196-1.1 x 2mmChisel5mmT15 SeriesHakkoSoldering TipHakko FM-204 - Hakko FM-2027 (70W) Handpiece, Hakko FM-206 - Hakko FM-2027 (70W) Handpiece, Hakko FX-950 - Hakko FM-2027 (70W) Handpiece, Hakko FX-951 - Hakko FM-2028 (70W) Handpiece, Hakko FX-952 - Hakko FM-2028 (70W) Handpiece, Hakko FM-202 - Hakko-

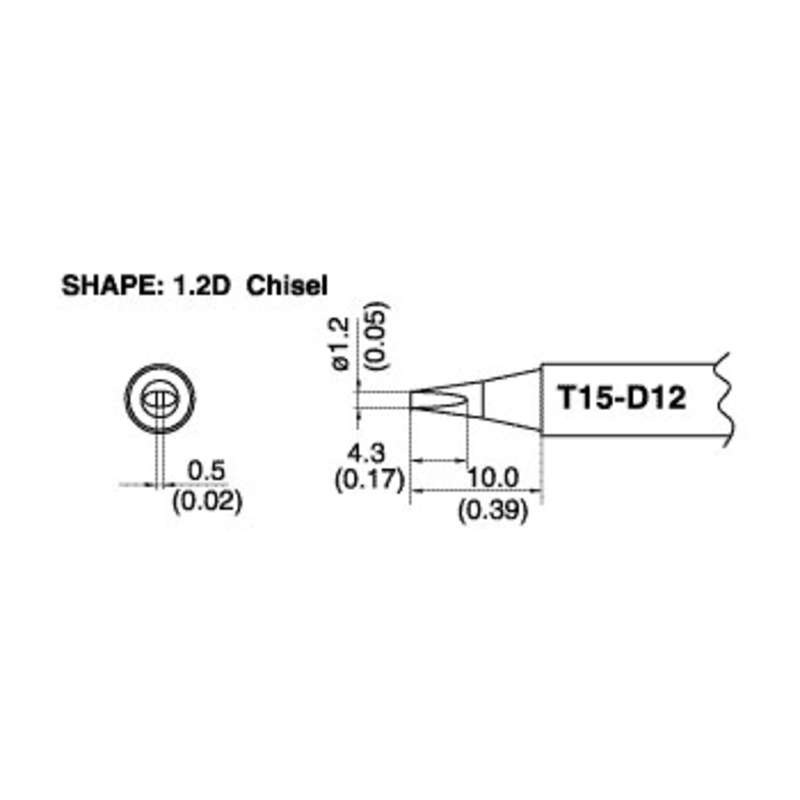

T15-D12
T15-D12

T15 Series Chisel Solder Tip for FM-2027 Iron, 10.00mm x 1.20mm

Hakko

355: ¥130.2302-1.2 x 0.5mmChisel10mmT15 SeriesHakkoSoldering TipHakko FM-204 - Hakko FM-2027 (70W) Handpiece, Hakko FM-206 - Hakko FM-2027 (70W) Handpiece, Hakko FX-950 - Hakko FM-2027 (70W) Handpiece, Hakko FX-951 - Hakko FM-2028 (70W) Handpiece, Hakko FX-952 - Hakko FM-2028 (70W) Handpiece, Hakko FM-202 - Hakko-

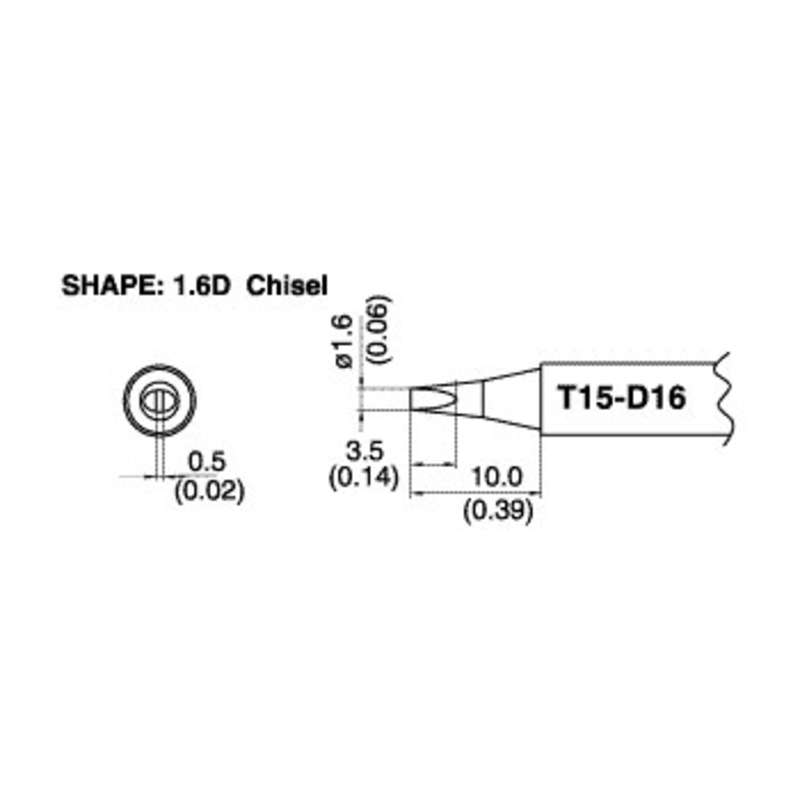

T15-D16
T15-D16

T15 Series Chisel Solder Tip for FM-2027 Iron, 10.00mm x 1.60mm

Hakko

605: ¥130.2302-1.6 x 0.5mmChisel10mmT15 SeriesHakkoSoldering TipHakko FM-204 - Hakko FM-2027 (70W) Handpiece, Hakko FM-206 - Hakko FM-2027 (70W) Handpiece, Hakko FX-950 - Hakko FM-2027 (70W) Handpiece, Hakko FX-951 - Hakko FM-2028 (70W) Handpiece, Hakko FX-952 - Hakko FM-2028 (70W) Handpiece, Hakko FM-202 - Hakko-
T15-DL32
T15-DL32

T15 Series Chisel Solder Tip for FM-2027 Iron, 10.00mm x 3.20mm

Hakko

1751: ¥181.696-3.2 x 0.5mmChisel10mmT15 SeriesHakkoSoldering TipHakko FM-204 - Hakko FM-2027 (70W) Handpiece, Hakko FM-206 - Hakko FM-2027 (70W) Handpiece, Hakko FX-950 - Hakko FM-2027 (70W) Handpiece, Hakko FX-951 - Hakko FM-2028 (70W) Handpiece, Hakko FX-952 - Hakko FM-2028 (70W) Handpiece, Hakko FM-202 - Hakko-

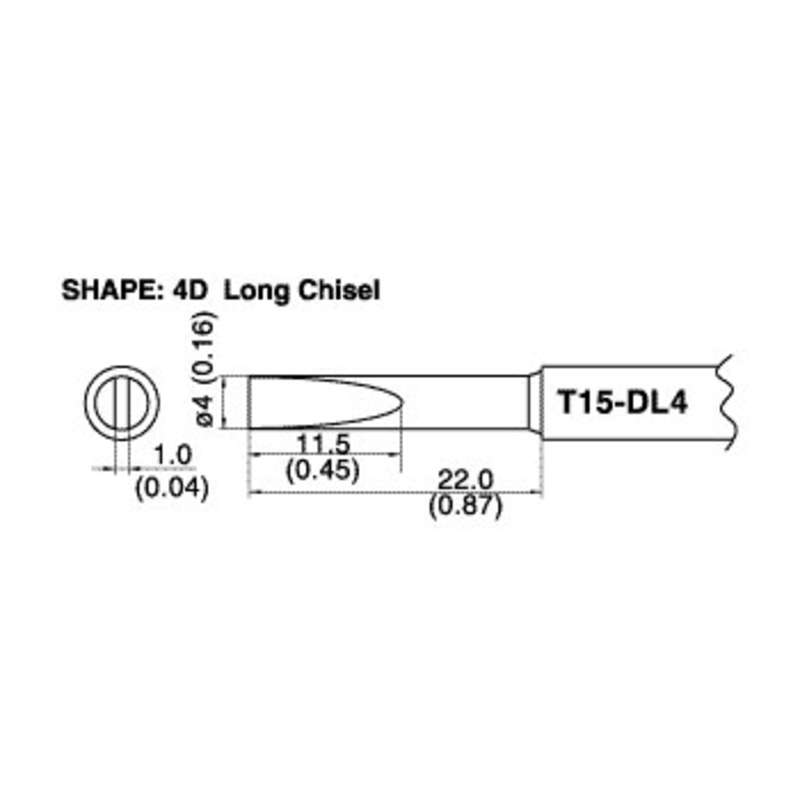

T15-DL4
T15-DL4

T15 Series Chisel Solder Tip for FM-2027 Iron, 22.00mm x 4.00mm

Hakko

451: ¥114.036-4 x 1mmChisel22mmT15 SeriesHakkoSoldering TipHakko FM-204 - Hakko FM-2027 (70W) Handpiece, Hakko FM-206 - Hakko FM-2027 (70W) Handpiece, Hakko FX-950 - Hakko FM-2027 (70W) Handpiece, Hakko FX-951 - Hakko FM-2028 (70W) Handpiece, Hakko FX-952 - Hakko FM-2028 (70W) Handpiece, Hakko FM-202 - Hakko8515.90.99
T15-D4
T15-D4

T15 Series Chisel Solder Tip for FM-2027 Iron, 7.50mm x 4.00mm

Hakko

455: ¥130.2302-4 x 0.5mmChisel8.5mmT15 SeriesHakkoSoldering TipHakko FM-204 - Hakko FM-2027 (70W) Handpiece, Hakko FM-206 - Hakko FM-2027 (70W) Handpiece, Hakko FX-950 - Hakko FM-2027 (70W) Handpiece, Hakko FX-951 - Hakko FM-2028 (70W) Handpiece, Hakko FX-952 - Hakko FM-2028 (70W) Handpiece, Hakko FM-202 - Hakko-

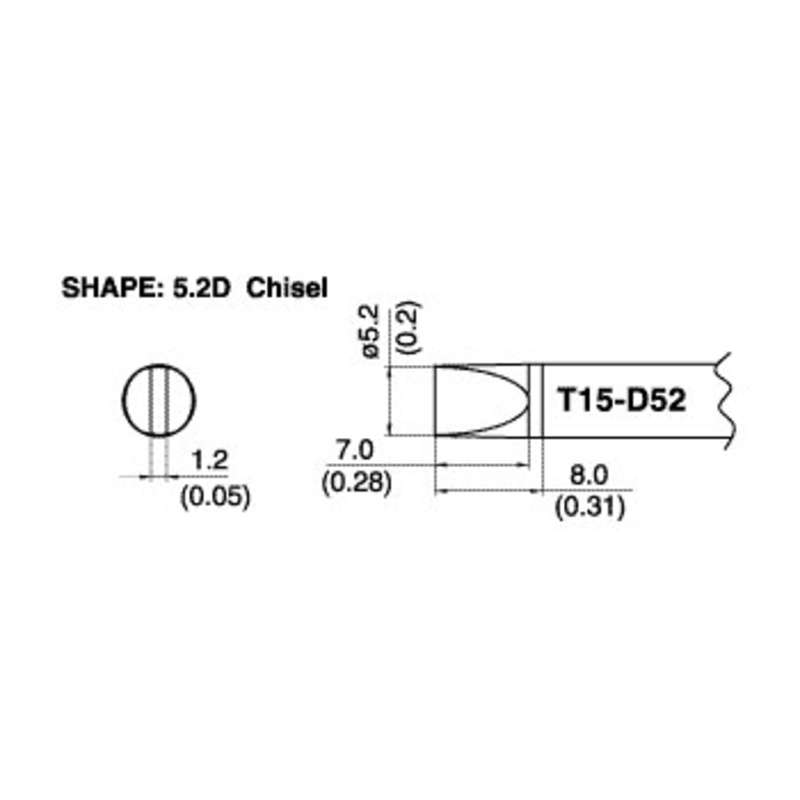

T15-D52
T15-D52

T15 Series Chisel Solder Tip for FM-2027 Iron, 8.00mm x 5.20mm

Hakko

9201: ¥118.728-5.2 x 1.2mmChisel8mmT15 SeriesHakkoSoldering TipHakko FM-204 - Hakko FM-2027 (70W) Handpiece, Hakko FM-206 - Hakko FM-2027 (70W) Handpiece, Hakko FX-950 - Hakko FM-2027 (70W) Handpiece, Hakko FX-951 - Hakko FM-2028 (70W) Handpiece, Hakko FX-952 - Hakko FM-2028 (70W) Handpiece, Hakko FM-202 - Hakko-

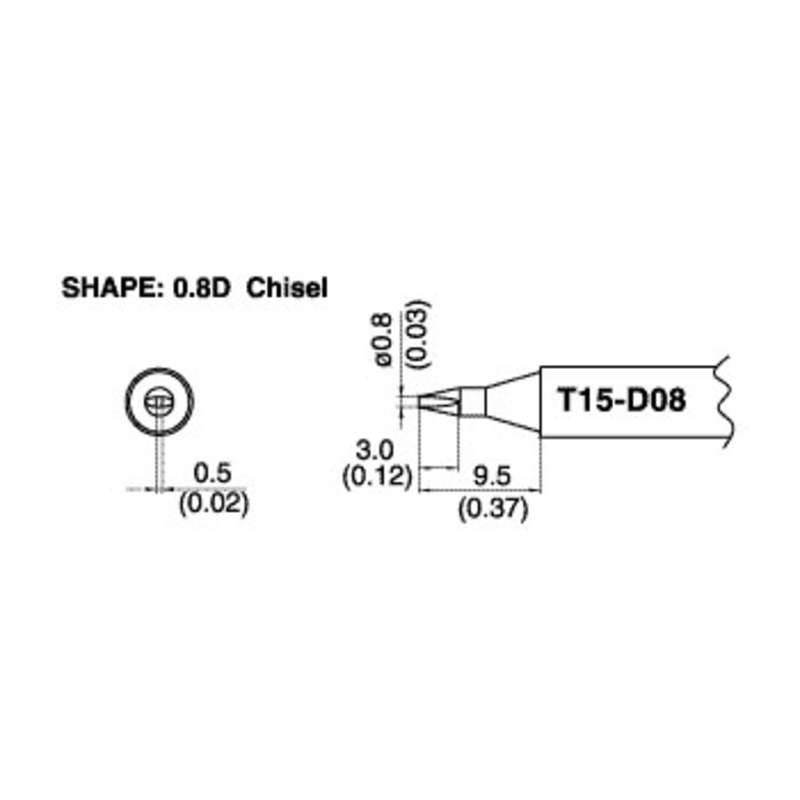

T15-D08
T15-D08

T15 Series Chisel Solder Tip for FM-2027 Iron, 9.50mm x .80mm

Hakko

205: ¥130.2302-0.5 x 0.8mmChisel9.5mmT15 SeriesHakkoSoldering TipHakko FM-204 - Hakko FM-2027 (70W) Handpiece, Hakko FM-206 - Hakko FM-2027 (70W) Handpiece, Hakko FX-950 - Hakko FM-2027 (70W) Handpiece, Hakko FX-951 - Hakko FM-2028 (70W) Handpiece, Hakko FX-952 - Hakko FM-2028 (70W) Handpiece, Hakko FM-202 - Hakko8515.90.99

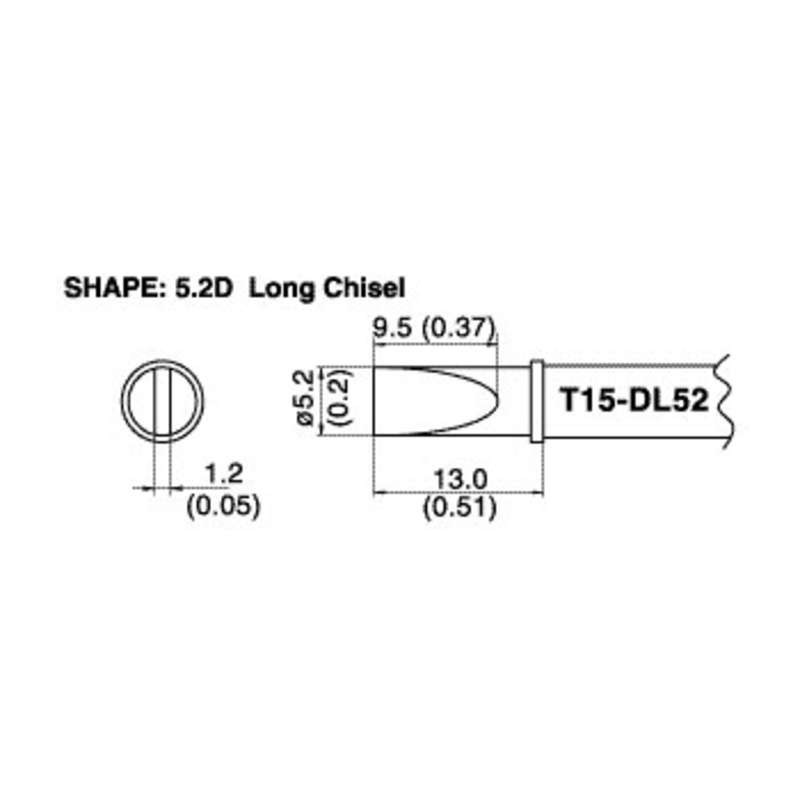

T15-DL52
T15-DL52

T15 Series Long Chisel Solder Tip for FM-2027 Iron, 5.20mm x 12.00mm

Hakko

351: ¥181.696-5.2 x 1.2mmChisel13mmT15 SeriesHakkoSoldering TipHakko FM-204 - Hakko FM-2027 (70W) Handpiece, Hakko FM-206 - Hakko FM-2027 (70W) Handpiece, Hakko FX-950 - Hakko FM-2027 (70W) Handpiece, Hakko FX-951 - Hakko FM-2028 (70W) Handpiece, Hakko FX-952 - Hakko FM-2028 (70W) Handpiece, Hakko FM-202 - Hakko8515.90.99
