Q5-3X-1 1 系列
Qualtek Electronics Corp.Adhesive-lined heat shrink tubing for insulation and protection
系列图片（5 张）
常见问答
内容由 AI 生成，仅供参考
加载中...
03
Q5-3X-1 1 - 型号列表
共 7 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准包装数量 | RoHS | 颜色 | 长度 | 材料（通用） | 收缩比 | 类型 | 产品特性 | 材料阻燃等级 | 内径（直径） | 恢复壁厚 | 内径 - 供货状态 | 恢复后内径 | 系列 | 射频系列/标准 | 温度 | 收缩温度 | 工作温度 | 其他名称 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

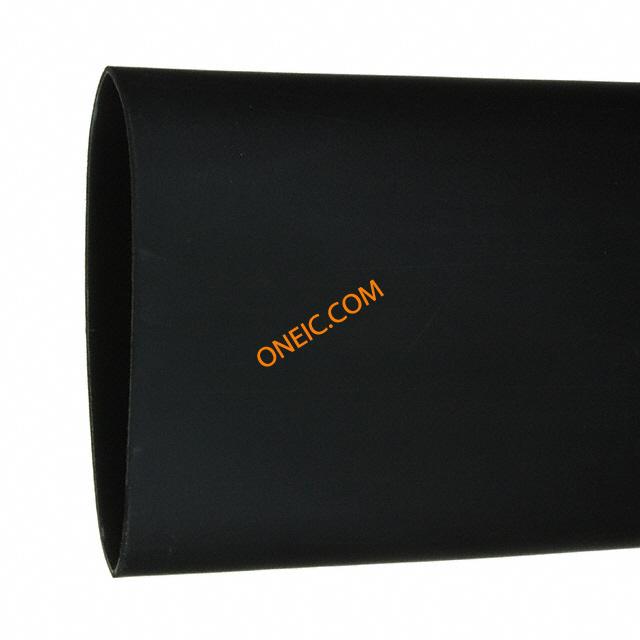

 Q5-3X-1 1/2-01-QB48IN-5 Heat Shrink Tubing and Sleeves 1 1/2 48IN 5PC BAG BLACK HEATSHK DL WL Q53X 1-1/2"X4' BLK Qualtek | 104 | ¥75.53 | Heat Shrink Tubing and Sleeves | 5 | RoHS Compliant | Black | 4 ft | Polyolefin (PO) | 3:1 | Heat Shrinkable Dual Wall Tubing | Designed to provide both insulation and sealing | Yes | 1.5 in | 0.094" (2.40mm) | 1.575" (40.0mm) | 0.512" (13.0mm) | Q5-3X | Dual Wall Tubing | + 100 C | 80°C | -45°C ~ 125°C | - |
Q5-3X-1 1/4-01-QB6IN-5 Heat Shrink Tubing and Sleeves 1 1/4 6IN 5PC BAG BLACK HEATSHRINK 1 1/4"-6" BLACK Tubing 1-1/4 In. Shrink(3:1) 6 In.L; Adhesive-Lined; Int. Dia. 30.0 mm Qualtek | 10 | ¥36.50 | Heat Shrink Tubing and Sleeves | 1 | RoHS Compliant | Black | 6 in | Polyolefin (PO) | 3:1 | Heat Shrinkable Dual Wall Tubing | Designed to provide both insulation and sealing | Yes | 1.25 in | - | - | - | Q5-3X | Dual Wall Tubing | + 100 C | - | - | - |
Q5-3X-1 1/4-01-QB48IN-5 Heat Shrink Tubing and Sleeves 1 1/4 48IN 5 PC BAG BLACK HEATSHRK DL WL Q53X 1-1/4"X4'BLK Qualtek | 746 | ¥56.02 | Heat Shrink Tubing and Sleeves | 5 | RoHS Compliant | Black | 4 ft | Polyolefin (PO) | 3:1 | Heat Shrinkable Dual Wall Tubing | Designed to provide both insulation and sealing | Yes | 1.25 in | 0.094" (2.40mm) | 1.181" (30.0mm) | 0.394" (10.0mm) | Q5-3X | Dual Wall Tubing | + 100 C | 80°C | -45°C ~ 125°C | - |
Q5-3X-1 1/2-01-QB6IN-5 Heat Shrink Tubing and Sleeves 1 1/2 6IN 5PC BAG BLACK HEATSHRINK 1 1/2"-6" BLACK Tubing 1-1/2 In. Shrink(3:1) 6 In.L; Adhesive-Lined; Int. Dia. 38.1 mm Qualtek | 10 | ¥49.18 | Heat Shrink Tubing and Sleeves | 1 | RoHS Compliant | Black | 4 ft | Polyolefin (PO) | 3:1 | Heat Shrinkable Dual Wall Tubing | Designed to provide both insulation and sealing | Yes | 1.5 in | - | - | - | Q5-3X | Dual Wall Tubing | + 100 C | - | - | - |
 | 10 | ¥1,073.09 | - | 1 | Lead free / RoHS Compliant | Black | 82.0' (25.0m) | Polyolefin | 3 to 1 | Tubing, Flexible | Adhesive Lined, Self Extinguishing | - | - | 0.094" (2.40mm) | 1.181" (30.0mm) | 0.394" (10.0mm) | - | - | - | 80°C | -45°C ~ 125°C | Q53X114B-25M |
 | 10 | ¥1,446.34 | - | 1 | Lead free / RoHS Compliant | Black | 82.0' (25.0m) | Polyolefin | 3 to 1 | Tubing, Flexible | Adhesive Lined, Self Extinguishing | - | - | 0.094" (2.40mm) | 1.575" (40.0mm) | 0.512" (13.0mm) | - | - | - | 80°C | -45°C ~ 125°C | Q53X112B-25M |
 Q5-3X-1 1/2-03-QB48IN- QUALTEK ELECTRONICS | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
第 1 / 1 页
