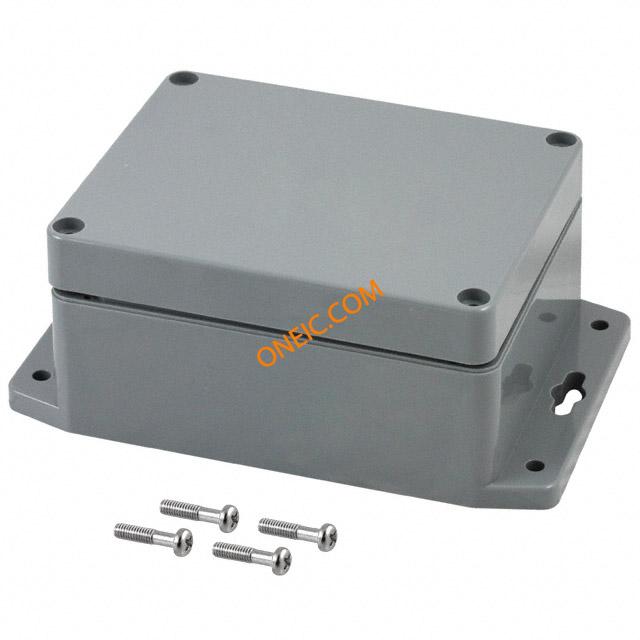

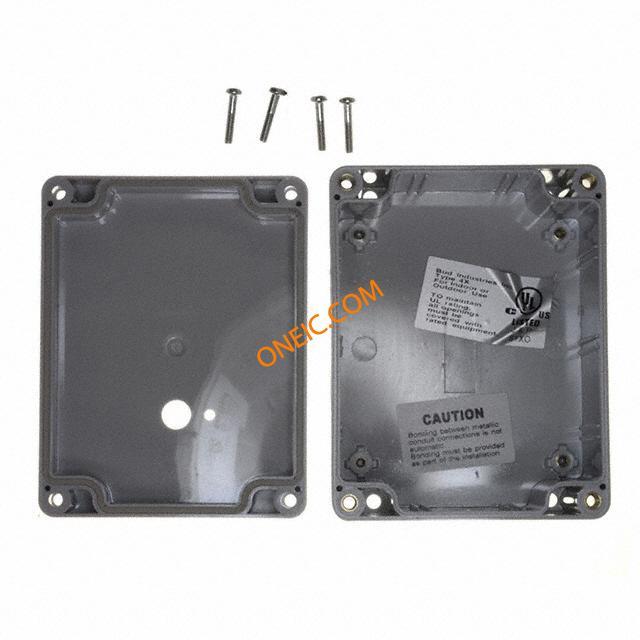

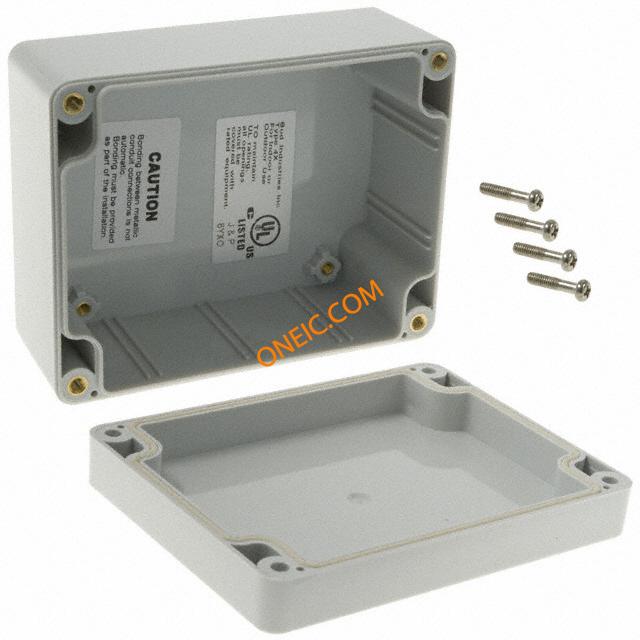

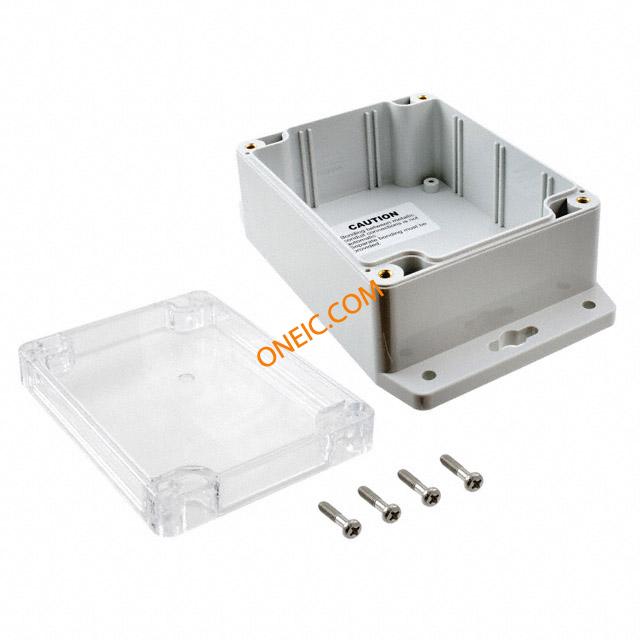

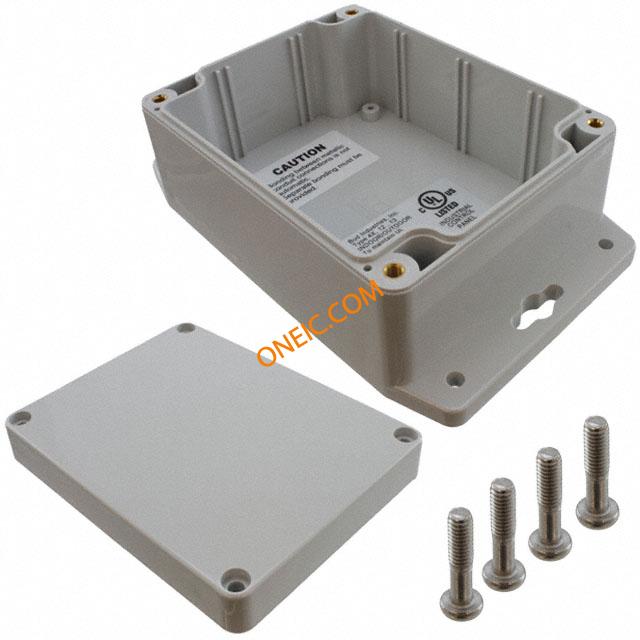

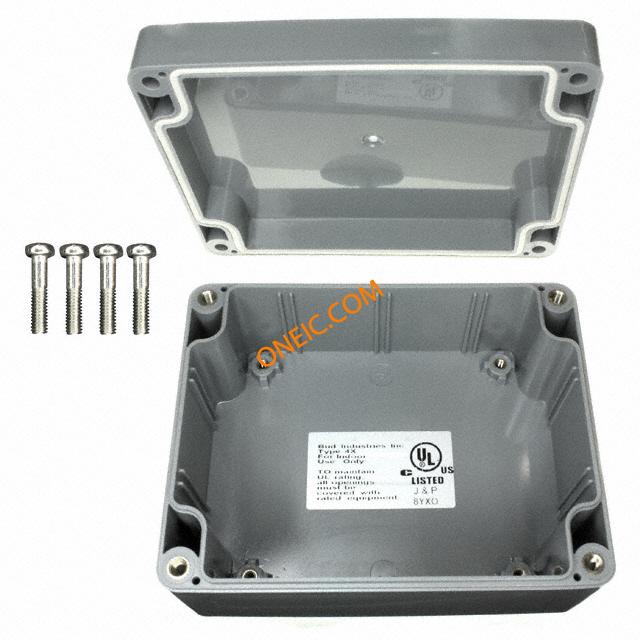

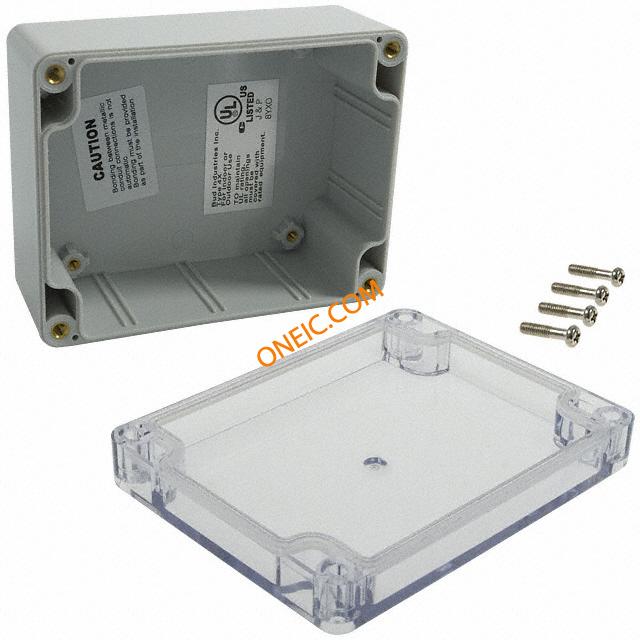

PN-1323 enclosures, boxes, & case 系列
Bud Industries, Inc.适用于壁挂和保护的耐用ABS和聚碳酸酯外壳
Bud Industries 的 PN-1323 系列提供了耐用的 ABS 和聚碳酸酯外壳，适用于壁挂安装，并能为您的电子元件提供坚固的保护。这些外壳常用于工业环境，如控制面板、暖通空调系统及其他需要承受灰尘、湿气和机械冲击等恶劣条件的设备。
如果您正在处理任何需要可靠保护外壳的壁挂电子产品项目，这些外壳都是不错的选择。值得一提的是，它们具有很高的灵活性；无需费力即可容纳各种尺寸和形状的电路板及组件。当工程师需要在不利环境中保护敏感电子元件时，往往会选用这种简单而有效的解决方案。另一个实用的好处是其易于安装——只需钻孔并使用提供的固定件将其固定在墙上即可。总体而言，PN-1323 系列在成本和性能之间取得了良好的平衡，成为许多工程师的首选选项。
系列图片（25 张）
文档与媒体
常见问答
PN-1323 enclosures, boxes, & case - 型号列表
共 9 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准包装数量 | 材料阻燃等级 | 颜色 | 高度 | 重量 | 材料（通用） | 厚度 | 面积（长x宽） | 尺寸/外形 | 设计类型 | 运输信息 | 容器类型 | 额定等级 | 产品 | RoHS | 深度 | 壳体颜色 | 安装类型 | 总宽度 | 外径-未扩张 | 类型 | 产品特性 | 制造商全称 | 配置 | 密封等级 | NEMA 机架尺寸 | 海关税号 | 宽度（英寸） | 高度（英寸） | 供应商器件封装 | 外部壳体材料 | 外壳尺寸 - 插入（转换自） | 标准包装规格 | 标准 | 宽度 | 长度 | 本体材料 | 外部壳体颜色 | 防护等级 | 工作温度 | 交货时间 | 子类别 | 螺丝材料 | 应用细节 | 认证机构 | 导线线规 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Enclosures, Boxes, & Cases 4.53 X 3.54 X 2.17 BOX POLY 4.53X3.54X2.17" GRY/CLR NEMA 4X SEALED POLYCAR.ENCLOSURE;LT.GRAY BODY;CLEAR COVER;4.53L X 3.54W X 2.17H Access Nema 4X Sealed Polycar Enclosure LT Gray Body Clear Cover 453L X 354W X 217H ENCLOSURE JUNCTION BOX POLYCARBONATE GRY Enclosure;Box-Lid;Polycarbonate,UL94HB;Gray/ClearLid;4.53x3.54x2.17In;PNSeries Bud Industries | 16 | 1: ¥90.60 | Enclosures, Boxes, & Cases | 1 | UL94 HB | Gray, Clear Cover/Door | 2.165" (55.00mm) | 0.344 lb (156.04g) | Plastic, Polycarbonate | 0.120" (3.05mm) | 16.0" (103cm) | 4.528" L x 3.543" W (115.01mm x 89.99mm) | Cover Included | Shipped from Digi-Key | Box | IP65, IP66, IP67, NEMA 1,2,4,4X,12,13, UL-508 | Electrical Boxes | Compliant | 4.53 in | :Grey | Wallmount | 3.54 in | 2.17 in | Box-Lid | Card Guides, PCB Supports | PNSeries | WithoutKnock-Outs | IP 66 | 1, 2, 4, 4X, 12, 13 | 85381000 | :3.54" | :4.53" | :Junction Box | :Polycarbonate | :115mm | 1 | ULListed | 3.543in. | 4.528in. | Polycarbonate | Clear | IP66 | -40to+120 | - | - | - | - | 4X | TransparentCover |
 Enclosures, Boxes, & Cases 4.53 X 3.54 X 2.17 BOX ABS 4.53X3.54X2.17" GRY ENCLOSURE; NEMA 4X SEALED; DARK GRAY ABS COVER AND BODY; 4.53 X 3.54 X 2.17 IN. Enclosure Nema 4X Sealed Dark Gray ABS Cover And Body 453 X 354 X 217 Inch Enclosure;Box-Lid;Wallmount;ABS,UL94HB;Gray;4.53x3.54x2.17In;NEMA13;PNSeries Bud Industries | 54 | 1: ¥71.40 | Enclosures, Boxes, & Cases | 1 | UL94 HB | Gray | 2.165" (55.00mm) | 0.344 lb (156.04g) | Plastic, ABS | 0.120" (3.05mm) | 16.0" (103cm) | 4.528" L x 3.543" W (115.01mm x 89.99mm) | Cover Included | Shipped from Digi-Key | Box | IP65, IP66, IP67, NEMA 1,2,4,4X,12,13, UL-508 | Electrical Boxes | Lead free / RoHS Compliant | 4.53 in | DarkGray | Wallmount | 3.54 in | 2.17 in | Box-Lid | Card Guides, PCB Supports | PNSeries | WithoutKnock-Outs | IP 66 | 1, 2, 4, 4X, 12, 13 | - | - | - | - | - | - | - | UL94-HBFlammabilityRating | 3.543in. | 4.528in. | HighImpactABS | DarkGray | IP66 | -40to+80°C | 42 Days | Boxes, Enclosures and Racks | StainlessSteel | Mobiledatarecordingandtransmissioninthefieldsofmedical,laboratoryandmeasuringtechnology,storageandsaleslogistics,digitalopenandclosed-loopcontroltechnology | - | - |
 Enclosures, Boxes, & Cases 4.53 X 3.54 X 2.17 BOX POLY 4.53X3.54X2.17" GRY NEMA 4X SEALED POLYCARBONATE; ENCLOSURE; LIGHT GRAY; 4.53 X 3.54 X 2.17 Nema 4X Sealed Polycarbonate Enclosure Light Gray 453 X 354 X 217 ENCLOSURE JUNCTION BOX POLYCARBONATE GRY Enclosure;Box-Lid;Wallmount;Polycarbonate,UL94HB;Gray;4.53x3.54x2.17In;NEMA13 Bud Industries | 522 | 1: ¥91.12 | Enclosures, Boxes, & Cases | 1 | UL94 HB | Gray | 2.165" (55.00mm) | 0.344 lb (156.04g) | Plastic, Polycarbonate | 0.120" (3.05mm) | 16.0" (103cm) | 4.528" L x 3.543" W (115.01mm x 89.99mm) | Cover Included | Shipped from Digi-Key | Box | IP65, IP66, IP67, NEMA 1,2,4,4X,12,13, UL-508 | Electrical Boxes | Lead free / RoHS Compliant | 4.53 in | :Grey | Wallmount | 3.54 in | 2.17 in | Box-Lid | Card Guides, PCB Supports | PNSeries | WithoutKnock-Outs | IP 66 | 1, 2, 4, 4X, 12, 13 | 85381000 | :3.54" | :4.53" | :Junction Box | :Polycarbonate | :115mm | - | UL94V-2FlammabilityRating | 3.543in. | 4.528in. | Polycarbonate | LightGray | IP66 | -40to+120°C | 20 Days | Boxes, Enclosures and Racks | StainlessSteel | Mobiledatarecordingandtransmissioninthefieldsofmedical,laboratoryandmeasuringtechnology,storageandsaleslogistics,digitalopenandclosed-loopcontroltechnology | - | - |
 Enclosures, Boxes, & Cases 4.53 x 3.54 x 2.17 POLYCARBONAT CLR LID BOX POLY 4.53X3.54X2.17" GRY/CLR Enclosures, Boxes, & Cases 4.53 x 3.54 x 2.17 POLY-GRAY W/CLR TOP ENCLOSURE, WALL MOUNT, POLYCARBONATE, LT GRAY Enclosure;Flanged;Polycarbonate,UL94HB;Gray/ClearLid;4.53x3.54x2.17In;PNSeries Bud Industries | 289 | 1: ¥85.68 | Enclosures, Boxes, & Cases | 1 | UL94 HB | Gray, Clear Cover/Door | 2.165" (55.00mm) | 0.4 lb (181.44g) | Plastic, Polycarbonate | 0.118" (3.00mm) | 16.0" (103cm) | 4.528" L x 3.543" W (115.01mm x 89.99mm) | Cover Included | Shipped from Digi-Key | Box with Mounting Flange | IP65, IP66, IP67, NEMA 1,2,4,4X,12,13, UL-508 | Electrical Boxes | RoHS Compliant | 4.53 in | :Grey | PanelMount | 2.56 in | 2.17 in | Flanged | Card Guides, PCB Supports | PNSeries | WithoutKnock-Outs | IP 66 | 1, 2, 4, 4X, 12, 13 | 39231000 | :3.54" | :4.53" | :Box | :Polycarbonate | :115.06mm | 1 | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Enclosures, Boxes, & Cases 4.53 x 3.54 x 2.17 ABS DK GRAY BODY/CVR BOX ABS 4.53X3.54X2.17" GRY ENCLOSURE, WALL MOUNT,ABS, DARK GRAY Enclosure;Flanged;Polycarbonate,UL94HB;Gray;4.53x3.54x2.17In;NEMA13;PNSeries Bud Industries | 25 | 1: ¥73.304 | Enclosures, Boxes, & Cases | 1 | UL94 HB | Gray | 2.165" (55.00mm) | 0.4 lb (181.44g) | Plastic, ABS | 0.118" (3.00mm) | 16.0" (103cm) | 4.528" L x 3.543" W (115.01mm x 89.99mm) | Cover Included | Shipped from Digi-Key | Box with Mounting Flange | IP65, IP66, IP67, NEMA 1,2,4,4X,12,13, UL-508 | Electrical Boxes | RoHS Compliant | 4.53 in | :Grey | PanelMount | 2.56 in | 2.17 in | Flanged | Card Guides, PCB Supports | PNSeries | WithoutKnock-Outs | IP 66 | 1, 2, 4, 4X, 12, 13 | 39231000 | :3.54" | :4.53" | :Box | :ABS | :115.06mm | 1 | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Enclosures, Boxes, & Cases 4.53 x 3.54 x 2.17 POLYCARBONATE LT GRY BOX POLY 4.53X3.54X2.17" GRY ENCLOSURE, WALL MOUNT, POLYCARBONATE, LT GRAY Enclosure;Flanged;Polycarbonate,UL94HB;Gray;4.53x3.54x2.17In;NEMA13;PNSeries Bud Industries | 31 | 1: ¥81.54 | Enclosures, Boxes, & Cases | 1 | UL94 HB | Gray | 2.165" (55.00mm) | 0.4 lb (181.44g) | Plastic, Polycarbonate | 0.118" (3.00mm) | 16.0" (103cm) | 4.528" L x 3.543" W (115.01mm x 89.99mm) | Cover Included | Shipped from Digi-Key | Box with Mounting Flange | IP65, IP66, IP67, NEMA 1,2,4,4X,12,13, UL-508 | Electrical Boxes | RoHS Compliant | 4.53 in | :Grey | PanelMount | 2.56 in | 2.17 in | Flanged | Card Guides, PCB Supports | PNSeries | WithoutKnock-Outs | IP 66 | 1, 2, 4, 4X, 12, 13 | 39231000 | :3.54" | :4.53" | :Box | :Polycarbonate | :115.06mm | 1 | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 100 | 1: ¥114.24 | - | 1 | UL94 HB | Gray | 2.165" (55.00mm) | 0.344 lb (156.04g) | Plastic, Polycarbonate | 0.120" (3.05mm) | 16.0" (103cm) | 4.528" L x 3.543" W (115.01mm x 89.99mm) | Cover Included | Shipped from Digi-Key | Box | IP65, IP66, IP67, NEMA 1,2,4,4X,12,13, UL-508 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 10 | 1: ¥35.768 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
