cigen-PM4HAH

PM4HAH timers & counter 系列

Panasonic Corporation

Panasonic Corporation

Panasonic multifunction time delay relays with 1s to 500h range

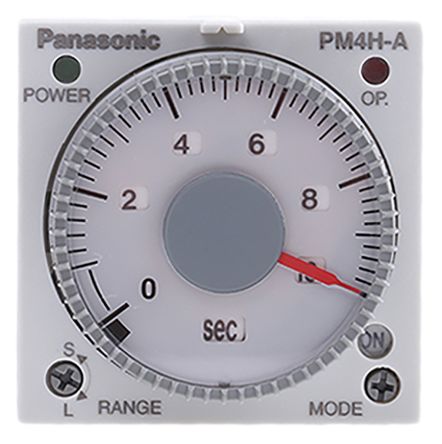

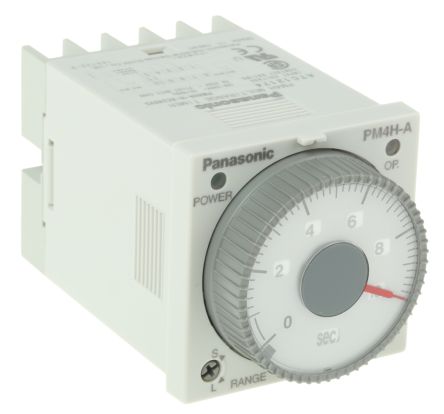

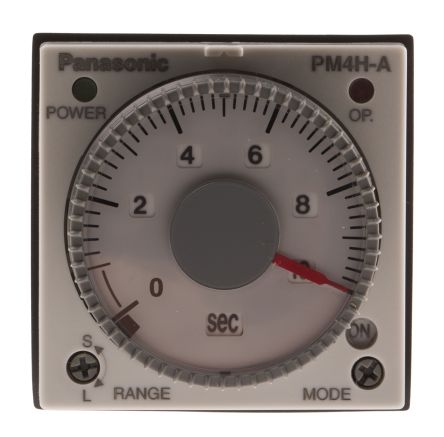

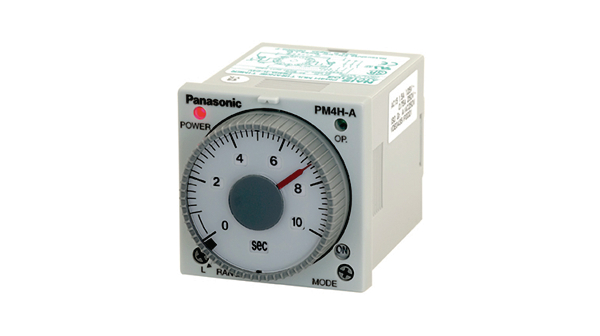

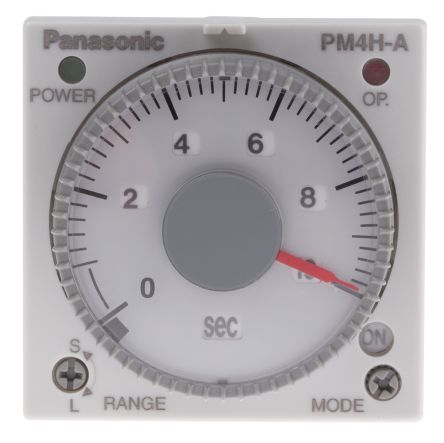

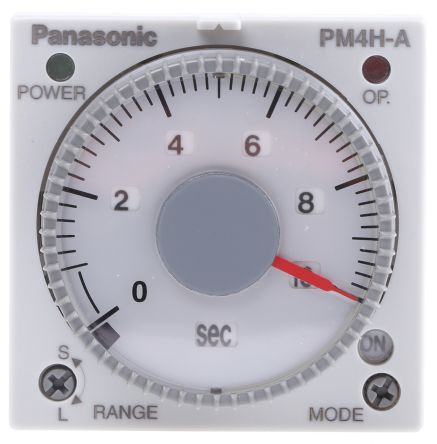

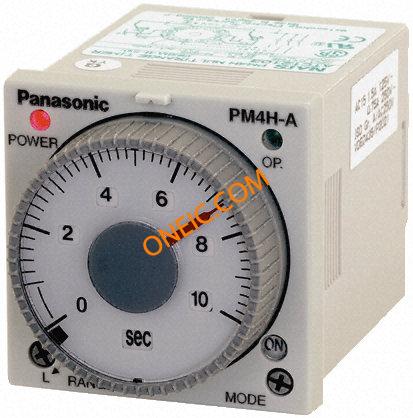

系列图片（7 张）

常见问答

内容由 AI 生成，仅供参考

加载中...

03

PM4HAH timers & counter - 型号列表

共 6 个型号

制造商零件编号	库存	价格	产品类别	延迟时间	工作模式	供电类型	深度	宽度	长度	安装类型	端子类型	宏单元数量	工作范围	工作温度	量程（°/s）	关断延迟时间	供电电压	连接器类型	触头材料	定时器数量	输出端	最大电压	开关功能	开关电流	最大额定电流	最小供电电压	总宽度	端接样式	面板开孔形状	功能	装配配置	防护等级	开关功能/额定值	触点数	典型触点布局	开关类型
3 PM4HAH24J Time Delay Relay Panasonic PM4HAH24J, 1 s to 500 h 11-Pin Connector 250V ac Analogue timer Multifunction, PM4HAH24J, Panasonic Panasonic 多功能计时继电器, 1 s → 500 小时, 24 V 交流/直流 Panasonic Corporation	30	¥282.15	-	100 ms	Differential ON/OFF Delay, Pulse Flicker, Pulse ON Delay, Pulse ON Flicker, Pulse One Cycle, Pulse One Shot, Signal OFF Delay	External	62.5mm	48mm	48mm	Front	11-Pin Connector	Multi Function	1 s → 500 h	+50°C	1 s...500 h	小时，秒	24 V ac/dc	11 引脚连接器	Silver Alloy	多功能	2 change-over (CO)	250 V ac	Multifunction	5 A@ 250 VAC	5 A	24 VAC/DC	48 x 48 x 66 mm	11-pin Socket	45 x 45 mm	8	DIN-rail	IP 50	-	-	-	-
3 PM4HAHAC240SJ Time Delay Relay Panasonic PM4HAHAC240SJ, 1 s to 500 h Screw 250V ac Analogue timer Multifunction, PM4HAHAC240SJ, Panasonic Panasonic 多功能计时继电器, 1 s → 500 小时, 100 → 240 V 交流 Panasonic Corporation	30	¥346.36	-	100 ms	Differential ON/OFF Delay, Pulse Flicker, Pulse ON Delay, Pulse ON Flicker, Pulse One Cycle, Pulse One Shot, Signal OFF Delay	External	62.5mm	48mm	48mm	Front	Screw	Multi Function	1 s → 500 h	+50°C	1 s...500 h	小时，秒	100 → 240 V ac	螺钉	Silver Alloy	多功能	2 change-over (CO)	250 V ac	Multifunction	5 A@ 250 VAC	5 A	100...240 VAC	48 x 48 x 62 mm	Screw Connection	45 x 45 mm	8	DIN-rail	IP 50	-	-	-	-
3 PM4HAHAC240J Time Delay Relay Panasonic PM4HAHAC240J, 1 s to 500 h 11-Pin Connector 250V ac Analogue timer Multifunction, PM4HAHAC240J, Panasonic Panasonic 多功能计时继电器, 1 s → 500 小时, 100 → 240 V 交流 Panasonic Corporation	10	¥308.54	-	100 ms	Differential ON/OFF Delay, Pulse Flicker, Pulse ON Delay, Pulse ON Flicker, Pulse One Cycle, Pulse One Shot, Signal OFF Delay	External	62.5mm	48mm	48mm	Front	11-Pin Connector	Multi Function	1 s → 500 h	+50°C	1 s...500 h	小时，秒	100 → 240 V ac	11 引脚连接器	Silver Alloy	多功能	2 change-over (CO)	250 V ac	Multifunction	5 A@ 250 VAC	5 A	100...240 VAC	48 x 48 x 66 mm	11-pin Socket	45 x 45 mm	8	DIN-rail	IP 50	-	-	-	-
PM4HAH24WJ Time Delay Relay Panasonic PM4HAH24WJ, 1 s to 500 h 11 Pins SPDT Panasonic Corporation	194	¥319.77	-	Hours, Seconds	ON Delay	External	62.5mm	48mm	48mm	Flush	11 Pins	Single	1 s → 500 h	+50°C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	SPDT	2	2NO/2NC	-
3 PM4HAH24SJ Time Delay Relay Panasonic PM4HAH24SJ, 1 s to 500 h Screw 250V ac Analogue timer Multifunction, PM4HAH24SJ, Panasonic Panasonic 多功能计时继电器, 1 s → 500 小时, 24 V 交流/直流 Panasonic Corporation	13	¥323.21	-	100 ms	Differential ON/OFF Delay, Pulse Flicker, Pulse ON Delay, Pulse ON Flicker, Pulse One Cycle, Pulse One Shot, Signal OFF Delay	External	62.5mm	48mm	48mm	Front	Screw	Multi Function	1 s → 500 h	+50°C	1 s...500 h	小时，秒	24 V ac/dc	螺钉	Silver Alloy	多功能	2 change-over (CO)	250 V ac	Multifunction	5 A@ 250 VAC	5 A	24 VAC/DC	48 x 48 x 62 mm	Screw Connection	45 x 45 mm	8	DIN-rail	IP 50	-	-	-	-
2 PM4HAHAC240SWJ Time Delay Relay Panasonic PM4HAHAC240SWJ, 1 s to 500 h Screw SPDT Panasonic PM4HAHAC240SJ 单计时继电器, 1 s → 500 小时, 双刀双掷, 2触点, SPDT, 100 → 240 V 交流 Panasonic Corporation	16	¥425.72	-	Hours, Seconds	ON Delay	External	62.5mm	48mm	48mm	Flush	Screw	Single	1 s → 500 h	+50°C	1 s → 500 h	小时，秒	100 → 240 V ac	螺钉	Silver Alloy	单	-	-	-	-	-	-	-	-	-	-	-	-	SPDT	2	2NO/2NC	SPDT
