PI6C22409-1 semiconductor 系列
Diodes IncorporatedHigh-speed, low-jitter zero-delay clock buffer ICs for precise timing applications
系列图片（2 张）
文档与媒体
常见问答
PI6C22409-1 semiconductor - 型号列表
共 8 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | RoHS | 包装方式 | 标准包装数量 | PLL | 输入端 | 输出端 | 最大频率 | 供电电压 | 分频/倍频 | 输入输出比 | 差分 - 输入:输出 | 安装类型 | 封装形式 | 供应商器件封装 | 类型 | 电路数 | 工作温度 | 标准封装名称 | 额定电压 | 频率范围 | 供电电流 | 元件数量 | 最小供电电压 | 共模瞬态抗扰度（最小） | 宽度 | 引脚样式 | 总长度 | 包装数量 | 位数 | 外壳尺寸-插件 | 印刷电路板数量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 PI6C22409-1HLIE Zero Delay PLL Clock Buffer Single 30MHz to 220MHz 16-Pin TSSOP Tube IC ZERO DELAY CLK BUFF 16TSSOP Phase Locked Loops - PLL O/p Lo Jitt/Skw Zero Delay Clk Drv/Hi Drv Diodes Incorporated | 0 | - | Lead free / RoHS Compliant | Tube | 96 | Yes with Bypass | TTL | TTL | 220MHz | 2.375 V ~ 3.6 V | No/No | 1:9 | No/No | Surface Mount | 16-TSSOP (0.173", 4.40mm Width) | 16-TSSOP | Zero Delay PLL Clock Buffer | 1 | -40°C ~ 85°C | TSSOP | 2.375 | 10 to 220 | 32 | 1 | 3.63 | Industrial | 4.5(Max) | Gull-wing | 5.1(Max) | TSSOP | 16 | 1.05(Max) | 16 | |

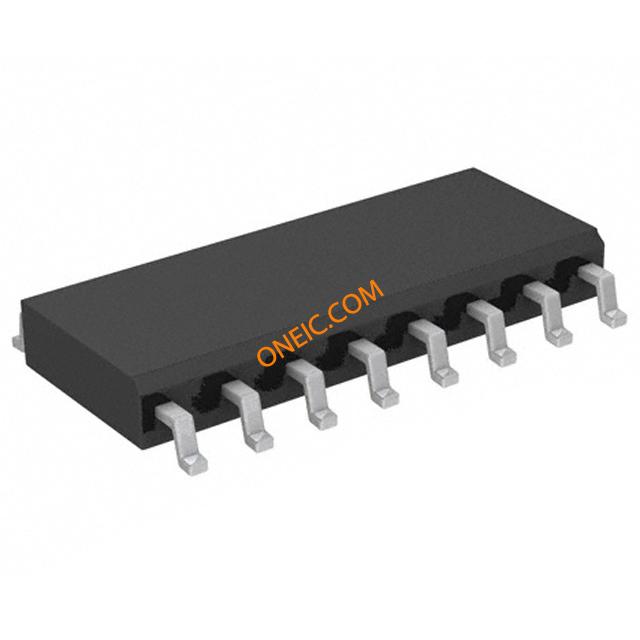

 PI6C22409-1HWE 200MHZ, HIGH SPEED, LOW JITTER IC ZERO DELY CLK BUFF 1:9 16SOIC Phase Locked Loops - PLL Hi speed low jitter low skew 1:9 Zero Diodes Incorporated | 0 | - | RoHS Compliant | Tube | 48 | Yes with Bypass | TTL | TTL | 220MHz | 2.375 V ~ 3.6 V | No/No | 1:9 | No/No | Surface Mount | 16-SOIC (0.154", 3.90mm Width) | 16-SOIC | * | 1 | 0°C ~ 70°C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
 PI6C22409-1HLEX 200MHZ, HIGH SPEED, LOW JITTER Phase Locked Loops - PLL High speed lo jitter low skew 1:9 Zero IC ZERO DELAY CLK BUFF 16TSSOP Diodes Incorporated | 0 | - | RoHS Compliant | Reel | 3,000 | Yes with Bypass | TTL | TTL | 220MHz | 2.375 V ~ 3.6 V | No/No | 1:9 | No/No | Surface Mount | 16-TSSOP (0.173", 4.40mm Width) | 16-TSSOP | * | 1 | 0°C ~ 70°C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
PI6C22409-1HWIE Zero Delay PLL Clock Buffer Single 30MHz to 220MHz 16-Pin SOIC Tube IC ZERO DELY CLK BUFF 1:9 16SOIC Phase Locked Loops - PLL O/p Lo Jitt/Skw Zero Delay Clk Drv/Hi Drv Diodes Incorporated | 0 | - | Lead free / RoHS Compliant | Tube | 48 | Yes with Bypass | TTL | TTL | 220MHz | 2.375 V ~ 3.6 V | No/No | 1:9 | No/No | Surface Mount | 16-SOIC (0.154", 3.90mm Width) | 16-SOIC | Zero Delay PLL Clock Buffer | 1 | -40°C ~ 85°C | SOIC | 2.375 | 10 to 220 | 32 | 1 | 3.63 | Industrial | 3.99(Max) | Gull-wing | 10(Max) | SOIC | 16 | 1.5(Max) | 16 | |
| 0 | - | RoHS Compliant | Tube | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
PI6C22409-1HWEX Phase Locked Loops - PLL Hi speed low jitter low skew 1:9 Zero IC ZERO DELY CLK BUFF 1:9 8SOIC Diodes Incorporated | 0 | - | RoHS Compliant | Reel | 3,000 | Yes with Bypass | TTL | TTL | 220MHz | 2.375 V ~ 3.6 V | No/No | 1:9 | No/No | Surface Mount | 16-SOIC (0.154", 3.90mm Width) | 16-SOIC | * | 1 | 0°C ~ 70°C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
PI6C22409-1HLIEX Phase Locked Loops - PLL O/p Lo Jitt/Skw Zero Delay Clk Drv/Hi Drv IC ZERO DELAY CLK BUFF 8TSSOP Diodes Incorporated | 0 | - | RoHS Compliant | Reel | 3,000 | Yes with Bypass | TTL | TTL | 220MHz | 2.375 V ~ 3.6 V | No/No | 1:9 | No/No | Surface Mount | 16-TSSOP (0.173", 4.40mm Width) | 16-TSSOP | * | 1 | -40°C ~ 85°C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
PI6C22409-1HWIEX Phase Locked Loops - PLL O/p Lo Jitt/Skw Zero Delay Clk Drv/Hi Drv IC ZERO DELY CLK BUFF 1:9 8SOIC Diodes Incorporated | 0 | - | RoHS Compliant | Reel | 3,000 | Yes with Bypass | TTL | TTL | 220MHz | 2.375 V ~ 3.6 V | No/No | 1:9 | No/No | Surface Mount | 16-SOIC (0.154", 3.90mm Width) | 16-SOIC | * | 1 | -40°C ~ 85°C | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
