PEL12S sensors, transducer 系列
Bourns, Inc.Color-coded rotary encoders with LED illumination and various detent options
系列图片（6 张）
常见问答
内容由 AI 生成，仅供参考
加载中...
03
PEL12S sensors, transducer - 型号列表
共 9 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准包装数量 | 输出类型 | 方向 | 致动器类型 | 安装类型 | 端接样式 | 旋转寿命（最小循环次数） | 制动位 | 编码器类型 | 内置振荡器 | 每转脉冲数 | 产品 | 其他名称 | RoHS | 海关税号 | 转速 | 输出端 | 分辨率 | 通道数量 | 重量 | 包装方式 | 轴径尺寸 | 轴细节 | 安装样式 | 轴直径 | 尺寸/外形 | 位数 | 轴和轴承长度 | 类型 | 系列 | 技术 | 制造商全称 | 其他规格 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

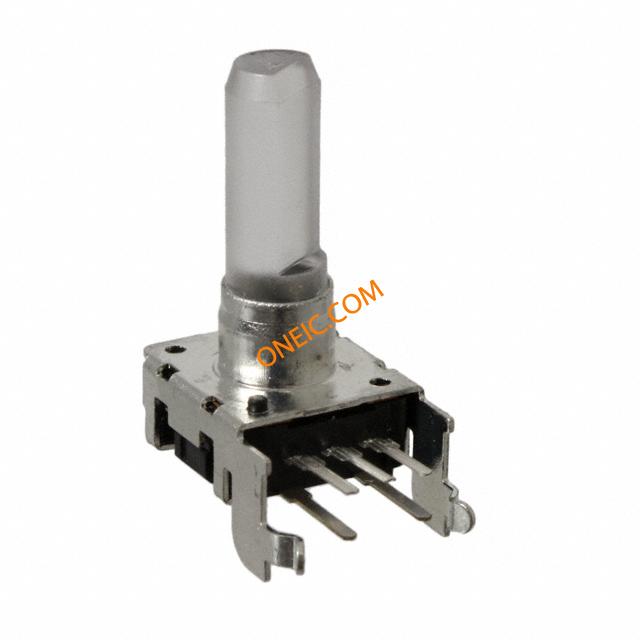

 PEL12S-2225F-N2024 Encoders Green LED Flatted 25mm 24detent ENCODER MECH ILL 12MM GREEN ROTARY ENCODER, INCREMENTAL, 24 PULSES Encoder;Green;24Detents;12MM Bourns | 77 | ¥9.36 | Encoders | 100 | Quadrature (Incremental) | Right Angle | 6mm Dia Flatted End, Illuminated | PCB, Through Hole | PC Pin | 30K | Yes | Mechanical | No | 24 | Mechanical Encoders | PEL12S2225FN2024 | RoHS Compliant | 85333100 | :100rpm | Quadrature | 24 PPR | 2 Channel | 0.105822 oz | Tray | Flatted | Flatted | Panel | 6 mm | 12 mm | 24 | 25 mm | Incremental | PEC12S | Rotary | PEL12Series | No Switch | - 10 C to + 70 C |

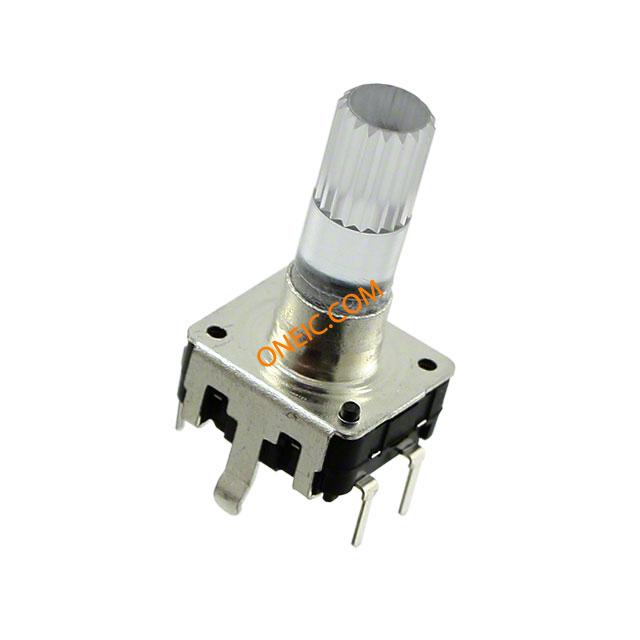

 PEL12S-4224S-N1024 Encoders Red LED Knurled 20mm 24detent ENCODER MECH ILL 12MM RED ROTARY ENCODER, INCREMENTAL, 24 PULSES Encoder;Red;24Detents;12MM Bourns | 14 | ¥9.06 | Encoders | 100 | Quadrature (Incremental) | Vertical | 6mm Dia Knurled End, Illuminated | PCB, Through Hole | PC Pin | 30K | Yes | Mechanical | No | 24 | Mechanical Encoders | PEL12S4224SN1024 | RoHS Compliant | 85333100 | :100rpm | Quadrature | 24 PPR | 2 Channel | 0.105822 oz | Tray | Knurled | Knurled | Panel | 6 mm | 12 mm | 24 | 24 mm | Incremental | PEC12S | Rotary | PEL12Series | No Switch | - 10 C to + 70 C |

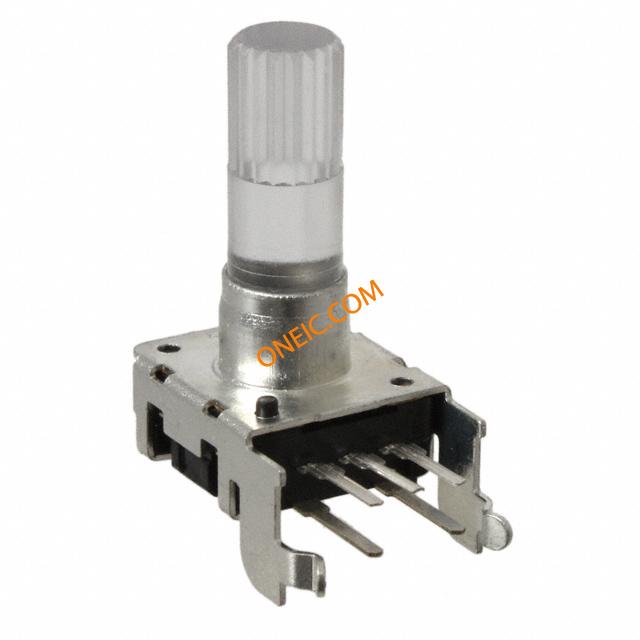

 PEL12S-2024S-N3024 Encoders Blue LED Knurled ENCODER MECH ILL 12MM BLUE ROTARY ENCODER, INCREMENTAL, 24 PULSES Encoder;Blue;12MM Bourns | 965 | ¥9.06 | Encoders | 100 | Quadrature (Incremental) | Right Angle | 6mm Dia Knurled End, Illuminated | PCB, Through Hole | PC Pin | 30K | No | Mechanical | No | 24 | Mechanical Encoders | PEL12S2024SN3024 | RoHS Compliant | 85333100 | :100rpm | Quadrature | 24 PPR | 2 Channel | 0.105822 oz | Tray | Knurled | Knurled | Panel | 6 mm | 12 mm | 0 | 24 mm | Incremental | PEC12S | Rotary | PEL12Series | No Switch | - 10 C to + 70 C |

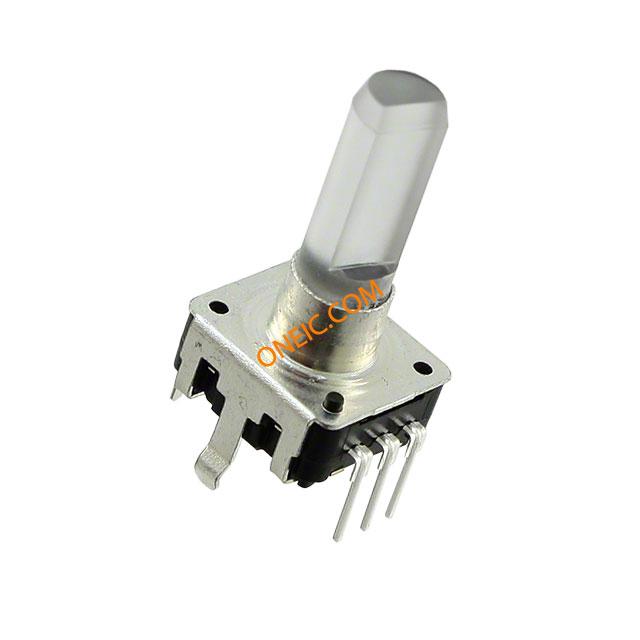

 PEL12S-4025F-N4024 Encoders Orange LED Flatted ENCODER MECH ILL 12MM ORANGE ROTARY ENCODER, INCREMENTAL, 24 PULSES Encoder;Orange;12MM Bourns | 675 | ¥8.86 | Encoders | 100 | Quadrature (Incremental) | Vertical | 6mm Dia Flatted End, Illuminated | PCB, Through Hole | PC Pin | 30K | No | Mechanical | No | 24 | Mechanical Encoders | PEL12S4025FN4024 | RoHS Compliant | 85333100 | :100rpm | Quadrature | 24 PPR | 2 Channel | 0.105822 oz | Tray | Flatted | Flatted | Panel | 6 mm | 12 mm | 0 | 25 mm | Incremental | PEC12S | Rotary | PEL12Series | No Switch | - 10 C to + 70 C |
 | 10 | ¥11.82 | - | 100 | Quadrature (Incremental) | Right Angle | 6mm Dia Flatted End, Illuminated | PCB, Through Hole | PC Pin | 30K | No | Mechanical | No | 24 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 10 | ¥11.82 | - | 100 | Quadrature (Incremental) | Vertical | 6mm Dia Flatted End, Illuminated | PCB, Through Hole | PC Pin | 30K | No | Mechanical | No | 24 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 10 | ¥11.82 | - | 100 | Quadrature (Incremental) | Vertical | 6mm Dia Flatted End, Illuminated | PCB, Through Hole | PC Pin | 30K | Yes | Mechanical | No | 24 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 10 | ¥11.82 | - | 100 | Quadrature (Incremental) | Vertical | 6mm Dia Knurled End, Illuminated | PCB, Through Hole | PC Pin | 30K | Yes | Mechanical | No | 24 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 10 | ¥10.61 | - | 100 | Quadrature (Incremental) | Vertical | 6mm Dia Flatted End, Illuminated | PCB, Through Hole | PC Pin | 30K | No | Mechanical | No | 24 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
