NSYSF201040 general purpose enclosure 系列
Schneider Electric SELarge Schneider Electric enclosures with optional mounting plates
系列图片（6 张）
文档与媒体
常见问答
内容由 AI 生成，仅供参考
加载中...
03
NSYSF201040 general purpose enclosure - 型号列表
共 5 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准 | 认证 | 颜色 | 材料（通用） | 锁定类型 | 开口尺寸 | 接触镀层 | 高度（英寸） | 总宽度 | 面板安装类型 | 尺寸/外形 | 衬套/护套类型 | 结构（如双向、串接等） | 成分 | 产品子类型 | 测量范围 | 安装类型 | 其他规格 | 应用细节 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NSYSF2010402DP SF w/mount plate 2D 2000x1000x400 Schneider Electric component NSYSF2010402DP: SF W/MOUNT PLATE 2D 2000X1000X400 Schneider Electric | 10 | 1: ¥6,202.5316 | - | IEC 62208 | BVDNVUL | Enclosure: grey RAL 7035Handle: black RAL 9005 | Galvanised steel for frameGalvanised steel for uprightsPolyamide 6 with 30 % fibre glass for handleSheet steel for doorSheet steel for panelsZamak for hinge | 4 points lock, handle with 5 mm double bar insert on front right door | Left 120 °Right 120 ° | Epoxy-polyester powder | 2000 mm | 1000 mm | Plain | 400 mm | Without gland plate | Formed from a single sectionVertical uprights joined with top and bottom framesPanels and doors built into the structurePerforated structure with a pitch of 25 mm | 1 blocking system for left door1 mounting plate1 rear panel1 roof1 structure2 sliding rails4 mounting plate bracket2 door1 locking system with handle | Suitable enclosure | Spacial SF | Floor-standing | 2 on front face | Multi-purpose | IP55 conforming to IEC 60529 |
NSYSF201040P SF w/mount plate 2000x1000x400 Schneider Electric component NSYSF201040P: Spacial SF enclosure with mounting plate - assembled - 2000x1000x400 mm Schneider Electric | 10 | 1: ¥5,487.2872 | - | IEC 62208 | BVDNVUL | Enclosure: grey RAL 7035Handle: black RAL 9005 | Galvanised steel for frameGalvanised steel for uprightsPolyamide 6 with 30 % fibre glass for handleSheet steel for doorSheet steel for panelsZamak for hinge | 4 points lock, handle with 5 mm double bar insert on front door | Reversible 120 ° | Epoxy-polyester powder | 2000 mm | 1000 mm | Plain | 400 mm | Without gland plate | Formed from a single sectionVertical uprights joined with top and bottom framesPanels and doors built into the structurePerforated structure with a pitch of 25 mm | 1 door1 mounting plate1 rear panel1 roof1 structure1 locking system with handle for door2 sliding rails4 mounting plate bracket | Suitable enclosure | Spacial SF | Floor-standing | 1 on front | Multi-purpose | IP55 conforming to IEC 60529 |

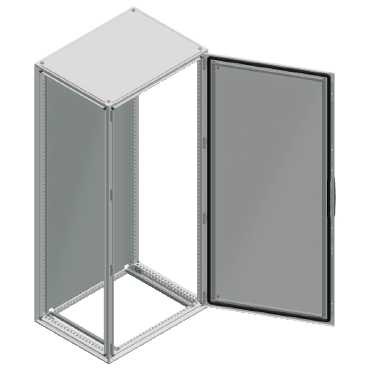

 NSYSF201040 Schneider Electric component NSYSF201040: SF WO/MOUNT PLATE 2000X1000X400, Schneider Electric | 0 | - | IEC 62208 | BVDNVUL | Enclosure: grey RAL 7035Handle: black RAL 9005 | Galvanised steel for frameGalvanised steel for uprightsPolyamide 6 with 30 % fibre glass for handleSheet steel for doorSheet steel for panelsZamak for hinge | 4 points lock, handle with 5 mm double bar insert on front door | Reversible 120 ° | Epoxy-polyester powder | 2000 mm | 1000 mm | Without mounting plate | 400 mm | Without gland plate | Formed from a single sectionVertical uprights joined with top and bottom framesPanels and doors built into the structurePerforated structure with a pitch of 25 mm | 1 door1 rear panel1 roof1 structure1 locking system with handle for door2 sliding rails4 mounting plate bracket | Suitable enclosure | Spacial SF | Floor-standing | 1 on front | Multi-purpose | IP55 conforming to IEC 60529 | |
 NSYSF2010402D Schneider Electric component NSYSF2010402D: SF WO/MOUN PLATE 2D 2000X1000X400 Schneider Electric | 0 | - | IEC 62208 | BVDNVUL | Enclosure: grey RAL 7035Handle: black RAL 9005 | Galvanised steel for frameGalvanised steel for uprightsPolyamide 6 with 30 % fibre glass for handleSheet steel for doorSheet steel for panelsZamak for hinge | 4 points lock, handle with 5 mm double bar insert on front right door | Left 120 °Right 120 ° | Epoxy-polyester powder | 2000 mm | 1000 mm | Without mounting plate | 400 mm | Without gland plate | Formed from a single sectionVertical uprights joined with top and bottom framesPanels and doors built into the structurePerforated structure with a pitch of 25 mm | 1 blocking system for left door1 rear panel1 roof1 structure2 sliding rails4 mounting plate bracket2 door1 locking system with handle | Suitable enclosure | Spacial SF | Floor-standing | 2 on front face | Multi-purpose | IP55 conforming to IEC 60529 | |

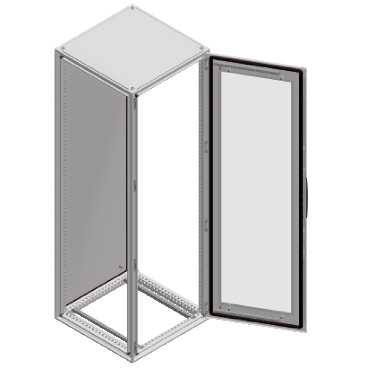

 NSYSF201040T Schneider Electric component NSYSF201040T: Spacial SF enclosure glazed door - assembled - 2000x1000x400 mm Schneider Electric | 0 | - | IEC 62208 | BVDNVUL | Enclosure: grey RAL 7035Handle: black RAL 9005 | Galvanised steel for frameGalvanised steel for uprightsPolyamide 6 with 30 % fibre glass for handleSecurit glass for doorSheet steel for doorSheet steel for panelsZamak for hinge | 4 points lock, handle with 5 mm double bar insert on front door | Reversible 120 ° | Epoxy-polyester powder | 2000 mm | 1000 mm | Without mounting plate | 400 mm | Without gland plate | Formed from a single sectionVertical uprights joined with top and bottom framesPanels and doors built into the structurePerforated structure with a pitch of 25 mm | 1 door1 rear panel1 roof1 structure1 locking system with handle for door2 sliding rails4 mounting plate bracket | Suitable enclosure | Spacial SF | Floor-standing | 1 on front | Multi-purpose | IP55 conforming to IEC 60529 |
第 1 / 1 页
1
