NHD-0208AZ optoelectronic 系列
Newhaven Display International, Inc.STN 液晶字符模块，具有反射式或反射透射式显示
Newhaven Display International, Inc. 的 NHD-0208AZ 系列由 STN 液晶字符模块组成，提供反射式和透反式显示选项。这些模块广泛应用于各种嵌入式系统和控制面板中，在不同光照条件下需要清晰可见。反射式显示器在明亮环境中表现良好，而透反式显示器则能在明亮和昏暗环境下提供良好的可见度，使其适用于室内外应用。
值得注意的是，这些模块如何处理背光。虽然它们支持无背光的反射式显示，但透反式模型也可以使用可选背光以在较暗条件下获得更好的可见度。这种双重功能使它们成为希望为工业控制、销售终端和医疗设备等设备创建坚固且用户友好的界面的工程师们的热门选择。
如果你的项目需要在不同光照条件下都能清晰阅读的显示，那么这些 NHD-0208AZ 模块可能非常适合。它们在成本效益和性能之间提供了平衡，这是许多工程应用中的一个重要考虑因素。当工程师们需要一种能够在多种环境条件下可靠工作的显示解决方案，而不需要复杂的或昂贵的附加组件时，他们往往会选择这个系列。
系列图片（14 张）
文档与媒体
常见问答
NHD-0208AZ optoelectronic - 型号列表
共 8 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 产品 | 标准包装数量 | RoHS | 背光 | 接口 | 显示类型 | 供电电压 | 尺寸 | 包装方式 | 文字颜色 | 底色 | 外形尺寸 长x宽x高 | 点尺寸 | 显示模式 | 可视区域 | 字符尺寸 | 显示格式 | 字符格式 | 位数或字符数 | 字符数 | 流体类型 | 工作温度 | LED正向电流 | 其他名称 | 工厂包装数量 | 机械寿命 | 产品特性 | 系列 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LCD Character Display Modules & Accessories STN-Y/G Refl 40.0 x 35.4 LCD MOD CHAR 2X8 Y/G REFL Newhaven Display | 0 | LCD Character Display Modules & Accessories | LCD Character Display Modules | 100 | RoHS Compliant | Without Backlight | Parallel | STN - Super-Twisted Nematic | 3 V | 40 mm x 35.4 mm x 8 mm | Bulk | Gray | None | 40.00mm x 35.40mm x 13.50mm | 0.55mm W x 0.55mm H | Reflective | 30.4 mm x 13.9 mm | 4.75mm H x 2.95mm W | 8 x 2 | 5 x 8 Dots | 8 x 2 | 16 | STN | - 20 C to + 70 C | None | - | - | Obsolete | - | - | |
 LCD Character Display Modules & Accessories STN- GRAY Refl 40.0 x 35.4 LCD MOD CHAR 2X8 GRY REFL Newhaven Display | 234 | 1: ¥56.44 | LCD Character Display Modules & Accessories | LCD Character Display Modules | 100 | RoHS Compliant | Without Backlight | Parallel | STN - Super-Twisted Nematic | 5 V | 40 mm x 35.4 mm x 8 mm | Bulk | Blue | Gray | 40.00mm x 23.20mm x 13.50mm | 0.55mm W x 0.55mm H | Reflective | 30.4 mm x 13.9 mm | 4.75mm H x 2.95mm W | 8 x 2 | 5 x 8 Dots | 8 x 2 | 16 | STN | - 20 C to + 70 C | None | - | - | - | - | - |

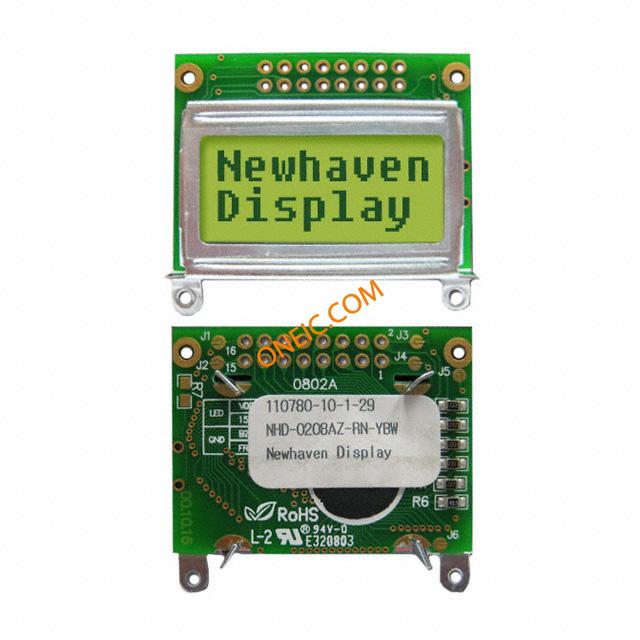

 LCD Character Display Modules & Accessories STN- Y/G Refl 40.0 x 35.4 LCD MOD CHAR 2X8 Y/G REFL Character Module STN Reflective 8Char x 2Line 16-Pin Newhaven Display | 25 | 1: ¥29.988 | LCD Character Display Modules & Accessories | LCD Character Display Modules | 50 | RoHS Compliant | Without Backlight | Parallel | STN - Super-Twisted Nematic | 5 V | 40 mm x 35.4 mm x 13 mm | Bulk | Gray | Yellow / Green | 40.00mm x 35.40mm x 13.50mm | 0.55mm W x 0.55mm H | Reflective | 30.40mm L x 13.90mm W | 4.75mm H x 2.95mm W | 8 x 2 | 5 x 8 Dots | 8 x 2 | 16 | STN | - 20 C to + 70 C | LED Yellow/Green | NHD0208AZRNYBW | 50 | - | - | - |
 LCD Character Display Modules & Accessories STN- GRAY Transfl 40.0 x 35.4 LCD MOD CHAR 2X8 TRANSF Newhaven Display | 0 | LCD Character Display Modules & Accessories | LCD Character Display Modules | 100 | RoHS Compliant | LED - White | Parallel | STN - Super-Twisted Nematic | 3 V | 40 mm x 35.4 mm x 13.5 mm | Bulk | Blue | Gray | 40.00mm x 23.20mm x 13.50mm | 0.55mm W x 0.55mm H | Transflective | 30.4 mm x 13.9 mm | 4.75mm H x 2.95mm W | 8 x 2 | 5 x 8 Dots | 8 x 2 | 16 | STN | - 20 C to + 70 C | Side LED White | - | - | Obsolete | - | - | |

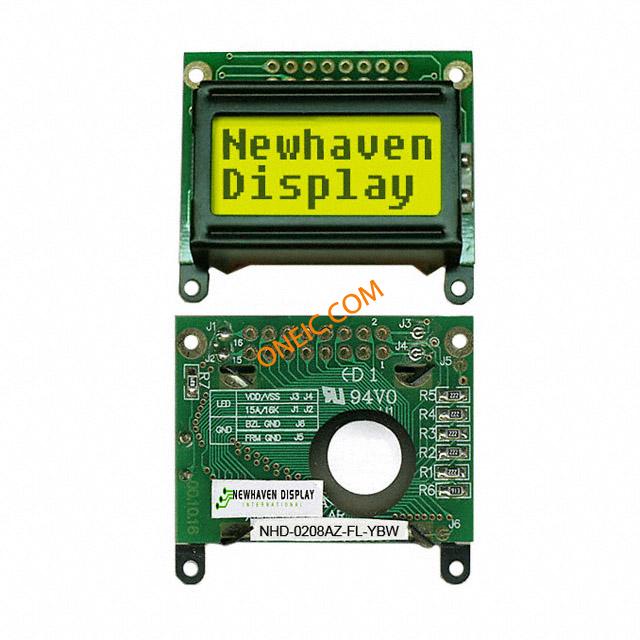

 LCD Character Display Modules & Accessories STN- Y/G Transfl 40.0 x 35.4 LCD MOD CHAR 2X8 Y/G TRANSFL Character Module STN Transflective 8Char x 2Line 16-Pin Newhaven Display | 130 | 1: ¥38.42 | LCD Character Display Modules & Accessories | LCD Character Display Modules | 50 | RoHS Compliant | LED - Yellow/Green | Parallel | STN - Super-Twisted Nematic | 5 V | 40 mm x 35.4 mm x 13 mm | Bulk | Gray | Yellow/Green | 40.00mm x 23.20mm x 13.50mm | 0.55mm W x 0.55mm H | Transflective | 30.40mm L x 13.90mm W | 4.75mm H x 2.95mm W | 8 x 2 | 5 x 8 Dots | 8 x 2 | 16 | STN | - 20 C to + 70 C | LED Yellow/Green | NHD0208AZFLYBW | 50 | - | - | - |
 LCD Character Display Modules & Accessories STN- GRAY Transfl 40.0 x 35.4 LCD MOD CHAR 2X8 Y/G TRANSFL Newhaven Display | 792 | 1: ¥38.42 | LCD Character Display Modules & Accessories | LCD Character Display Modules | 50 | RoHS Compliant | LED - Yellow/Green | Parallel | STN - Super-Twisted Nematic | 5 V | 40 mm x 35.4 mm x 13 mm | Bulk | Gray | Yellow/Green | 40.00mm x 23.20mm x 13.50mm | 0.55mm W x 0.55mm H | Transflective | 30.40mm L x 13.90mm W | 4.75mm H x 2.95mm W | 8 x 2 | 5 x 8 Dots | 8 x 2 | 16 | STN | - 20 C to + 70 C | LED Yellow/Green | NHD0208AZFLGBW | 50 | - | - | - |

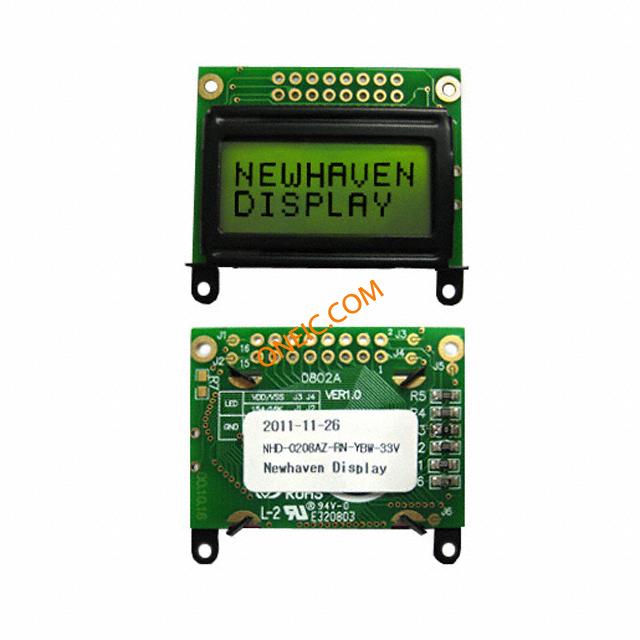

 LCD MOD CHAR 2X8 Y/G REFL STN LCD Character Display Modules & Accessories STN-Y/G Refl 40.0 x 35.4 Newhaven Display Intl | 200 | 10: ¥61.7161 | LCD Character Display Modules & Accessories | LCD Character Display Modules | 100 | RoHS Compliant | Without Backlight | Parallel | STN - Super-Twisted Nematic | 3.3 V ~ 5.5 V | 40 mm x 35.4 mm x 8 mm | Bulk | Black | Green | 40.00mm x 35.40mm x 8.00mm | 0.55mm W x 0.55mm H | Reflective | 30.40mm L x 13.90mm W | 4.75mm H x 2.95mm W | 8 x 2 | 5 x 8 Dots | 8 x 2 | 16 | STN | -20°C ~ 70°C | - | NHD0208AZRNYBW33V | 100 | - | Built-in controller ST7066U or equivalent | - |

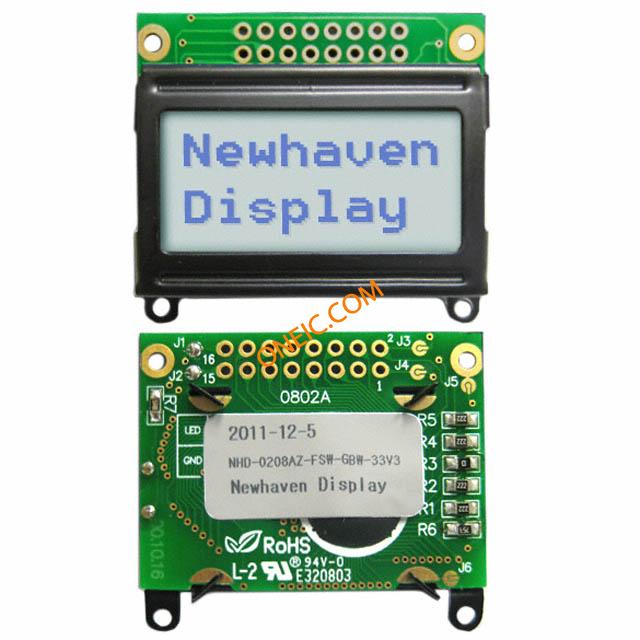

 LCD MOD CHAR 2X8 Y/G TRANSFL STN LCD Character Display Modules & Accessories STN- GRAY Transfl 40.0 x 35.4 Newhaven Display Intl | 877 | 1: ¥41.48 | LCD Character Display Modules & Accessories | LCD Character Display Modules | 100 | RoHS Compliant | LED - White | Parallel | STN - Super-Twisted Nematic | 3.3V | 40 mm x 35.4 mm x 13.5 mm | Bulk | Blue | Gray | 40.00mm x 35.40mm x 13.50mm | 0.55mm W x 0.55mm H | Transflective | 30.40mm L x 13.90mm W | 4.75mm H x 2.95mm W | 8 x 2 | 5 x 8 Dots | 8 x 2 | 16 | STN | -20°C ~ 70°C | Side LED White | NHD0208AZFSWGBW33V3 | 100 | - | Built-in controller ST7066U | NHD-0208AZ |
