N454-T Interchangeable solder tips fo 系列
HAKKO CorporationN454焊枪用可互换焊锡嘴，多种形状和尺寸
HAKKO Corporation 的 N454-T 可互换焊头适用于其 N454 系列电烙铁。这些焊头有多种形状和尺寸，使用户能够根据不同的需求调整焊接过程。如果您正在处理需要对焊头进行精确控制的项目，例如细间距表面安装技术（SMT）组装或精细的 PCB 修复，这些焊头将非常有用。值得注意的是，它们提供了一种快速简便的方法来更换焊头，而无需每次更换焊头时都调整电烙铁设置，这在复杂的组装任务中可以节省大量时间。当工程师需要在多种类型的焊点之间进行灵活且精确的焊接工作时，往往会选择这种焊头，尤其是在需要多种焊点类型的应用环境中。快速切换焊头的能力还可以帮助在整个不同组件和板设计中保持一致的焊接质量。
系列图片（7 张）
常见问答
内容由 AI 生成，仅供参考
加载中...
03
N454-T Interchangeable solder tips fo - 型号列表
共 9 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 尖端尺寸 | 尖端形状 | 尖端长度 | 系列 | 制造商全称 | 产品子类型 | 适用产品/相关产品 | 标准包装规格 |
|---|---|---|---|---|---|---|---|---|---|---|---|

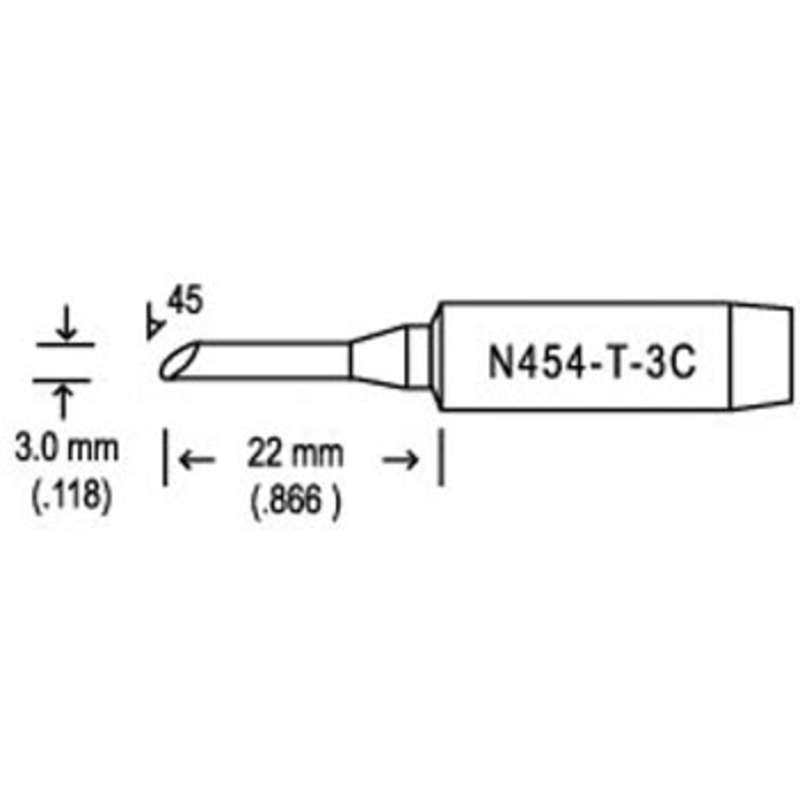

 Tip,3C,Dash,N454 Used With Soldering Stations N454 Series 45° Beveled Solder Tip for N454 Iron, 3.00mm Hakko | 10 | 1: ¥58.956 | - | 3mm | 45° | 22mm | DASH Series | Hakko | Soldering Tip | HAKKO DASH - N452 (15W) Handpiece, HAKKO DASH - N453 (20W) Handpiece, HAKKO DASH - N454 (25W) Handpiece No narrow pitch type (Shape S) | - |
 | 10 | 1: ¥49.912 | - | - | - | - | - | - | - | - | 1 |
 Tip,D,Dash,N454 Used With N454 Dash Soldering Iron N454 Series Chisel Solder Tip for N454 Iron, 3.00mm Hakko | 10 | 1: ¥49.912 | - | 3 x 0.8mm | Chisel | 22mm | DASH Series | Hakko | Soldering Tip | HAKKO DASH - N452 (15W) Handpiece, HAKKO DASH - N453 (20W) Handpiece, HAKKO DASH - N454 (25W) Handpiece No narrow pitch type (Shape S) | - |
| 10 | 1: ¥49.912 | - | - | - | - | - | - | - | - | - |
 Tip,I,Dash,N454 Used With N454 Dash Soldering Iron N454 Series Pointed Conical Solder Tip for N454 Iron, .40mm Hakko | 10 | 1: ¥49.912 | - | 0.4mm | Conical | 23mm | DASH Series | Hakko | Soldering Tip | HAKKO DASH - N452 (15W) Handpiece, HAKKO DASH - N453 (20W) Handpiece, HAKKO DASH - N454 (25W) Handpiece No narrow pitch type (Shape S) | - |

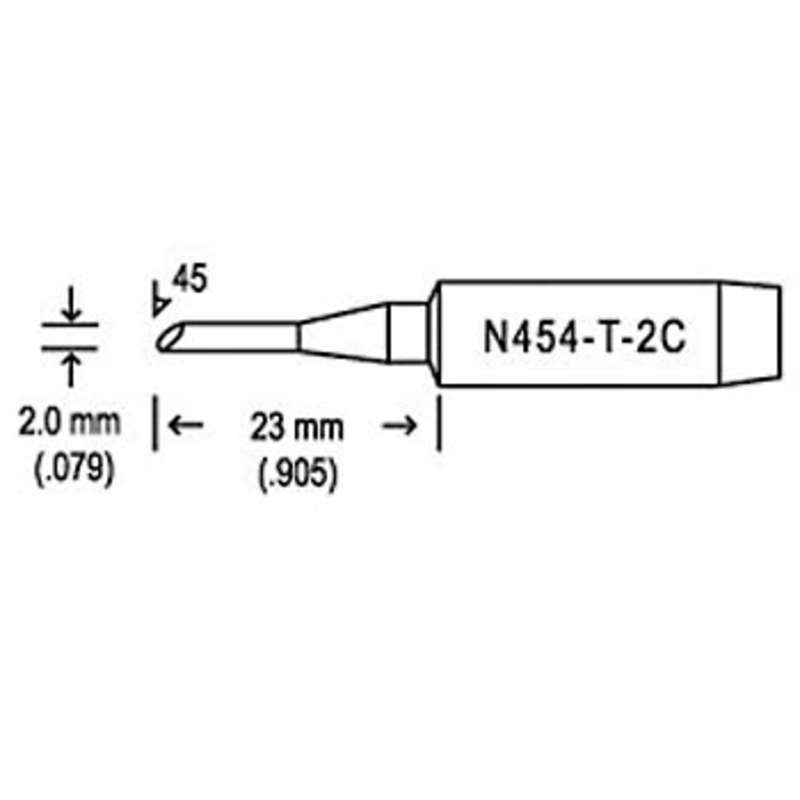

 | 0 | - | 2mm | 45° | 23mm | DASH Series | Hakko | Soldering Tip | HAKKO DASH - N452 (15W) Handpiece, HAKKO DASH - N453 (20W) Handpiece, HAKKO DASH - N454 (25W) Handpiece No narrow pitch type (Shape S) | - | |

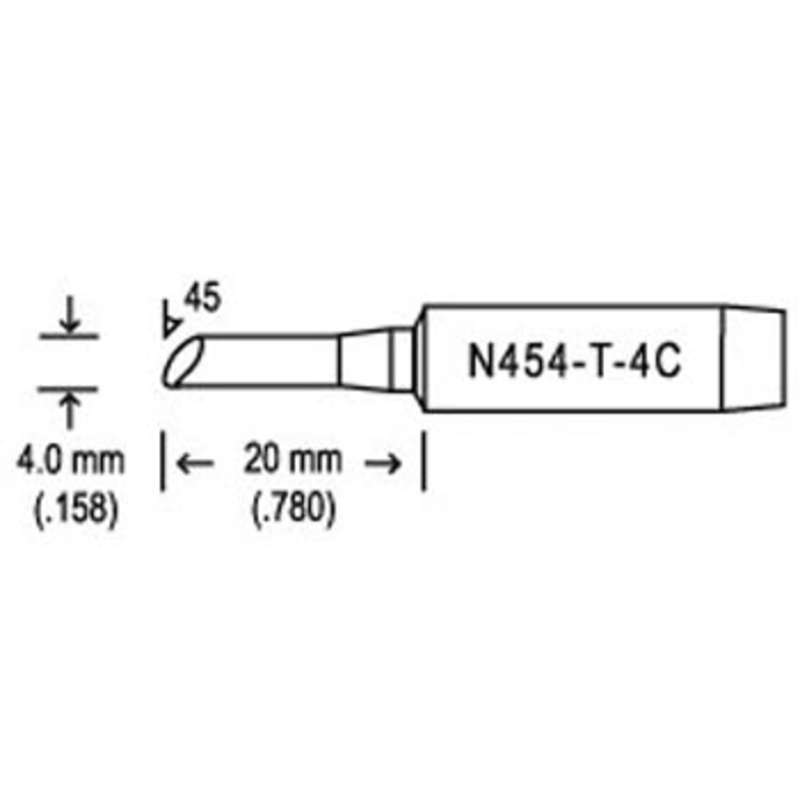

 | 0 | - | 4mm | 45° | 20mm | DASH Series | Hakko | Soldering Tip | HAKKO DASH - N452 (15W) Handpiece, HAKKO DASH - N453 (20W) Handpiece, HAKKO DASH - N454 (25W) Handpiece No narrow pitch type (Shape S) | - | |

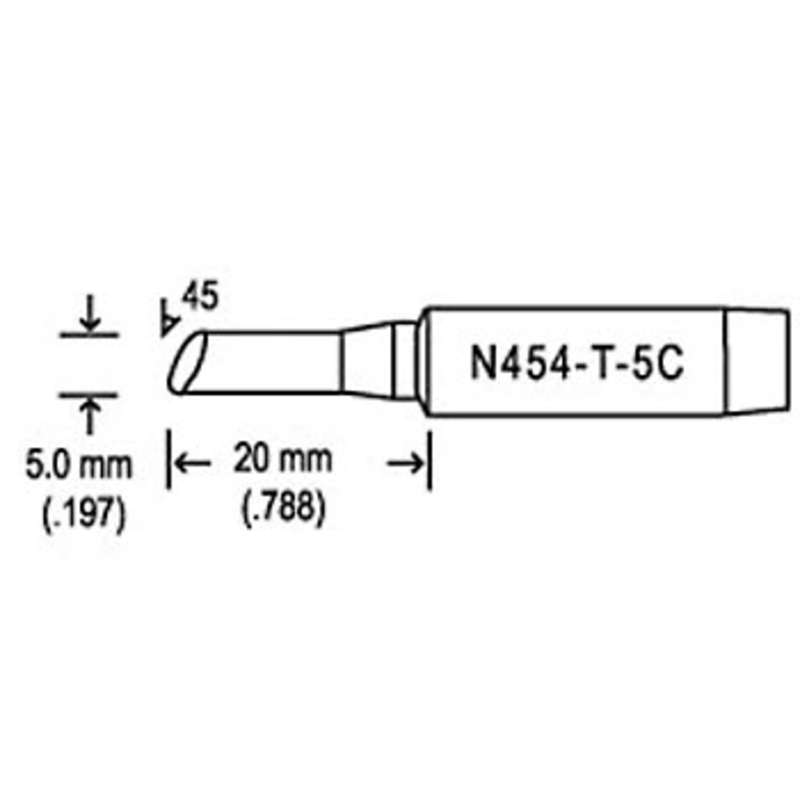

 | 0 | - | 5mm | 45° | 20mm | DASH Series | Hakko | Soldering Tip | HAKKO DASH - N452 (15W) Handpiece, HAKKO DASH - N453 (20W) Handpiece, HAKKO DASH - N454 (25W) Handpiece No narrow pitch type (Shape S) | - | |
 | 0 | - | 0.5mm | Conical | 20mm | DASH Series | Hakko | Soldering Tip | HAKKO DASH - N452 (15W) Handpiece, HAKKO DASH - N453 (20W) Handpiece, HAKKO DASH - N454 (25W) Handpiece No narrow pitch type (Shape S) | - |
