MS0850506F switche 系列
E-Switch, Inc.Miniature snap action switches for PCB mounting, 5A 125/250VAC
系列图片（2 张）
文档与媒体
常见问答
MS0850506F switche - 型号列表
共 13 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准包装数量 | 电路 | 额定电压 | 开关功能 | 最大额定电流 | 包装方式 | 预行程 | 致动器类型 | 安装类型 | 释放力 | 操作力 | 端接样式 | 系列 | 电气寿命 | 工作高度 | 机械寿命 | 工作温度 | RoHS | 触点形式 | 类型 | 卡标准 | 标准包装规格 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MS0850506F035V2A Basic / Snap Action Switches 5A 125/250VAC SPDT Left Angle PCB Pin SWITCH SNAP ACTION LIMIT E-Switch | 10 | ¥5.31 | - | 1 | SPDT | 125V | On-Mom | 5A (AC) | Bulk | 0.161" (4.1mm) | Lever, Leaf | Through Hole, Right Angle | 20gf | 35gf | PC Pin | MS | 50,000 Cycles | 0.547" (13.9mm) | 1,000,000 Cycles | -25°C ~ 85°C | Lead free / RoHS Compliant | SPDT | - | - | - |
 MS0850506F065C1C Basic / Snap Action Switches 5A 125/250VAC SPSTNO .110 Quick Connect SW SNPACT MIN SPST NO 5A 0.110" Series MS Miniature Snap Action Switch E-Switch | 10 | ¥5.31 | - | 1 | SPST-NO | 125V | Off-Mom | 5A (AC) | Bulk | 0.161" (4.1mm) | Lever, Leaf | Chassis Mount | 25gf | 65gf | Quick Connect - 0.110" (2.8mm) | MS | 50,000 Cycles | 0.547" (13.9mm) | 1,000,000 Cycles | -25°C ~ 85°C | - | - | Switches | Snap-Action Switch | - |
MS0850506F035V1C Basic / Snap Action Switches 5A 125/250VAC SPSTNO Right Angle PCB Pin SWITCH SNAP ACTION LIMIT E-Switch | 10 | ¥5.31 | - | 1 | SPST-NO | 125V | Off-Mom | 5A (AC) | Bulk | 0.161" (4.1mm) | Lever, Leaf | Through Hole, Right Angle | 20gf | 35gf | PC Pin | MS | 50,000 Cycles | 0.547" (13.9mm) | 1,000,000 Cycles | -25°C ~ 85°C | Lead free / RoHS Compliant | - | - | - | - |
MS0850506F040P1A Basic / Snap Action Switches 5A 125/250VAC SPDT PCB Pin SW SNPACT MIN 5A SPDT PCB PIN Series MS Miniature Snap Action Switch E-Switch | 10 | ¥5.31 | - | 1 | SPDT | 125V | On-Mom | 5A (AC) | Bulk | 0.161" (4.1mm) | Lever, Leaf | Through Hole | 20gf | 40gf | PC Pin | MS | 50,000 Cycles | 0.547" (13.9mm) | 1,000,000 Cycles | -25°C ~ 85°C | - | SPDT | Switches | Snap-Action Switch | - |
MS0850506F035V1A Basic / Snap Action Switches 5A 125/250VAC SPDT Right Angle PCB Pin SWITCH SNAP ACTION LIMIT E-Switch | 10 | ¥5.31 | - | 1 | SPDT | 125V | On-Mom | 5A (AC) | Bulk | 0.161" (4.1mm) | Lever, Leaf | Through Hole, Right Angle | 20gf | 35gf | PC Pin | MS | 50,000 Cycles | 0.547" (13.9mm) | 1,000,000 Cycles | -25°C ~ 85°C | Lead free / RoHS Compliant | SPDT | - | - | - |
MS0850506F020P1C Basic / Snap Action Switches 5A 125/250VAC SPSTNO PCB Pin SW MIN SPST NO 5A PCB PIN 125V Series MS Miniature Snap Action Switch E-Switch | 392 | ¥4.64 | - | 1 | SPST-NO | 125V | Off-Mom | 5A (AC) | Bulk | 0.161" (4.1mm) | Lever, Leaf | Through Hole | 8gf | 20gf | PC Pin | MS | 50,000 Cycles | 0.547" (13.9mm) | 1,000,000 Cycles | -25°C ~ 85°C | - | - | Switches | Snap-Action Switch | 1 |
MS0850506F020V2A SWITCH SNAP ACTION MINIATURE SW SNAP ACTION MINIATURE 125V Basic / Snap Action Switches 5A 125/250VAC SPDT Left Angle PCB Pin E-Switch | 193 | ¥4.65 | - | 270 | SPDT | 125V | On-Mom | 5A (AC) | Bulk | 0.161" (4.1mm) | Lever, Leaf | Through Hole, Right Angle | 8gf | 20gf | PC Pin | MS | 50,000 Cycles | 0.547" (13.9mm) | 1,000,000 Cycles | -25°C ~ 85°C | - | - | - | - | 270 |
MS0850506F075P1A SWITCH SNAP ACTION MINIATURE SW SNAP ACTION MINIATURE 125V Basic / Snap Action Switches 5A 125/250VAC SPDT PCB Pin E-Switch | 114 | ¥4.65 | - | 270 | SPDT | 125V | On-Mom | 5A (AC) | Bulk | 0.161" (4.1mm) | Lever, Leaf | Through Hole | 25gf | 75gf | PC Pin | MS | 50,000 Cycles | 0.547" (13.9mm) | 1,000,000 Cycles | -25°C ~ 85°C | - | - | - | - | - |
MS0850506F030P1C SWITCH SNAP ACTION LIMIT Basic / Snap Action Switches 5A 125/250VAC SPSTNO PCB Pin E-Switch | 10 | ¥5.31 | - | 1 | SPST-NO | 125V | Off-Mom | 5A (AC) | Bulk | 0.161" (4.1mm) | Lever, Leaf | Through Hole | 12gf | 30gf | PC Pin | MS | 50,000 Cycles | 0.547" (13.9mm) | 1,000,000 Cycles | -25°C ~ 85°C | Lead free / RoHS Compliant | - | - | - | - |
MS0850506F065S1C SWITCH SNAP ACTION LIMIT Basic / Snap Action Switches 5A 125/250VAC SPSTNO Solder Lug E-Switch | 10 | ¥5.31 | - | 1 | SPST-NO | 125V | Off-Mom | 5A (AC) | Bulk | 0.161" (4.1mm) | Lever, Leaf | Chassis Mount | 25gf | 65gf | Solder Lug | MS | 50,000 Cycles | 0.547" (13.9mm) | 1,000,000 Cycles | -25°C ~ 85°C | Lead free / RoHS Compliant | - | - | - | - |
MS0850506F020V1A SWITCH SNAP ACTION LIMIT Basic / Snap Action Switches 5A 125/250VAC SPDT Right Angle PCB Pin E-Switch | 10 | ¥5.62 | - | 270 | SPDT | 125V | On-Mom | 5A (AC) | Bulk | 0.161" (4.1mm) | Lever, Leaf | Through Hole, Right Angle | 8gf | 20gf | PC Pin | MS | 50,000 Cycles | 0.547" (13.9mm) | 1,000,000 Cycles | -25°C ~ 85°C | Lead free / RoHS Compliant | - | - | - | - |

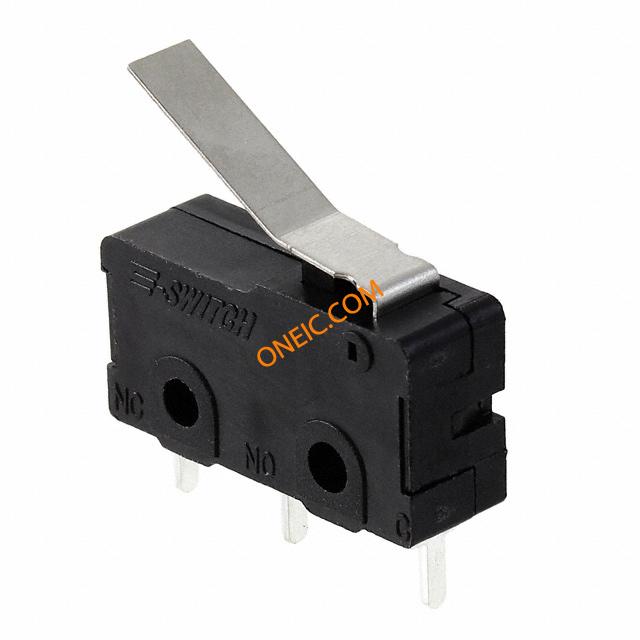

 MS0850506F035P1A SWITCH SNAP ACTION LIMIT Basic / Snap Action Switches 5A 125/250VAC SPDT PCB Pin E-Switch | 26 | ¥8.78 | - | 270 | SPDT | 125V | On-Mom | 5A (AC) | Bulk | 0.161" (4.1mm) | Lever, Leaf | Through Hole | 20gf | 35gf | PC Pin | MS | 50,000 Cycles | 0.547" (13.9mm) | 1,000,000 Cycles | -25°C ~ 85°C | Lead free / RoHS Compliant | - | - | - | 270 |
MS0850506F035P1C SWITCH SNAP ACTION LIMIT Basic / Snap Action Switches 5A 125/250VAC SPSTNO PCB Pin E-Switch | 10 | ¥5.62 | - | 270 | SPST-NO | 125V | Off-Mom | 5A (AC) | Bulk | 0.161" (4.1mm) | Lever, Leaf | Through Hole | 20gf | 35gf | PC Pin | MS | 50,000 Cycles | 0.547" (13.9mm) | 1,000,000 Cycles | -25°C ~ 85°C | Lead free / RoHS Compliant | - | - | - | - |
