LXD120 power supplies - external/internal (off-board) 系列
Excelsys Technologies Ltd.120W LED电源，具有可调电流和AC/DC兼容性
Excelsys Technologies 的 LXD120 电源供应系列是一款适用于需要高达120W功率的应用的多功能解决方案。这些单元因其既能外部使用也能内部使用的特性而备受瞩目，使其能够适应各种系统设计。如果您正在从事需要对LED供电进行精确控制的项目，那么这些电源供应器非常适合。它们提供可调电流设置，这对于精细调节光输出并确保在不同照明场景中的一致性能至关重要。
值得注意的是，LXD120 具有AC/DC兼容性。这一特性使得该电源供应器可以在线供电系统和电池供电系统中无缝使用，提供了根据应用需求的灵活性。当工程师需要一个可以无缝处理两种输入类型的可靠电源时，往往会选择这种电源供应器。另一个实用的好处是其模块化设计，这简化了将其集成到现有系统中的过程，无需重新设计整个电源分配网络。总体而言，LXD120 系列在性能和灵活性之间取得了平衡，使其成为需要精确度和适应性的LED照明应用的理想选择。

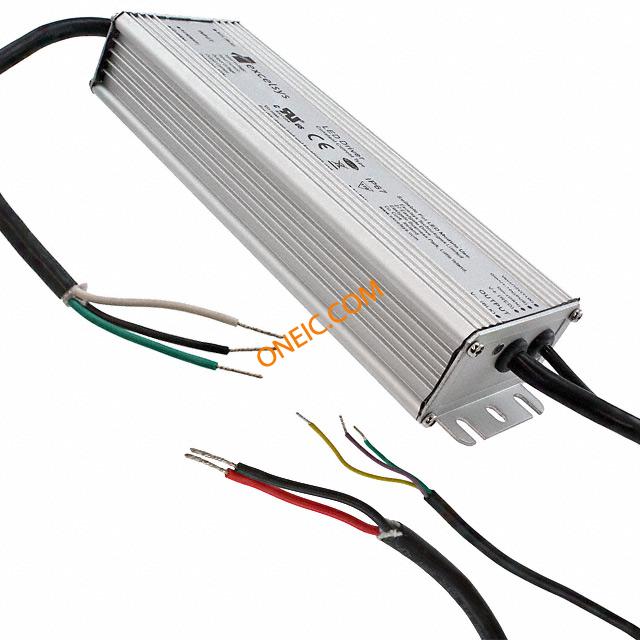

系列图片（1 张）
文档与媒体
常见问答
LXD120 power supplies - external/internal (off-board) - 型号列表
共 13 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准包装数量 | 认证机构 | 调光方式 | 效率 | 功率（瓦） | 输出电流 | 输出数量 | 隔离电压 | 最小输入电压 | 重量 | 安装类型 | 尺寸/外形 | 端接样式 | 类型 | 产品特性 | 拓扑 | 额定等级 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 10 | 1: ¥597.924 | - | 1 | CE, cULus, EN | Analog | 91% | 120W | 450mA | 1 | 3.75kV (3750V) | 160 ~ 266 V | 2.3 lbs (1kg) | Chassis Mount | 8.70" L x 2.66" W x 1.46" H (221.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OVP, SCP | AC DC Converter | IP67 | -35°C ~ 65°C |
| 10 | 1: ¥683.264 | - | 1 | CE, cULus, EN | Analog | 91% | 120W | 700mA | 1 | 3.75kV (3750V) | 103 ~ 171 V | 2.3 lbs (1kg) | Chassis Mount | 8.70" L x 2.66" W x 1.46" H (221.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OVP, SCP | AC DC Converter | IP67 | -35°C ~ 65°C |
| 21 | 1: ¥683.264 | - | 1 | CE, cULus, EN | Analog | 90.5% | 120W | 1.05A | 1 | 3.75kV (3750V) | 68 ~ 114 V | 2.3 lbs (1kg) | Chassis Mount | 8.70" L x 2.66" W x 1.46" H (221.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OVP, SCP | AC DC Converter | IP67 | -35°C ~ 65°C |
POWER SUPPLY LED 120W 1400MA DIM LED SUPPLY CC AC/DC 52-86V 1.4A Excelsys Technologies Ltd | 100 | 1: ¥597.924 | - | 1 | CE, cULus, EN | Analog | 90.5% | 120W | 1.4A | 1 | 3.75kV (3750V) | 52 ~ 86 V | 2.3 lbs (1kg) | Chassis Mount | 8.70" L x 2.66" W x 1.46" H (221.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OVP, SCP | AC DC Converter | IP67 | -35°C ~ 65°C |
POWER SUPPLY LED 120W 3500MA DIM LED SUPPLY CC AC/DC 20-34V 3.5A Excelsys Technologies Ltd | 10 | 1: ¥597.924 | - | 1 | CE, cULus, EN | Analog | 90% | 120W | 3.5A | 1 | 3.75kV (3750V) | 20 ~ 34 V | 2.3 lbs (1kg) | Chassis Mount | 8.70" L x 2.66" W x 1.46" H (221.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OVP, SCP | AC DC Converter | IP67 | -35°C ~ 65°C |
| 10 | 10: ¥683.2844 | - | 1 | CE, cULus, EN | Analog | 91% | 120W | 350mA | 1 | 3.75kV (3750V) | 206 ~ 343 V | 2.3 lbs (1kg) | Chassis Mount | 8.70" L x 2.66" W x 1.46" H (221.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OVP, SCP | AC DC Converter | IP67 | -35°C ~ 65°C |
POWER SUPPLY LED 120W 1750MA DIM LED SUPPLY CC AC/DC 41-68V 1.75A Excelsys Technologies Ltd | 10 | 10: ¥683.2844 | - | 1 | CE, cULus, EN | Analog | 90.5% | 120W | 1.75A | 1 | 3.75kV (3750V) | 41 ~ 68 V | 2.3 lbs (1kg) | Chassis Mount | 8.70" L x 2.66" W x 1.46" H (221.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OVP, SCP | AC DC Converter | IP67 | -35°C ~ 65°C |
POWER SUPPLY LED 120W 2100MA DIM LED SUPPLY CC AC/DC 34-57V 2.1A Excelsys Technologies Ltd | 10 | 10: ¥683.2844 | - | 1 | CE, cULus, EN | Analog | 90.5% | 120W | 2.1A | 1 | 3.75kV (3750V) | 34 ~ 57 V | 2.3 lbs (1kg) | Chassis Mount | 8.70" L x 2.66" W x 1.46" H (221.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OVP, SCP | AC DC Converter | IP67 | -35°C ~ 65°C |
POWER SUPPLY LED 120W 2450MA DIM LED SUPPLY CC AC/DC 29-49V 2.45A Excelsys Technologies Ltd | 10 | 10: ¥683.2844 | - | 1 | CE, cULus, EN | Analog | 90.5% | 120W | 2.45A | 1 | 3.75kV (3750V) | 29 ~ 49 V | 2.3 lbs (1kg) | Chassis Mount | 8.70" L x 2.66" W x 1.46" H (221.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OVP, SCP | AC DC Converter | IP67 | -35°C ~ 65°C |
POWER SUPPLY LED 120W 2800MA DIM LED SUPPLY CC AC/DC 26-43V 2.8A Excelsys Technologies Ltd | 10 | 10: ¥683.2844 | - | 1 | CE, cULus, EN | Analog | 90.5% | 120W | 2.8A | 1 | 3.75kV (3750V) | 26 ~ 43 V | 2.3 lbs (1kg) | Chassis Mount | 8.70" L x 2.66" W x 1.46" H (221.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OVP, SCP | AC DC Converter | IP67 | -35°C ~ 65°C |
POWER SUPPLY LED 120W 3150MA DIM LED SUPPLY CC AC/DC 23-38V 3.15A Excelsys Technologies Ltd | 10 | 10: ¥683.2844 | - | 1 | CE, cULus, EN | Analog | 90% | 120W | 3.15A | 1 | 3.75kV (3750V) | 23 ~ 38 V | 2.3 lbs (1kg) | Chassis Mount | 8.70" L x 2.66" W x 1.46" H (221.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OVP, SCP | AC DC Converter | IP67 | -35°C ~ 65°C |
POWER SUPPLY LED 120W 4200MA DIM LED SUPPLY CC AC/DC 17-28V 4.2A Excelsys Technologies Ltd | 10 | 10: ¥683.2844 | - | 1 | CE, cULus, EN | Analog | 90% | 120W | 4.2A | 1 | 3.75kV (3750V) | 17 ~ 28 V | 2.3 lbs (1kg) | Chassis Mount | 8.70" L x 2.66" W x 1.46" H (221.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OVP, SCP | AC DC Converter | IP67 | -35°C ~ 65°C |
POWER SUPPLY LED 120W 4900MA DIM LED SUPPLY CC AC/DC 14-24V 4.9A Excelsys Technologies Ltd | 10 | 10: ¥683.2844 | - | 1 | CE, cULus, EN | Analog | 90% | 120W | 4.9A | 1 | 3.75kV (3750V) | 14 ~ 24 V | 2.3 lbs (1kg) | Chassis Mount | 8.70" L x 2.66" W x 1.46" H (221.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OVP, SCP | AC DC Converter | IP67 | -35°C ~ 65°C |
