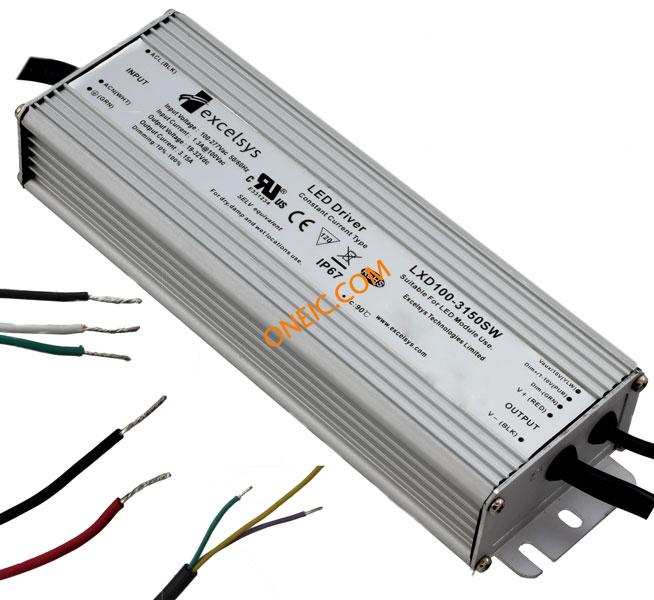

LXD100 power supplies - external/internal (off-board) 系列
Excelsys Technologies Ltd.100W 可调光LED电源供应器，提供多种电流和电压选项
Excelsys Technologies 的 LXD100 系列提供多种100W可调光LED电源，既支持电流输出又支持电压输出，具有很高的灵活性。这些电源专为各种照明应用设计，从通用照明到需要精确控制光输出的特殊灯具。
如果您正在从事涉及LED照明的项目，这些电源可以成为有价值的资产。它们支持多种配置，允许您根据具体需求定制电源。例如，它们可以处理不同电流和电压的组合，使其适用于内部和外部LED安装。
值得一提的是调光功能。这使得对光强度进行平滑控制变得至关重要，特别是在零售展示、舞台照明和汽车照明等应用中。工程师在需要可靠且灵活的LED照明系统解决方案时往往会选择这种电源。另一个实用的好处是其紧凑的尺寸，使其易于集成到紧凑或空间受限的设计中。
总体而言，LXD100 系列为LED照明项目提供了坚实的基础，兼顾了性能和灵活性之间的平衡。
系列图片（1 张）
文档与媒体
常见问答
LXD100 power supplies - external/internal (off-board) - 型号列表
共 12 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准包装数量 | 认证机构 | 调光方式 | 效率 | 功率（瓦） | 输出电流 | 输出数量 | 隔离电压 | 最小输入电压 | 重量 | 安装类型 | 尺寸/外形 | 端接样式 | 类型 | 产品特性 | 拓扑 | 额定等级 | 工作温度 | RoHS |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 10 | 10: ¥664.5028 | - | 1 | CE, cULus, EN | Analog | 91% | 100W | 350mA | 1 | 3.75kV (3750V) | 172 ~ 286 V | 2.3 lbs (1kg) | Chassis Mount | 8.70" L x 2.66" W x 1.46" H (221.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OVP, SCP | AC DC Converter | IP67 | -35°C ~ 65°C | - |
| 10 | 10: ¥664.5028 | - | 1 | CE, cULus, EN | Analog | 91% | 100W | 450mA | 1 | 3.75kV (3750V) | 132 ~ 222 V | 2.3 lbs (1kg) | Chassis Mount | 8.70" L x 2.66" W x 1.46" H (221.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OVP, SCP | AC DC Converter | IP67 | -35°C ~ 65°C | - |
| 10 | 10: ¥664.5028 | - | 1 | CE, cULus, EN | Analog | 90.5% | 100W | 700mA | 1 | 3.75kV (3750V) | 86 ~ 143 V | 2.3 lbs (1kg) | Chassis Mount | 8.70" L x 2.66" W x 1.46" H (221.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OVP, SCP | AC DC Converter | IP67 | -35°C ~ 65°C | - |
POWER SUPPLY LED 100W 1050MA DIM LED SUPPLY CC AC/DC 57-95V 1.05A Excelsys Technologies Ltd | 10 | 10: ¥664.5028 | - | 1 | CE, cULus, EN | Analog | 90.5% | 100W | 1.05A | 1 | 3.75kV (3750V) | 57 ~ 95 V | 2.3 lbs (1kg) | Chassis Mount | 8.70" L x 2.66" W x 1.46" H (221.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OVP, SCP | AC DC Converter | IP67 | -35°C ~ 65°C | - |
POWER SUPPLY LED 100W 1400MA DIM LED SUPPLY CC AC/DC 43-71V 1.4A Excelsys Technologies Ltd | 10 | 10: ¥664.5028 | - | 1 | CE, cULus, EN | Analog | 90.5% | 100W | 1.4A | 1 | 3.75kV (3750V) | 43 ~ 71 V | 2.3 lbs (1kg) | Chassis Mount | 8.70" L x 2.66" W x 1.46" H (221.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OVP, SCP | AC DC Converter | IP67 | -35°C ~ 65°C | - |
POWER SUPPLY LED 100W 1750MA DIM LED SUPPLY CC AC/DC 34-57V 1.75A Excelsys Technologies Ltd | 10 | 10: ¥664.5028 | - | 1 | CE, cULus, EN | Analog | 90.5% | 100W | 1.75A | 1 | 3.75kV (3750V) | 34 ~ 57 V | 2.3 lbs (1kg) | Chassis Mount | 8.70" L x 2.66" W x 1.46" H (221.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OVP, SCP | AC DC Converter | IP67 | -35°C ~ 65°C | - |
POWER SUPPLY LED 100W 2100MA DIM LED SUPPLY CC AC/DC 29-48V 2.1A Excelsys Technologies Ltd | 10 | 10: ¥664.5028 | - | 1 | CE, cULus, EN | Analog | 90.5% | 100W | 2.1A | 1 | 3.75kV (3750V) | 29 ~ 48 V | 2.3 lbs (1kg) | Chassis Mount | 8.70" L x 2.66" W x 1.46" H (221.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OVP, SCP | AC DC Converter | IP67 | -35°C ~ 65°C | - |
POWER SUPPLY LED 100W 2450MA DIM LED SUPPLY CC AC/DC 25-41V 2.45A Excelsys Technologies Ltd | 10 | 10: ¥664.5028 | - | 1 | CE, cULus, EN | Analog | 90.5% | 100W | 2.45A | 1 | 3.75kV (3750V) | 25 ~ 41 V | 2.3 lbs (1kg) | Chassis Mount | 8.70" L x 2.66" W x 1.46" H (221.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OVP, SCP | AC DC Converter | IP67 | -35°C ~ 65°C | - |
POWER SUPPLY LED 100W 2800MA DIM LED SUPPLY CC AC/DC 22-36V 2.8A Excelsys Technologies Ltd | 10 | 10: ¥664.5028 | - | 1 | CE, cULus, EN | Analog | 90% | 100W | 2.8A | 1 | 3.75kV (3750V) | 22 ~ 36 V | 2.3 lbs (1kg) | Chassis Mount | 8.70" L x 2.66" W x 1.46" H (221.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OVP, SCP | AC DC Converter | IP67 | -35°C ~ 65°C | - |
 POWER SUPPLY LED 100W 3150MA DIM LED SUPPLY CC AC/DC 19-32V 3.15A Excelsys Technologies Ltd | 10 | 1: ¥506.94 | - | 1 | CE, cULus, EN | Analog | 90% | 100W | 3.15A | 1 | 3.75kV (3750V) | 19 ~ 32 V | 2.3 lbs (1kg) | Chassis Mount | 8.70" L x 2.66" W x 1.46" H (221.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OVP, SCP | AC DC Converter | IP67 | -35°C ~ 65°C | Lead free / RoHS Compliant |
POWER SUPPLY LED 100W 3570MA DIM LED SUPPLY CC AC/DC 17-28V 3.57A Excelsys Technologies Ltd | 10 | 10: ¥664.5028 | - | 1 | CE, cULus, EN | Analog | 90% | 100W | 3.57A | 1 | 3.75kV (3750V) | 17 ~ 28 V | 2.3 lbs (1kg) | Chassis Mount | 8.70" L x 2.66" W x 1.46" H (221.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OVP, SCP | AC DC Converter | IP67 | -35°C ~ 65°C | - |
POWER SUPPLY LED 100W 4200MA DIM LED SUPPLY CC AC/DC 14-24V 4.2A Excelsys Technologies Ltd | 10 | 10: ¥664.5028 | - | 1 | CE, cULus, EN | Analog | 90% | 100W | 4.2A | 1 | 3.75kV (3750V) | 14 ~ 24 V | 2.3 lbs (1kg) | Chassis Mount | 8.70" L x 2.66" W x 1.46" H (221.0mm x 67.5mm x 37.0mm) | Wire Leads | Constant Current | OVP, SCP | AC DC Converter | IP67 | -35°C ~ 65°C | - |
