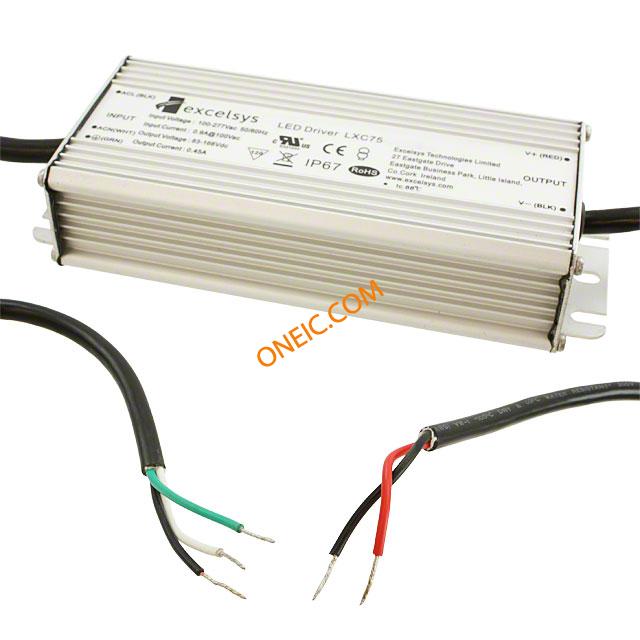

LXC75 power supplies - external/internal (off-board) 系列型号列…

Excelsys Technologies 的 LXC75 电源供应系列是一款多功能的 75W LED 电源供应产品线，适用于需要精确电流和电压调节的各种应用。这些电源供应有外部和内部两种配置，工程师可以根据具体需求和集成要求进行选择。

如果您正在从事 LED 照明项目，特别是涉及较小阵列或模块化设计的项目，这些电源供应非常适合。它们提供了多种输出选项的灵活性，适用于不同类型的 LED，从高亮度白光 LED 到 RGB LED。外部配置的优势在于可以方便地远离敏感组件，减少电磁干扰（EMI）。

值得一提的是，这些单元的紧凑尺寸使其非常适合空间受限的应用。此外，内部配置可以无缝集成到整体设计中，最大限度地减少对外部电缆和连接器的需求。当工程师需要可靠且可定制的电源解决方案而不牺牲性能或效率时，往往会选用这种配置。75W 的额定功率确保这些电源供应能够处理从小型到中型 LED 阵列的各种负载。

制造商零件编号	库存	价格	产品类别	标准包装数量	认证机构	效率	功率（瓦）	输出电流	输出数量	隔离电压	最小输入电压	重量	安装类型	尺寸/外形	端接样式	类型	产品特性	拓扑	额定等级	工作温度	最大功率	供电电压	最大额定电流	直流输入电压（最大）	直流输入电压（最小）	尺寸	系列
LXC75-1400SW POWER SUPPLY LED 75W 1400MA LED SUPPLY CC AC/DC 27-54V 1.4A Excelsys Technologies Ltd	10	10: ¥534.7112	-	1	CE, cULus, EN	90%	75W	1.4A	1	3kV (3000V)	27 ~ 54 V	1.7 lbs (771.1g)	Chassis Mount	6.97" L x 2.66" W x 1.46" H (177.0mm x 67.5mm x 37.0mm)	Wire Leads	Constant Current	OVP, SCP	AC DC Converter	IP67	-35°C ~ 70°C	-	-	-	-	-	-	-
LXC75-2100SW POWER SUPPLY LED 75W 2100MA LED SUPPLY CC AC/DC 18-36V 2.1A Excelsys Technologies Ltd	2500	2500: ¥20.3225	-	1	CE, cULus, EN	89%	75W	2.1A	1	3kV (3000V)	18 ~ 36 V	1.7 lbs (771.1g)	Chassis Mount	6.97" L x 2.66" W x 1.46" H (177.0mm x 67.5mm x 37.0mm)	Wire Leads	Constant Current	OVP, SCP	AC DC Converter	IP67	-35°C ~ 70°C	-	-	-	-	-	-	-
LXC75-2800SW POWER SUPPLY LED 75W 2800MA LED SUPPLY CC AC/DC 13-27V 2.8A Excelsys Technologies Ltd	10	10: ¥534.7112	-	1	CE, cULus, EN	89%	75W	2.8A	1	3kV (3000V)	13 ~ 27 V	1.7 lbs (771.1g)	Chassis Mount	6.97" L x 2.66" W x 1.46" H (177.0mm x 67.5mm x 37.0mm)	Wire Leads	Constant Current	OVP, SCP	AC DC Converter	IP67	-35°C ~ 70°C	-	-	-	-	-	-	-
LXC75-3750SW POWER SUPPLY LED 75W 3750MA LED SUPPLY CC AC/DC 10-20V 3.75A Excelsys Technologies Ltd	10	10: ¥534.7112	-	1	CE, cULus, EN	88%	75W	3.75A	1	3kV (3000V)	10 ~ 20 V	1.7 lbs (771.1g)	Chassis Mount	6.97" L x 2.66" W x 1.46" H (177.0mm x 67.5mm x 37.0mm)	Wire Leads	Constant Current	OVP, SCP	AC DC Converter	IP67	-35°C ~ 70°C	-	-	-	-	-	-	-
LXC75-5000SW POWER SUPPLY LED 75W 5000MA LED SUPPLY CC AC/DC 7-15V 5A Excelsys Technologies Ltd	10	10: ¥534.7112	-	1	CE, cULus, EN	88%	75W	5A	1	3kV (3000V)	7 ~ 15 V	1.7 lbs (771.1g)	Chassis Mount	6.97" L x 2.66" W x 1.46" H (177.0mm x 67.5mm x 37.0mm)	Wire Leads	Constant Current	OVP, SCP	AC DC Converter	IP67	-35°C ~ 70°C	-	-	-	-	-	-	-

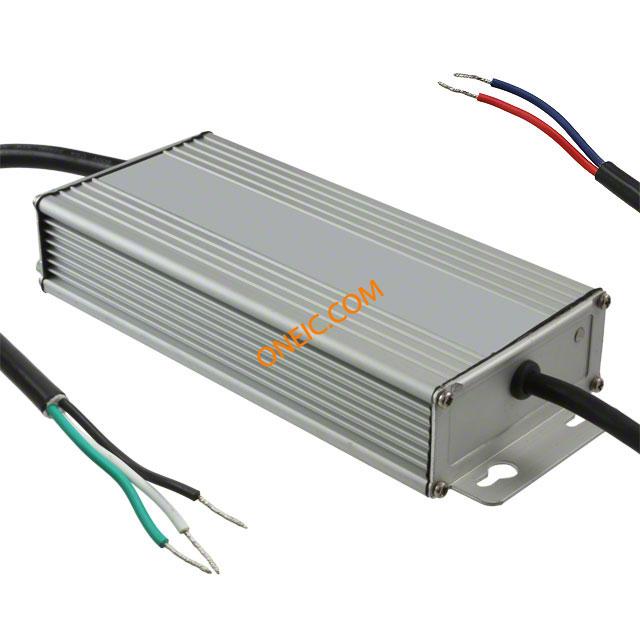

LXC75-0350SH POWER SUPPLY LED 75W 350MA LED SUPPLY CC AC/DC 107-214V Excelsys Technologies Ltd	10	1: ¥771.392	-	5	CE, cULus, EN	87%	75W	350mA	1	3.75kV (3750V)	107 ~ 214 V	2.3 lbs (1kg)	Chassis Mount	8.74" L x 3.46" W x 1.54" H (222.0mm x 88.0mm x 39.0mm)	Wire Leads	Constant Current	OTP, OVP, SCP	AC DC Converter	IP67	-35°C ~ 70°C	-	-	-	-	-	-	-
LXC75-0400SH POWER SUPPLY LED 75W 400MA Excelsys Technologies Ltd	0		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
LXC75-0700SH POWER SUPPLY LED 75W 700MA LED SUPPLY CC AC/DC 53-107V Excelsys Technologies Ltd	98	1: ¥403.376	-	5	CE, cULus, EN	86%	75W	700mA	1	3.75kV (3750V)	53 ~ 107 V	2.3 lbs (1kg)	Chassis Mount	8.74" L x 3.46" W x 1.54" H (222.0mm x 88.0mm x 39.0mm)	Wire Leads	Constant Current	OTP, OVP, SCP	AC DC Converter	IP67	-35°C ~ 70°C	-	-	-	-	-	-	-
LXC75-1050SH POWER SUPPLY LED 75W 1050MA LED SUPPLY CC AC/DC 36-72V 1.05A Excelsys Technologies Ltd	10	1: ¥771.392	-	5	CE, cULus, EN	87%	75W	1.05A	1	3.75kV (3750V)	36 ~ 72 V	2.3 lbs (1kg)	Chassis Mount	8.74" L x 3.46" W x 1.54" H (222.0mm x 88.0mm x 39.0mm)	Wire Leads	Constant Current	OTP, OVP, SCP	AC DC Converter	IP67	-35°C ~ 70°C	-	-	-	-	-	-	-
LXC75-0350SW POWER SUPPLY LED 75W 350MA LED SUPPLY CC AC/DC 107-214V Excelsys Technologies Ltd	10	1: ¥534.684	-	1	CE, cULus, EN	92%	75W	350mA	1	3kV (3000V)	107 ~ 214 V	1.7 lbs (771.1g)	Chassis Mount	6.97" L x 2.66" W x 1.46" H (177.0mm x 67.5mm x 37.0mm)	Wire Leads	Constant Current	OVP, SCP	AC DC Converter	IP67	-35°C ~ 70°C	75W	107 ~ 214 V	350mA	305VAC	90VAC	6.97" L x 2.66" W x 1.46" H (177.0mm x 67.5mm x 37.0mm)	LXC75
LXC75-0450SW POWER SUPPLY LED 75W 450MA LED SUPPLY CC AC/DC 83-166V Excelsys Technologies Ltd	10	1: ¥534.684	-	1	CE, cULus, EN	92%	75W	450mA	1	3kV (3000V)	83 ~ 166 V	1.7 lbs (771.1g)	Chassis Mount	6.97" L x 2.66" W x 1.46" H (177.0mm x 67.5mm x 37.0mm)	Wire Leads	Constant Current	OVP, SCP	AC DC Converter	IP67	-35°C ~ 70°C	-	-	-	-	-	-	-
LXC75-1050SW POWER SUPPLY LED 75W 1050MA LED SUPPLY CC AC/DC 36-72V 1.05A Excelsys Technologies Ltd	52	1: ¥403.376	-	1	CE, cULus, EN	90%	75W	1.05A	1	3kV (3000V)	36 ~ 72 V	1.7 lbs (771.1g)	Chassis Mount	6.97" L x 2.66" W x 1.46" H (177.0mm x 67.5mm x 37.0mm)	Wire Leads	Constant Current	OVP, SCP	AC DC Converter	IP67	-35°C ~ 70°C	-	-	-	-	-	-	-
LXC75-0700SW POWER SUPPLY LED 75W 700MA LED SUPPLY CC AC/DC 54-108V Excelsys Technologies Ltd	10	1: ¥534.684	-	1	CE, cULus, EN	91%	75W	700mA	1	3kV (3000V)	54 ~ 108 V	1.7 lbs (771.1g)	Chassis Mount	6.97" L x 2.66" W x 1.46" H (177.0mm x 67.5mm x 37.0mm)	Wire Leads	Constant Current	OVP, SCP	AC DC Converter	IP67	-35°C ~ 70°C	-	-	-	-	-	-	-
LXC75-1400SH POWER SUPPLY LED 75W 400MA LED SUPPLY CC AC/DC 26-53V 1.4A Excelsys Technologies Ltd	10	1: ¥771.392	-	5	CE, cULus, EN	87%	75W	1.4A	1	3.75kV (3750V)	26 ~ 53 V	2.3 lbs (1kg)	Chassis Mount	8.74" L x 3.46" W x 1.54" H (222.0mm x 88.0mm x 39.0mm)	Wire Leads	Constant Current	OTP, OVP, SCP	AC DC Converter	IP67	-35°C ~ 70°C	-	-	-	-	-	-	-
